Digi-Sense Traceable® Hot Wire Anemometer with RS-232 Output and Calibration
Images are for representation only. Actual product may differ in size, color or options.
Digi-Sense Traceable® Hot Wire Anemometer with RS-232 Output and NIST Traceable® Calibration Certificate (each)

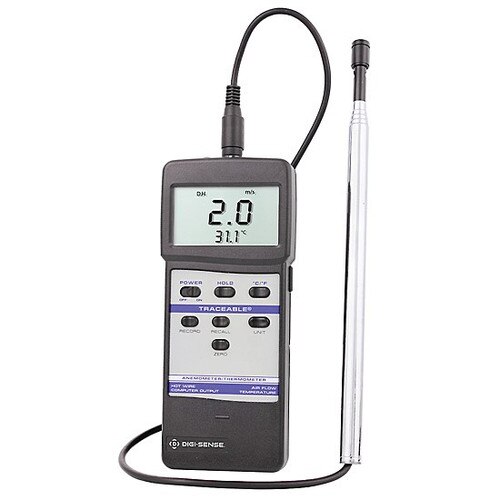

This Hot Wire Anemometer with two miniature glass-bead thermistors provides greater precision at low air velocities. Telescope probe expands from 9-1/2 inches to 3 feet for use in hard-to-reach places. No moving-parts unit eliminates friction errors caused by rotating vanes. It’s ideal for clean rooms and environmental tests.
Displays air speed in five ranges
Features five measuring ranges in air velocity: 0.2 to 20.0 meters per second (resolution 0.1), 0.7 to 72.0 kilometers per hour (resolution 0.1), 40 to 3940 feet per minute (resolution 1), 0.5 to 44.7 miles per hour (resolution 0.1), and 0.4 to 38.8 knots (nautical miles per hour) (resolution 0.1). Accuracy is ±(1% full scale plus one digit). The unit also displays temperatures in °F and °C from 32.0 to 122.0°F and 0.0 to 50.0°C with a resolution of 0.1°. Accuracy is ±0.8°C (1.5°F).
Downloads data to computer or data logger
Computer output allows the anemometer to be connected to a computer or data logger for monitoring results. Memory function recalls the highest and lowest readings. A Data HOLD button freezes the display to capture readings. Display simultaneously shows air speed and temperature.
Comes ready to use
To assure accuracy, an individually serial-numbered Traceable® Certificate is supplied to indicate traceability to standards provided by NIST (National Institute of Standards and Technology). Unit is supplied complete with dual thermistors probe, 40-inch cable, Traceable® Certificate, 6 AAA batteries, and computer output. Size is 7 x 3 x 1-1/4 inches and weight is 9-1/2 ounces. Replacement battery Cat. No. 1105.
This unit features computer output. To utilize this feature, connect the unit to a PC with an accessory Data Acquisition System. (SOLD SEPARATELY)
This Hot Wire Anemometer with two miniature glass-bead thermistors provides greater precision at low air velocities. Telescope probe expands from 9-1/2 inches to 3 feet for use in hard-to-reach places. No moving-parts unit eliminates friction errors caused by rotating vanes. It’s ideal for clean rooms and environmental tests.
Displays air speed in five ranges
Features five measuring ranges in air velocity: 0.2 to 20.0 meters per second (resolution 0.1), 0.7 to 72.0 kilometers per hour (resolution 0.1), 40 to 3940 feet per minute (resolution 1), 0.5 to 44.7 miles per hour (resolution 0.1), and 0.4 to 38.8 knots (nautical miles per hour) (resolution 0.1). Accuracy is ±(1% full scale plus one digit). The unit also displays temperatures in °F and °C from 32.0 to 122.0°F and 0.0 to 50.0°C with a resolution of 0.1°. Accuracy is ±0.8°C (1.5°F).
Downloads data to computer or data logger
Computer output allows the anemometer to be connected to a computer or data logger for monitoring results. Memory function recalls the highest and lowest readings. A Data HOLD button freezes the display to capture readings. Display simultaneously shows air speed and temperature.
Comes ready to use
To assure accuracy, an individually serial-numbered Traceable® Certificate is supplied to indicate traceability to standards provided by NIST (National Institute of Standards and Technology). Unit is supplied complete with dual thermistors probe, 40-inch cable, Traceable® Certificate, 6 AAA batteries, and computer output. Size is 7 x 3 x 1-1/4 inches and weight is 9-1/2 ounces. Replacement battery Cat. No. 1105.
| Air Velocity | Resolution |
| 0.2 to 20.0 meters per second | 0.1 m/sec. |
| 0.7 to 72.0 kilometers per hour | 0.1 km/hr |
| 40 to 3940 feet per minute | 1 ft/min |
| 0.5 to 44.7 miles per hour | 0.1 m/h |
| 0.4 to 38.8 knots (nautical miles per hour) | 0.1 knots |
| 32.0 to 122.0°F (0.0 to 50.0°C) | 0.1° °C and °F |
This unit features computer output. To utilize this feature, connect the unit to a PC with an accessory Data Acquisition System. (SOLD SEPARATELY)
| Product Type: | Anemometer Thermometer |
| Brand: | Digi-Sense |
| Class: | Hot Wire |
| Temperature Range: | 32.0 to 122.0°F / 0.0 to 50.0°C |
| Temperature Resolution: | 0.1° |
| Temperature Accuracy: | ±0.8°C (1.5°F) |
| Digital or Analog: | Digital |
| Overall Dimensions: | 7 x 3 x 1-1/4 inches |
| Includes: | Traceable® Certificate, dual thermistors probe, 40-inch cable, 6 AAA batteries, and computer output |
| Notes: | HOLD button |
