Traceable Digital Programmable Plug-In Timer Controller with a NIST Traceable Calibration Certificate; 115 VAC

(0)No Reviews yet
$39.64 $45.30
4 – 9$38.51
10 +$37.37
SKU: 5090 (CC)
Item Number: 5090
Model Number: 5090 (08645-15)
Manufacturer: Control Company
Brand: Traceable
MPN: 5090
Condition: New

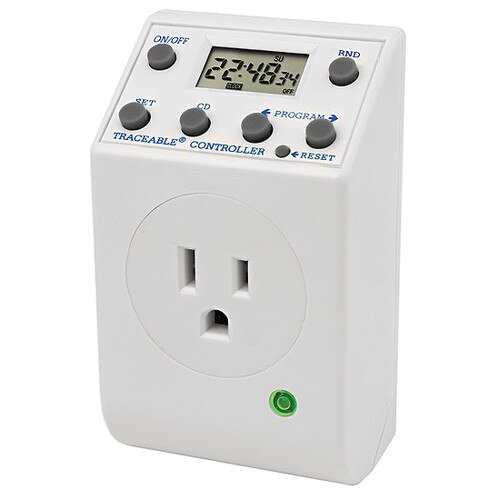

Traceable® Outlet Digital Controller which has up to 196 per Week On/Off Programs with a NIST Traceable® Calibration Certificate (each)

Versatile and economical controller may be programmed to turn equipment on and off at any minute of any day. A fail-safe memory permits programming 14 different switchings per day. They may be allocated over four separate weekly programs for up to 196 switchings per week. Random function automatically turns the controller on and off at random intervals.

Easy to program
Schedule an entire week with the press of a few buttons. Switches located on the front panel control the entire operation.

Set intervals from 1 minute to 168 hours
The Outlet Controller will turn equipment on and off in intervals as short as 1 minute or as long as 168 hours. Turn an instrument on today and off a week later. The AM/PM day programs allow repeating the same cycle every day of the week, weekdays only, weekends only, or any selected days.

Battery backup
A manual override permits equipment to be switched on or off without disturbing the program. Program and clock times are maintained by a backup battery in the event of an electrical outage. Brilliant, 1/2-inch-high LCD shows the time-of-day, day, and event number.

Traceable to NIST for accuracy
To assure accuracy an individually serial-numbered Traceable® Certificate is provided from our ISO 17025 calibration laboratory accredited by A2LA. It indicates traceability to standards provided by NIST (National Institute of Standards and Technology). CSA-and NTRL-C rated unit controls equipment to 125 VAC, 50/60 Hz, 15 amps, 1850 watts with a timing accuracy of 0.01%. Supplied with two 1.5-volt batteries. High-impact ABS plastic case is 2 x 4 x 3-1/2 inches. Weight is 5-1/2 ounces. Replacement battery Cat. No. 1039.

Product Type: Digital Controller
Brand: Traceable
Class: Digital Controller, 196 per Week On/Off Programs
Accuracy: 0.01%
Housing: ABS plastic
Max. Controlled Time Settings: 196 per Week
Display: LCD with 0.5" / 13mm high digits
Operating Modes: Controls up to 125 VAC, 50/60 Hz, 15 amps, 1850 watts
Overall Dimensions: 2 x 4 x 3-1/2 inches
Includes: Traceable® Certificate, two 1.5-volt batteries, Instruction Manual.
Notes: Random on/off
