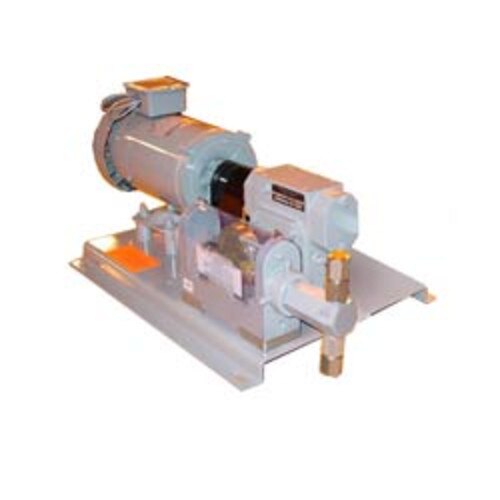

A&F Machine V-5 Piston Metering Pump, Simplex.

(0)No Reviews yet
$2,552.00 $3,190.00
2 +$2,392.50
SKU: AFM-1218-8
Item Number: AFM-1218-8
Model Number: 1218-8
Manufacturer: A&F Machine Products
Brand: A&F Machine Products
MPN: 1218-8
Condition: New


A&F Machine V-5 Piston Metering Pump, Simplex.
1.44 - 7.2 GPD (gallons per day), 0.06 - 0.3 GPH (gallons per hour), 0.13 - 0.640 ounces per minute
5.4 - 27.0 LPD (liters per day), 0.228 - 1.14 LPH (liters per hour), 3.78 - 18.9 milliliters per minute
Output rated at 1000 PSI (68.9 BAR) maximum pressure.
1/4" diameter piston.
Fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 18 SPM (strokes per minute).
It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required.
Connections: 1/4" NPT Female.
Motor Type: NEMA 56 Foot Mount Motor Connection (Coupling Drive).
Drive Motor: 8 = 1/2 Horsepower 120/240VAC, TEFC, 60Hz 1Phase
Wet End Materials: Carbon Steel
Includes: pressure relief valve and instruction manual.

Product Type: Piston Metering Pump, Mechanically Driven
Brand: A&F Machine Products
Product Line: V-5
Class: Simplex
Max Flow (GPH): 0.3
Max Flow (GPD): 7.2
Max Pressure (PSI): 1000
Max Viscosity (CPS): 3,000
Max Strokes per Minute: 18
Flow Control: Manual stroke length adjustment (0 to 100%)
Turn Down Ratio: 5 : 1
Head/Fittings: CS (Carbon Steel)
Valve Balls: S6 (316 SS)
Valve / Seat / O-Ring: Nickel Plated Copper Seal
Motor: 1/2 HP 120/240VAC, 1PH, TEFC, 60Hz, 56 Frame
Connections: 1/4" FNPT
Power Supply: 120/240 VAC, 60 Hz, 1 Phase
Operating Modes: Manual
Net Weight: 95 lbs
Overall Dimensions: 23 x 14.125 x 11.5 inches
Includes: Pressure Relief Valve and Owners Manual
