AFM-20860-18
Images are for representation only. Actual product may differ in size, color or options.

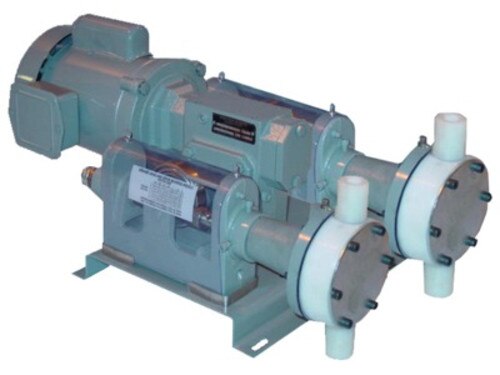

A&F Machine V-10-H Hydraulic Diaphragm Metering Pump, Duplex.
Per Head 67.2 - 336.0 GPD (gallons per day), 2.8 - 14.0 GPH (gallons per hour), 6.0 - 30.0 ounces per minute
254.4 - 1272.0 LPD (liters per day), 10.6 - 53.0 LPH (liters per hour), 176.66 - 883.3 milliliters per minute
Per Head output rated at 100 PSI (6.89 BAR) maximum pressure.
Per Head 1" diameter hydraulic piston and Teflon diaphragm.
Per Head: fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 60 SPM (strokes per minute).
This model separates the piston from the chemical by a diaphragm allowing the pump to be used for aggressive chemicals.
Connections: 3/8" NPT Female.
Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
Drive Motor: 18 = 1/2 Horsepower 115/230VAC TEFC, 50/60Hz 1Phase.
Wet End Materials: Polyethylene.
Includes: pressure relief valve (2) and instruction manual.
Per Head 67.2 - 336.0 GPD (gallons per day), 2.8 - 14.0 GPH (gallons per hour), 6.0 - 30.0 ounces per minute
254.4 - 1272.0 LPD (liters per day), 10.6 - 53.0 LPH (liters per hour), 176.66 - 883.3 milliliters per minute
Per Head output rated at 100 PSI (6.89 BAR) maximum pressure.
Per Head 1" diameter hydraulic piston and Teflon diaphragm.
Per Head: fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 60 SPM (strokes per minute).
This model separates the piston from the chemical by a diaphragm allowing the pump to be used for aggressive chemicals.
Connections: 3/8" NPT Female.
Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
Drive Motor: 18 = 1/2 Horsepower 115/230VAC TEFC, 50/60Hz 1Phase.
Wet End Materials: Polyethylene.
Includes: pressure relief valve (2) and instruction manual.
| Product Type: | Diaphragm Metering Pump, Mechanically Driven |
| Brand: | A&F Machine Products |
| Product Line: | V-10-H |
| Class: | Duplex |
| Max Flow (GPH): | 14 |
| Max Flow (GPD): | 336 |
| Max Pressure (PSI): | 100 |
| Max Viscosity (CPS): | 2,000 |
| Max Strokes per Minute: | 60 |
| Flow Control: | Manual stroke length adjustment (0 to 100%) |
| Turn Down Ratio: | 5 : 1 |
| Head/Fittings: | Polyethylene |
| Valve Balls: | Ceramic |
| Diaphragm: | Teflon |
| Valve / Seat / O-Ring: | Viton |
| Motor: | 1/2 HP 115/230VAC, 1PH, TEFC, 50/60Hz, 56C Frame |
| Connections: | 3/8" FNPT |
| Power Supply: | 115/230 VAC, 50/60 Hz, 1 Phase |
| Operating Modes: | Manual |
| Net Weight: | 115 lbs |
| Overall Dimensions: | 23 x 14 x 11 inches |
| Includes: | Pressure Relief Valves and Owners Manual |
