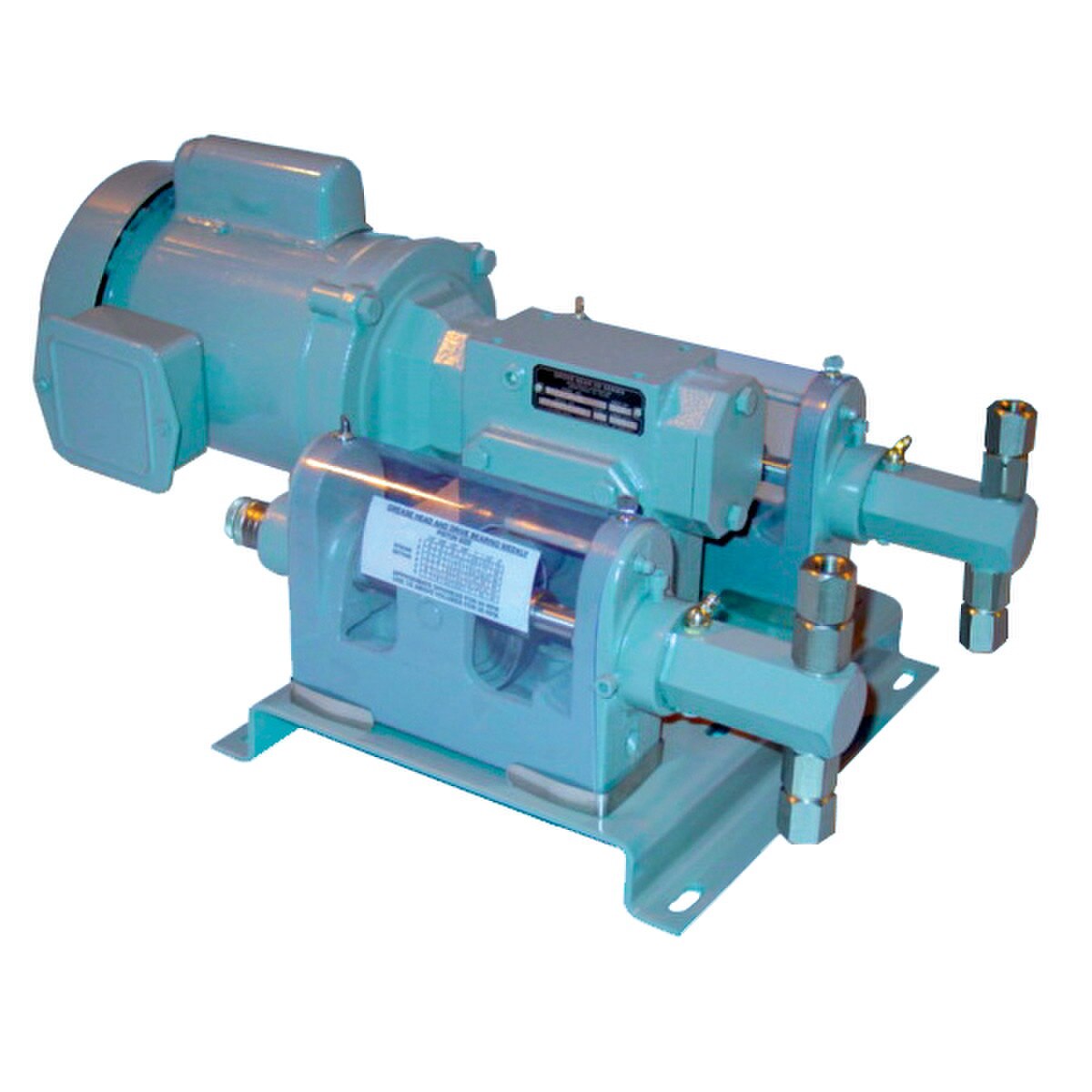

A&F Machine V-10 Piston Metering Pump, Duplex

(0)No Reviews yet
$3,672.00 $4,590.00
2 +$3,442.50
SKU: AFM-2518-13-SS
Item Number: AFM-2518-13-SS
Model Number: 2518-13-SS
Manufacturer: A&F Machine Products
Brand: A&F Machine Products
MPN: 2518-13-SS
Condition: New


A&F Machine V-10 Piston Metering Pump, Duplex.
Per Head 8.64 - 43.2 GPD (gallons per day), 0.36 - 1.8 GPH (gallons per hour), 0.768 - 3.84 ounces per minute
32.7 - 163.5 LPD (liters per day), 1.36 - 6.8 LPH (liters per hour), 22.72 - 113.6 milliliters per minute
Per Head output rated at 1000 PSI (68.9 BAR) maximum pressure.
Per Head 5/8" diameter piston.
Per Head: fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 18 SPM (strokes per minute).
It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required.
Connections: 1/4" NPT Female.
Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
Drive Motor: 13 = 1/2 Horsepower 120/240VAC, EPFC, 60Hz 1Phase
Wet End Materials: SS = 303 Stainless Steel
Includes: pressure relief valve (2) and instruction manual.

Product Type: Piston Metering Pump, Mechanically Driven
Brand: A&F Machine Products
Product Line: V-10
Class: Duplex
Max Flow (GPH): 1.8
Max Flow (GPD): 43.2
Max Pressure (PSI): 1000
Max Viscosity (CPS): 3,000
Max Strokes per Minute: 18
Flow Control: Manual stroke length adjustment (0 to 100%)
Turn Down Ratio: 5 : 1
Head/Fittings: SS (303 SS)
Valve Balls: S6 (316 SS)
Valve / Seat / O-Ring: Nickel Plated Copper Seal
Motor: 1/2 HP 120/240VAC, 1PH, EPFC, 60Hz, 56C Frame
Connections: 1/4" FNPT
Power Supply: 120/240 VAC, 60 Hz, 1 Phase
Operating Modes: Manual
Overall Dimensions: 24 x 12 x 11 inches
Includes: Pressure Relief Valves and Owners Manual
