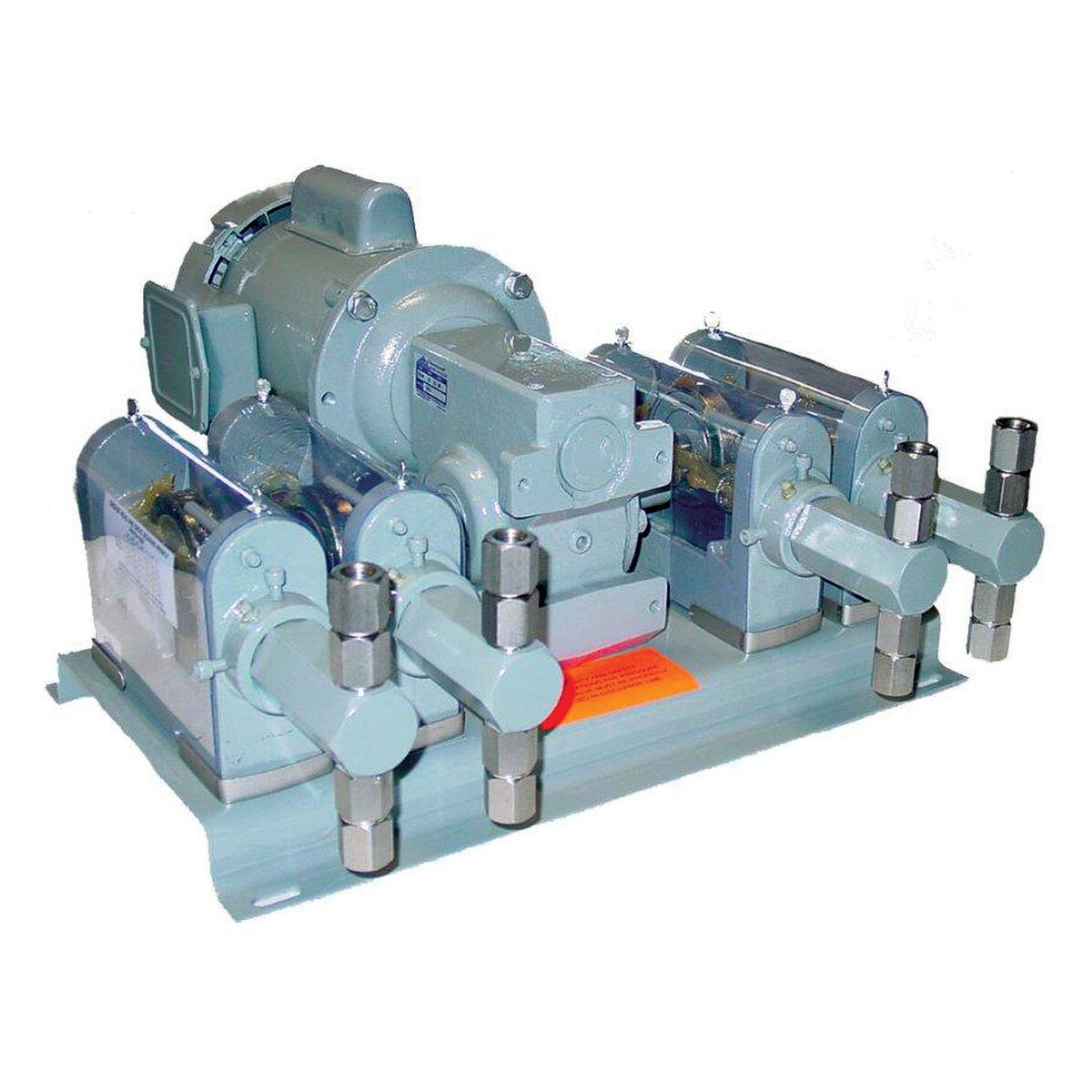

A&F Machine V-10 Piston Metering Pump, Quad

(0)No Reviews yet
$7,075.75 $9,130.00
2 +$6,619.25
SKU: AFM-4560-12V-S6
Item Number: AFM-4560-12V-S6
Model Number: 4560-12V-S6
Manufacturer: A&F Machine Products
Brand: A&F Machine Products
MPN: 4560-12V-S6
Condition: New


A&F Machine V-10 Piston Metering Pump, Quad.
Per Head 28.8 - 144.0 GPD (gallons per day), 1.2 - 6.0 GPH (gallons per hour), 2.56 - 12.8 ounces per minute
109.0 - 545.0 LPD (liters per day), 4.6 - 23.0 LPH (liters per hour), 75.8 - 379.0 milliliters per minute
Per Head output rated at 1000 PSI (68.9 BAR) maximum pressure.
Per Head 5/8" diameter piston.
Per Head: fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 60 SPM (strokes per minute).
It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry and related applications where a controlled volume of chemical treatment is required.
Connections: 1/4" NPT Female.
Motor Type: NEMA 56C Flange Mount Motor Connection (Direct Drive).
Drive Motor: 12V = 1/2 Horsepower 120/240VAC, 1PH, TEFC, 60Hz (no power cord)
Wet End Materials: S6 = 316 Stainless Steel
Includes: pressure relief valve (4) and instruction manual.

Product Type: Piston Metering Pump, Mechanically Driven
Brand: A&F Machine Products
Product Line: V-10
Class: Quadraplex
Max Flow (GPH): 6
Max Flow (GPD): 144
Max Pressure (PSI): 1000
Max Viscosity (CPS): 1,000
Max Strokes per Minute: 60
Flow Control: Manual stroke length adjustment (0 to 100%)
Turn Down Ratio: 5 : 1
Head/Fittings: S6 (316 SS)
Valve Balls: S6 (316 SS)
Valve / Seat / O-Ring: Nickel Plated Copper Seal
Motor: 1/2 HP 120/240VAC, 1PH, TEFC, 60Hz, 56C Frame
Connections: 1/4" FNPT
Power Supply: 120/240 VAC, 60 Hz, 1 Phase
Operating Modes: Manual
Net Weight: 140 lbs
Overall Dimensions: 24 x 19 x 11 inches
Includes: Pressure Relief Valves and Owners Manual
