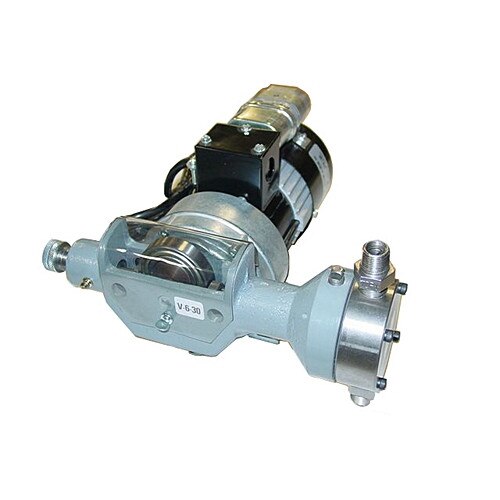

A&F Machine V-6 Diaphragm Metering Pump

(0)No Reviews yet
$965.25 $1,170.00
2 +$906.75
Item Number: AFM-V-6-6-SS
Model Number: V-6-6-SS
Manufacturer: A&F Machine Products
Brand: A&F Machine Products
MPN: V-6-6-SS
Condition: New


A&F Machine V-6 Diaphragm Metering Pump
0.6 - 3.0 GPD (gallons per day), 0.025 - 0.125 GPH (gallons per hour), 0.053 - 0.267 ounces per minute
2.3 - 11.5 LPD (liters per day), 0.094 - 0.47 LPH (liters per hour), 1.58 - 7.9 milliliters per minute
Output rated at 100 PSI (6.89 BAR) maximum pressure.
Fully adjustable stroke length control 0-100% (recommended minimum stroke length 20%). 6 SPM (strokes per minute).
Drive: 1/20 Horsepower, 120VAC, 60Hz Totally Enclosed Fan-Cooled Motor with 6' 3-wire US Plug.
Wet End Material: Cast iron body, 303 Stainless Steel pump head, Teflon diaphragm, ceramic valve balls, Viton valve seats, polyethylene check valves assemblies with 3/8" OD tubing connections.
Includes: Polyethylene foot valve, polyethylene injection nozzle assembly, 5' suction tubing, 5' discharge tubing, wall mount bracket and instruction manual.

This model is a V-6 Series Mini Pump with a single drive to one pump head. A compact unit the V-6 mini pump is designed for lighter metering applications. It is ideal for use in chemical feed to cooling towers and related applications where a controlled volume of extremely corrosive chemical treatment is required. The V-6 is a heavy duty hydraulic diaphragm metering pumps designed for trouble free operation with a minimum of maintenance. The pump end of the unit utilizes a precision inline machined casting insuring exact alignment of the drive mechanism and the piston head assembly, minimizing wear. The pump is driven by a continuous heavy duty oil filled speed reducer. The wet end of the pump is precision machined and utilizes a piston to displace oil which in turn flexes a diaphragm. The piston and ceramic ball check valves are places on the inlet and outlet of the pump wet end. The output of the pumps is varied from zero to maximum by manually adjusting the piston stroke length. V-6 mini pumps are prepackaged with a 1/20 Horsepower, 120VAC, Totally Enclosed Fan-Cooled, 60Hz, 1Phase gear drive motor.

Product Type: Diaphragm Metering Pump, Mechanically Driven
Brand: A&F Machine Products
Product Line: V-6
Class: Simplex
Max Flow (GPH): 0.12
Max Flow (GPD): 3
Max Pressure (PSI): 100
Max Viscosity (CPS): 1,000
Max Strokes per Minute: 6
Flow Control: Manual stroke length adjustment (0 to 100%)
Turn Down Ratio: 5 : 1
Head/Fittings: SS (303 SS)
Valve Balls: S6 (316 SS)
Diaphragm: Teflon
Valve / Seat / O-Ring: S6 (316 SS)
Motor: 1/20 HP 120VAC, 1PH, TEFC, 60Hz
Connections: 3/8" MNPT x 3/8" OD Tubing
Power Supply: 120 VAC, 60Hz
Operating Modes: Manual
Overall Dimensions: 10.5 x 11 x 6.5 inches
Includes: Foot Valve, Injection Nozle, Wall Mounting Bracket, Tubing and Owners Manual
