ATAGO® DR‑M2 Multi‑Wavelength Abbe Refractometer

ATAGO® DR‑M2 Multi‑Wavelength Abbe Refractometer

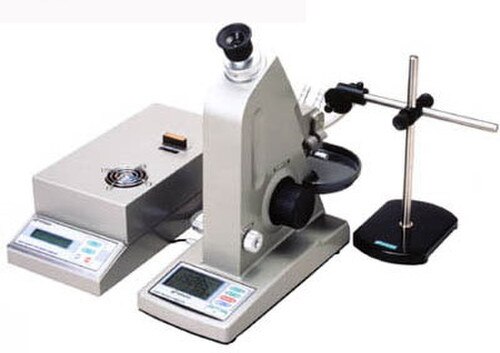

The ATAGO® DR‑M2 is a high‑precision multi‑wavelength Abbe refractometer engineered for advanced optical analysis, allowing measurement of refractive index or Abbe number (νd or νe) across wavelengths from 450 to 1,100 nm. The instrument digitally displays refractive index or Abbe number on a bright LCD panel, and measurement is performed by aligning the boundary line with the intersection of the crosshairs. The DR‑M2 is widely used in optical material development, resin formulation, lens manufacturing, and research laboratories requiring wavelength‑dependent refractive index evaluation. This model is also connectable to the optional Digital Printer DP‑AD(B) for streamlined documentation.

Key Features

• Multi‑wavelength refractive index and Abbe number measurement
• Digital LCD display for clear, stable readout
• Wide wavelength range from 450 to 1,100 nm using interference filters
• High‑accuracy optical system suitable for research and industrial QC
• Halogen lamp light source for stable illumination
• Optional Near Infrared Ray Viewer for measurements from 681 to 1,100 nm
• Printer output compatible with DP‑AD(B) (optional)

More About This Item

The DR‑M2 is designed for applications requiring precise dispersion evaluation and wavelength‑specific refractive index measurement. Its multi‑wavelength capability allows detailed optical characterization of glass, films, resins, and specialty materials. The instrument supports stable temperature‑controlled measurement when used with a circulating constant water bath, ensuring repeatable results across the full wavelength range.

ATAGO refractometers are manufactured in Japan and known for exceptional optical quality, mechanical durability, and long‑term reliability in demanding laboratory environments.

Technical Specifications

• Model: DR‑M2
• Catalog Number: 1410
• Scale: Refractive index / Abbe number
• Range:
  Refractive index 1.3278 to 1.7379 (450 nm)
  Refractive index 1.3000 to 1.7100 (589 nm)
  Refractive index 1.2912 to 1.7011 (680 nm)
  Refractive index 1.2743 to 1.6840 (1,100 nm)
• Accuracy: ±0.0002 refractive index (with test piece at 500–650 nm)
• Minimum Indication: Refractive index 0.0001 / Abbe number 0.1
• Measurement Temperature: 5 to 50°C (with circulating constant water bath)
• Display Panel: LCD
• Light Source: Halogen lamp
• Output: Printer output for DP‑AD(B) (optional)
• Wavelength Range: 450 to 1,100 nm (interference filters)
  Optional Near Infrared Ray Viewer required for 681 to 1,100 nm
• Dimensions & Weight:
  Refractometer: 13 × 29 × 31 cm, 6.0 kg
  Light source unit: 15 × 33 × 11 cm, 3.2 kg

Included Accessories

• Main unit
• Instruction manual

The DR‑M2 is ideal for laboratories and production environments requiring precise, multi‑wavelength refractive index measurement. Its advanced optical system, digital display, and optional printer connectivity make it a trusted instrument for optical research, materials development, and dispersion analysis.

This item is NON-REFUNDABLE/NON-RETURNABLE once the order is placed. Please call if you are unsure this item will work for you
