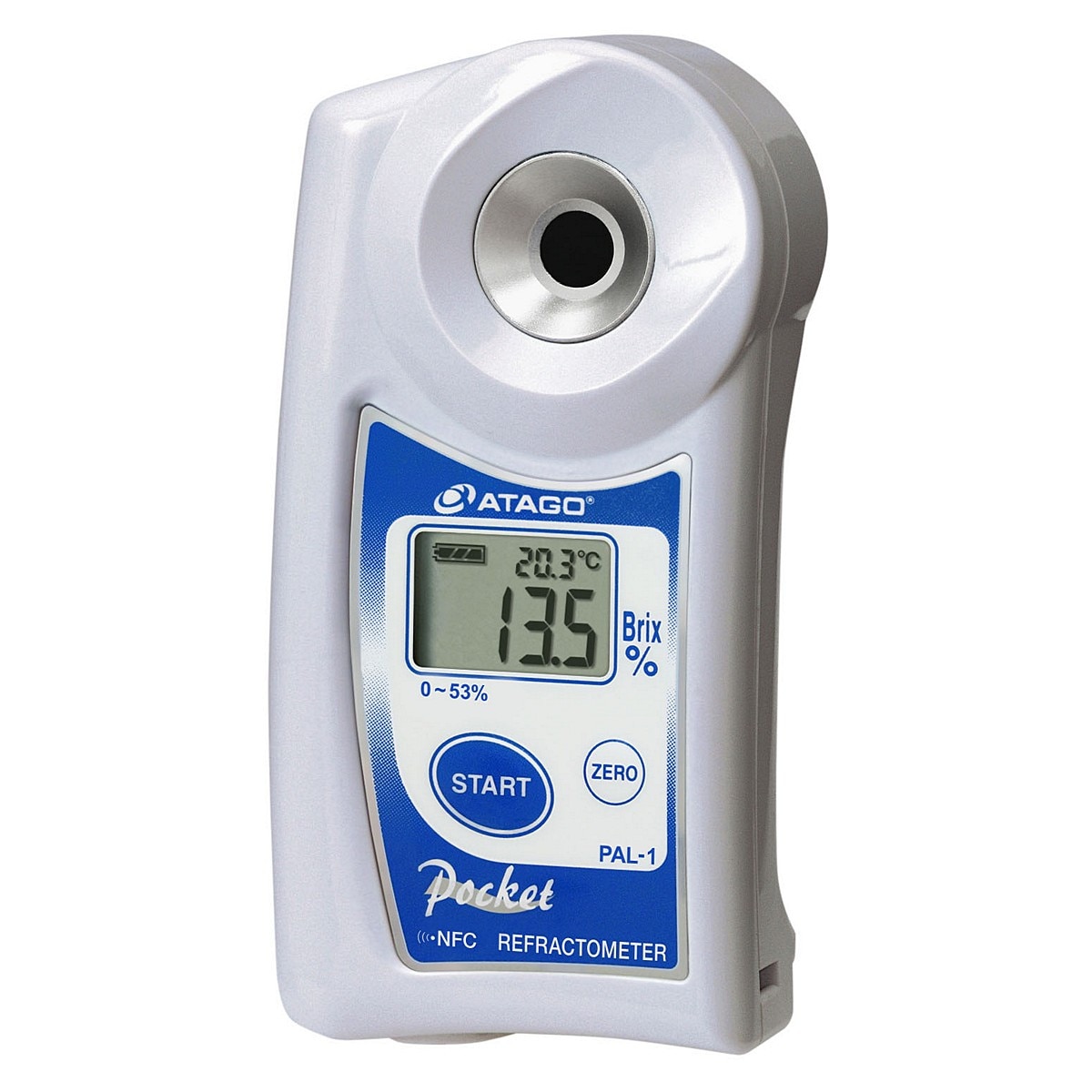

Atago Digital Pocket Refractometer, PAL-1
Images are for representation only. Actual product may differ in size, color or options.
Atago Digital Pocket Refractometer, PAL-1
The Atago PAL-1 (Catalog No. 3810) is a compact, handheld digital refractometer designed for quick and accurate Brix measurements across a wide range of liquids. With a measurement range of 0.0–53.0% Brix and automatic temperature compensation (ATC), it delivers reliable results in just 3 seconds. The PAL-1 features an IP65-rated body for water resistance, a digital LCD display, and ergonomic design for one-handed operation. Ideal for food, beverage, agricultural, and industrial applications.
Specifications
- Model: PAL-1
- Part Number: 3810
- Measurement Range: 0.0–53.0% Brix
- Resolution: 0.1% Brix
- Accuracy: ±0.2% Brix
- Temperature Range: 9.0–99.9°C
- Temperature Compensation: Automatic (ATC)
- Ingress Protection: IP65 (dustproof and water-resistant)
- Display: Digital LCD
- Power: 2 × AAA batteries
- Dimensions: 10.9 × 5.5 × 3.1 cm
- Weight: 100 g
Features
- Fast 3-second digital readout
- Automatic temperature compensation for accurate results
- Compact and ergonomic design for field or lab use
- Water-resistant IP65-rated housing for easy cleaning
- Simple calibration with distilled water
Applications
- Fruit juice and beverage testing
- Food processing and quality control
- Brewing and fermentation monitoring
- Agricultural and ecological fieldwork
- Industrial fluid concentration analysis
This item is NON-REFUNDABLE/NON-RETURNABLE once the order is placed. Please call if you are unsure this item will work for you
| Product Type: | Refractometer |
| Brand: | ATAGO |
| Product Line: | PAL |
| Grade: | Digital Pocket |
| Range: | 0.0 - 53.0% Brix |
| Resolution: | 0.1% |
| Accuracy: | ±0.2% |
| Temperature Range: | 9.0 to 99.9°C |
| Temperature Resolution: | 0.1°C |
| Temperature Accuracy: | ±1°C |
| ATC: | Yes (10 to 100°C) |
| Operating Modes: | Displays both Brix and Temperature. |
| Overall Dimensions: | 5.5 x 3.1 x 10.9cm |

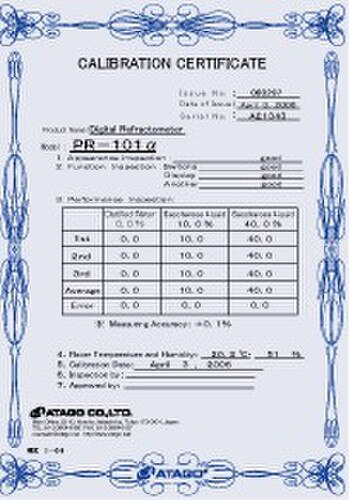

| Includes: | Protective storage case, 2 x AAA Batteries, serialized Calibration Report certificate, and owner's manual. |
to go to ATAGO web site for Instruction Manual pdf and/or Usage Instruction video.
