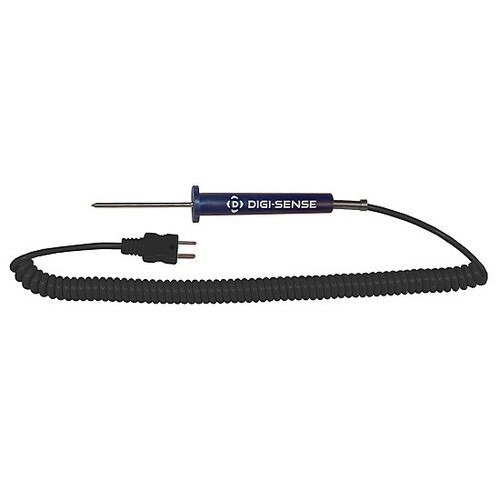

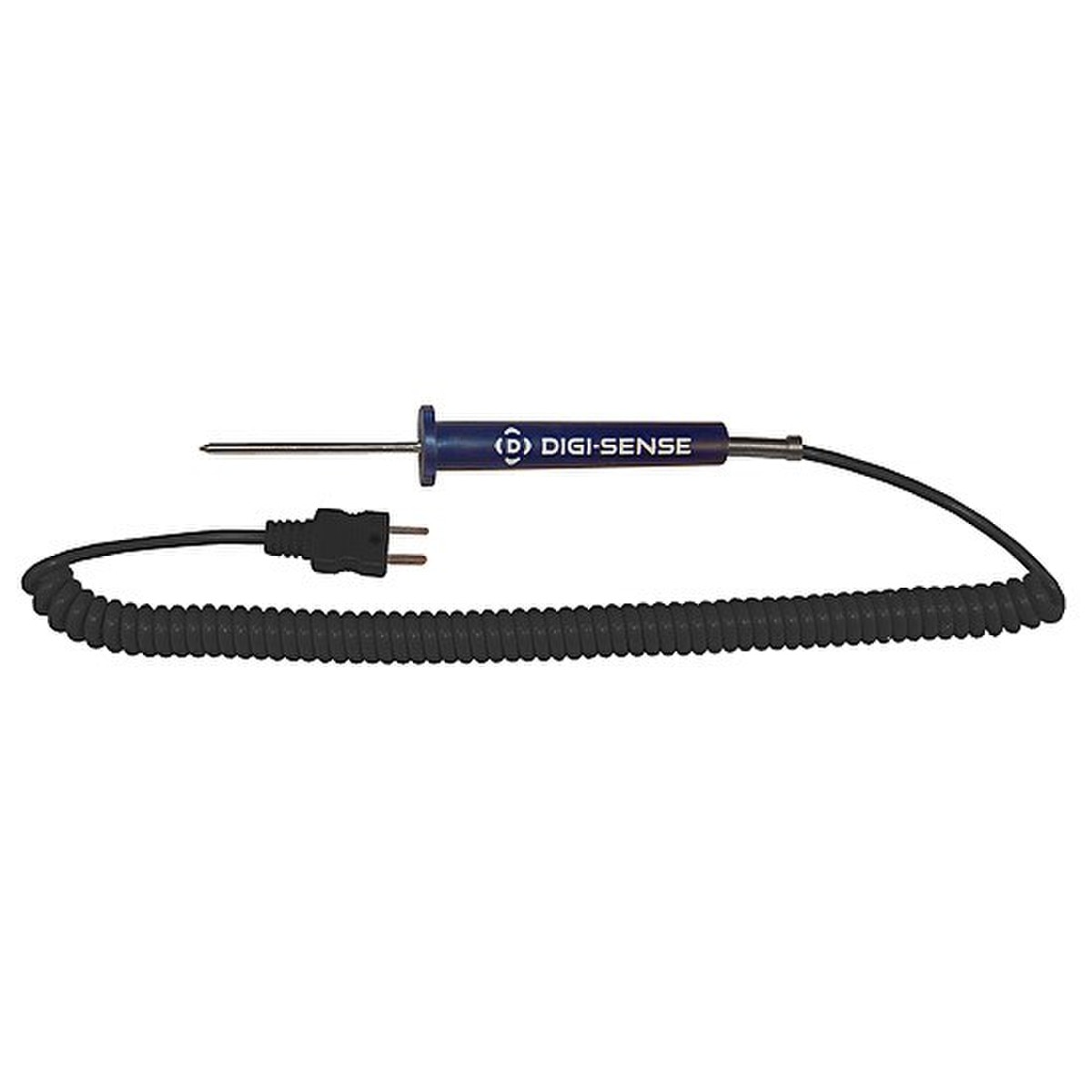

Cole-Parmer Compact Penetration Thermocouple Probe, 2.5" L, Grounded; Type J
Images are for representation only. Actual product may differ in size, color or options.
Digi-Sense Type-J Thermocouple Probe, Compact Penetration, 2.5 inch L x 0.125 inch Dia, Grounded Junction, 5 feet Cable, Mini ANSI Connector (each)
Penetration Probes Are Designed For Soft and Semi-Soft Materials
Warning: This product is not approved or intended for, and should not be used for medical, clinical, surgical or other patient oriented applications.
Penetration Probes Are Designed For Soft and Semi-Soft Materials
- Response Time: 2 seconds or greater
- Probe comes with PVC Handle
- Probe handles feature a strain relief spring that protects the cable connection against damage due to repeated flexing and tugging
- Each probe comes with color coded ANSI Mini-Connectors: type J-black
Warning: This product is not approved or intended for, and should not be used for medical, clinical, surgical or other patient oriented applications.
| Product Type: | Thermocouple Probe |
| Brand: | Cole-Parmer |
| Class: | Type-J |
| Grade: | Compact Penetration |
| Material: | 316 Stainless Steel, PVC |
| Temperature Range: | 32 to 300°F (0 to 148°C) |
| Temperature Accuracy: | ±5.9°F (3.3°C), or ±0.4% of reading above 32°F (0°C) |
| Connections: | Mini ANSI Connector |
| Probe Length: | 2.5 inches x 0.125 inch diameter |
| Cable Length: | 5 feet |
| Overall Dimensions: | Sheath: 2.5 inch Length x 0.125 inch diameter, Handle: 1.5 inch length |
| Notes: | Grounded Junction |
