Cole-Parmer Compact Penetration Thermocouple Probe, 2.5" L, Grounded; Type T

(0)No Reviews yet
$49.00 $56.00
QuantityPrice
1$49.00
4 +$47.60
SKU: CPI-08439-84
Item Number: CPI-08439-84
Model Number: 08439-84
Manufacturer: Oakton Instruments
Brand: Cole-Parmer
MPN: 08439-84
Condition: New

New

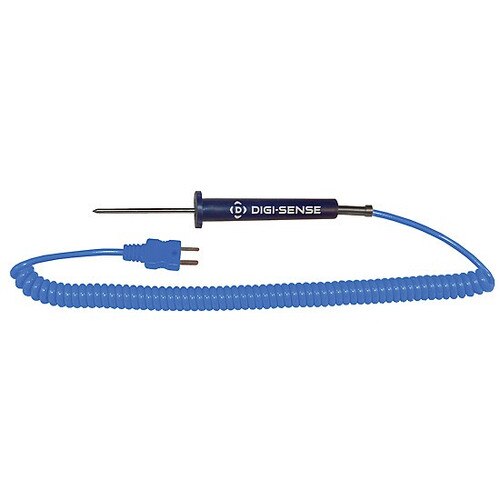

Digi-Sense Type-T Thermocouple Probe, Compact Penetration, 2.5 inch L x 0.125 inch Dia, Grounded Junction, 5 feet Cable, Mini ANSI Connector (each)

Penetration Probes Are Designed For Soft and Semi-Soft Materials

  • Response Time: 2 seconds or greater
  • Probe comes with PVC Handle
  • Probe handles feature a strain relief spring that protects the cable connection against damage due to repeated flexing and tugging
  • Each probe comes with color coded ANSI Mini-Connectors: type T-blue
Note: The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. PVC handles are rated to 200°F (93°C); Mini Connectors are rated to 392°F (200°C).

Warning: This product is not approved or intended for, and should not be used for medical, clinical, surgical or other patient oriented applications.


Product Type: Thermocouple Probe
Brand: Cole-Parmer
Class: Type-T
Grade: Compact Penetration
Material: 316 Stainless Steel, PVC
Temperature Range: -328 to 300°F (-200 to 148°C)
Temperature Accuracy: ±3.6°F (2.0°C), or ±0.4% of reading above 32°F (0°C); ±0.8% of reading below 32°F (0°C)
Connections: Mini ANSI Connector
Probe Length: 2.5 inches x 0.125 inch diameter
Cable Length: 5 feet
Overall Dimensions: Sheath: 2.5 inch Length x 0.125 inch diameter, Handle: 1.5 inch length
Notes: Grounded Junction
