CPI-08512-82
Images are for representation only. Actual product may differ in size, color or options.

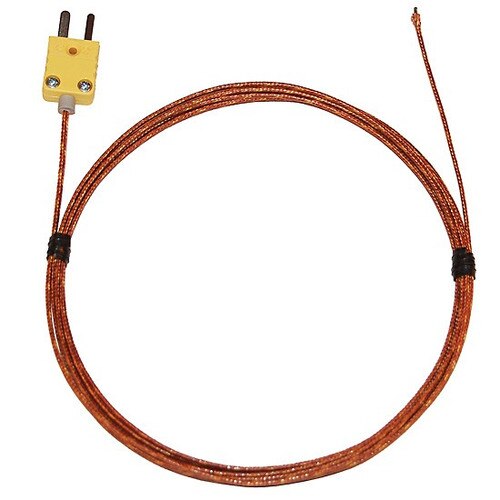

Digi-Sense Type-K Thermocouple Probe, Flexible Wire, 120 inch L x 0.081 Dia, Exposed Junction, 24 Ga Fiberglass Insulated, Mini ANSI Connector (each)
Flexible Fiberglass insulated wire used for high-temperature measurements
Flexible Fiberglass insulated wire used for high-temperature measurements
- Response Time: 0.5 seconds or greater
- All insulated-wire probes include straight insulated cable with no handle and feature ANSI color-coded mini connector: type K-yellow
| Product Type: | Thermocouple Probe |
| Brand: | Digi-Sense |
| Class: | Type-K |
| Grade: | Flexible Wire |
| Material: | Fiberglass Insulated Wire |
| Temperature Range: | -250 to 900°F (-150 to 482°C) |
| Temperature Accuracy: | ±3.0°F(1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F(2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F(4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater |
| Connections: | Mini ANSI Connector |
| Probe Length: | 120 inches x 0.081 inches diameter |
| Unit Size: | 24 Ga |
| Overall Dimensions: | Sheath: 120 inch length x 0.081 dia |
| Notes: | Exposed Junction |
