CPI-08516-85
Images are for representation only. Actual product may differ in size, color or options.

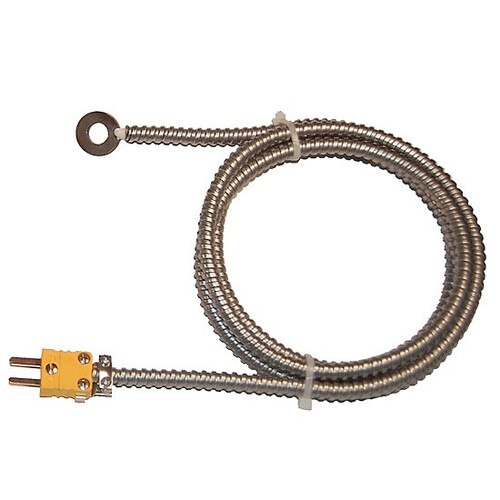

Digi-Sense Type-K Thermocouple Probe, Heavy-Duty Bolt-On, 0.62 inch OD x 0.28 inch ID, Grounded Junction, 5 feet SS Armored Fiberglass Cable, Mini ANSI Connector (each)
Heavy Duty Bolt-On probe for long term installation
Heavy Duty Bolt-On probe for long term installation
- Response Time: 3 seconds or greater
- Probe comes with a bolt on washer that is .62 inch OD and .28 inch ID for quick easy installation
- Once installed, the rugged design allows for continuous long term readings
- This probe is not recommended for damp or wet conditions
- Each probe comes with a color coded ANSI coiled cable: type K-yellow
| Product Type: | Thermocouple Probe |
| Brand: | Digi-Sense |
| Class: | Type-K |
| Grade: | Heavy-Duty Bolt-On |
| Material: | 304 Stainless Steel |
| Temperature Range: | 32 to 900°F (0 to 482°C) |
| Temperature Accuracy: | ±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater |
| Connections: | Mini ANSI Connector |
| Cable Length: | 5 feet |
| Overall Dimensions: | Washer: 0.62 inch OD x 0.28 inch ID |
| Notes: | Grounded Junction |
