Cole-Parmer Type-J, Std-Pen Probe; 4" L, Mini-Connector, .156 Dia, Grounded , 5ft Coil Cord

(0)No Reviews yet
$76.91 $87.90
4 +$74.72
SKU: CPI-08517-65
Item Number: CPI-08517-65
Model Number: 08517-65
Manufacturer: Oakton Instruments
Brand: Cole-Parmer
MPN: 08517-65
Condition: New

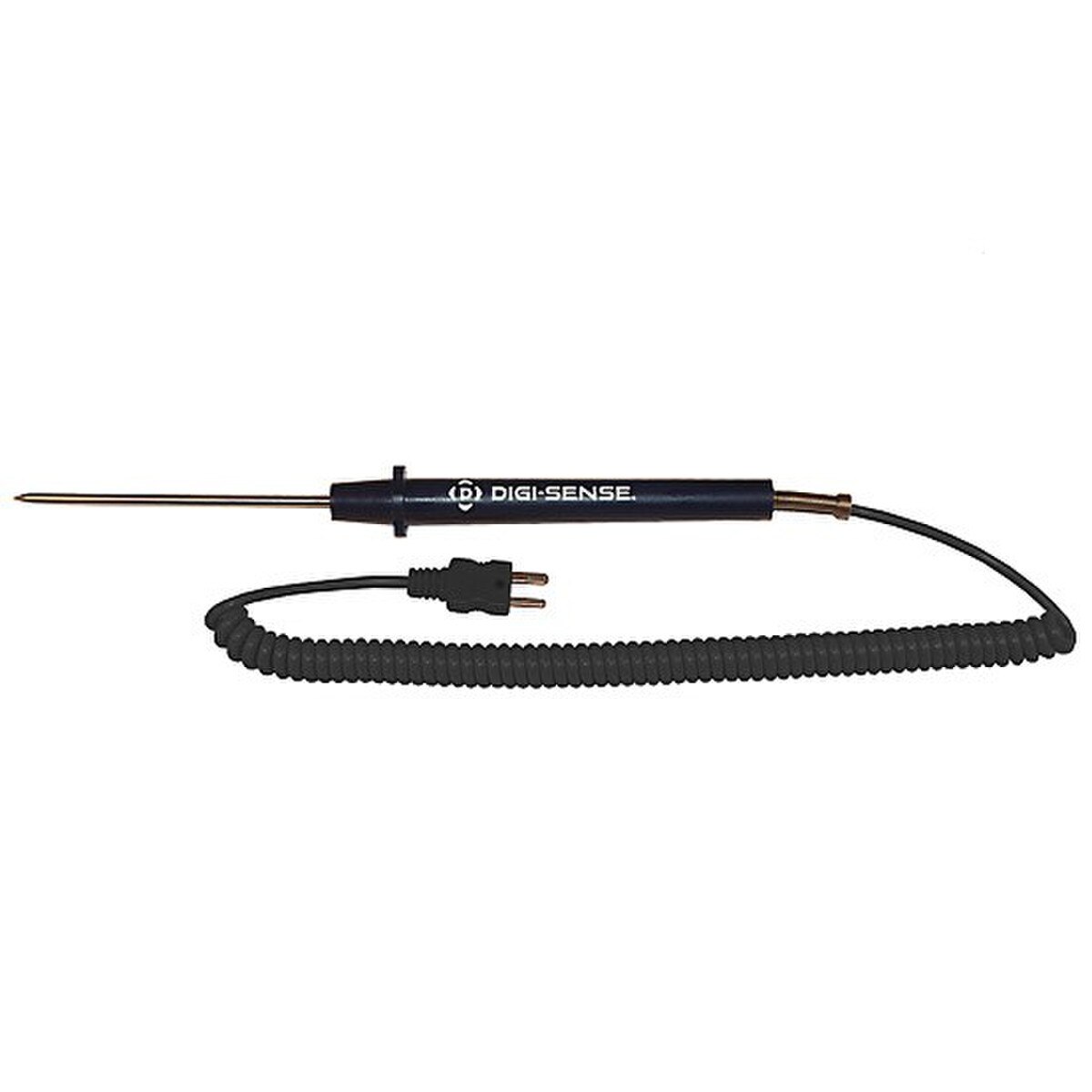

Digi-Sense Type-J Thermocouple Probe, Standard, 4 inch L x 0.156 inch Dia, Grounded Junction, 5 Feet Cable, Mini ANSI Connector (each)

General-Purpose Probes are designed for use with soft and semi-soft materials

  • Response Time: 2 seconds or greater
  • ABS handles provide a light weight design for ease of use along with durability
  • Probe handles feature a strain relief spring that protects the cable connection against damage due to repeated flexing and tugging
  • Each probe comes with color coded ANSI Mini-Connectors: type J-black
Note: The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); Mini Connectors are rated to 392°F (200°C).

Product Type: Thermocouple Probe
Brand: Cole-Parmer
Class: Type-J
Grade: Standard
Material: 304 Stainless Steel, ABS Plastic
Temperature Range: 32 to 400°F (0 to 204°C)
Temperature Accuracy: ±5.9°F (±3.3°C), or ±0.4% of reading above 32°F (0°C); ±4.0% of reading below 32°F (0°C)
Connections: Mini ANSI Connector
Probe Length: 4 inches x 0.156 inch diameter
Cable Length: 5 Feet
Overall Dimensions: Sheath: 4 inch length x 0.156 inch dia; Handle: 5.5 inch length
Notes: Grounded Junction
