CPI-08519-66
Images are for representation only. Actual product may differ in size, color or options.

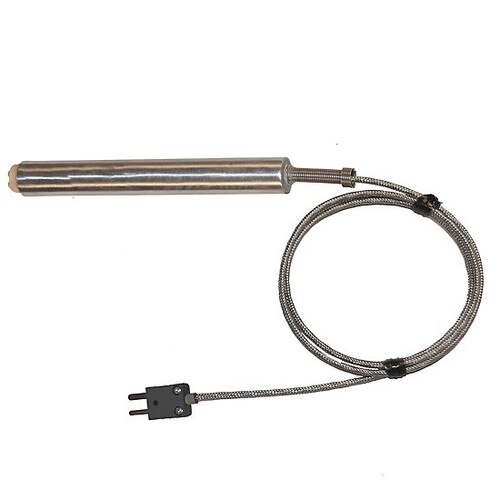

Digi-Sense Type-J Thermocouple Probe, Compact Surface, 4.75 inch L x 0.63 inch Dia, Exposed Junction, 5 feet Braided SS Cable, Mini ANSI Connector (each)
Use to monitor hot plates, furnaces, molds, or any other flat surface
Use to monitor hot plates, furnaces, molds, or any other flat surface
- Ideal for hard to reach places or lower temperature applications
- Response Time: 1.25 seconds or greater
- Each probe comes with color coded ANSI Mini-Connectors: type J-black
| Product Type: | Thermocouple Probe |
| Brand: | Digi-Sense |
| Class: | Type-J |
| Grade: | Compact Surface |
| Material: | Aluminum housing w/Ceramic, Aluminum |
| Temperature Range: | 32 to 1200°F (0 to 649°C) |
| Temperature Accuracy: | ±5.9°F (±3.3°C), or ±0.4% of reading above 32°F (0°C); ±4.0% of reading below 32°F (0°C) |
| Connections: | Mini ANSI Connector |
| Probe Length: | 4.75 inches x 0.63 inch diameter |
| Cable Length: | 5 feet |
| Pack Quantity: | 1 |
| Packaging: | each |
| Overall Dimensions: | Sheath: 4.75 inch length x 0.63 dia; Handle: 4.5 inch length |
| Notes: | Exposed Junction |
