CPI-08525-86
Images are for representation only. Actual product may differ in size, color or options.

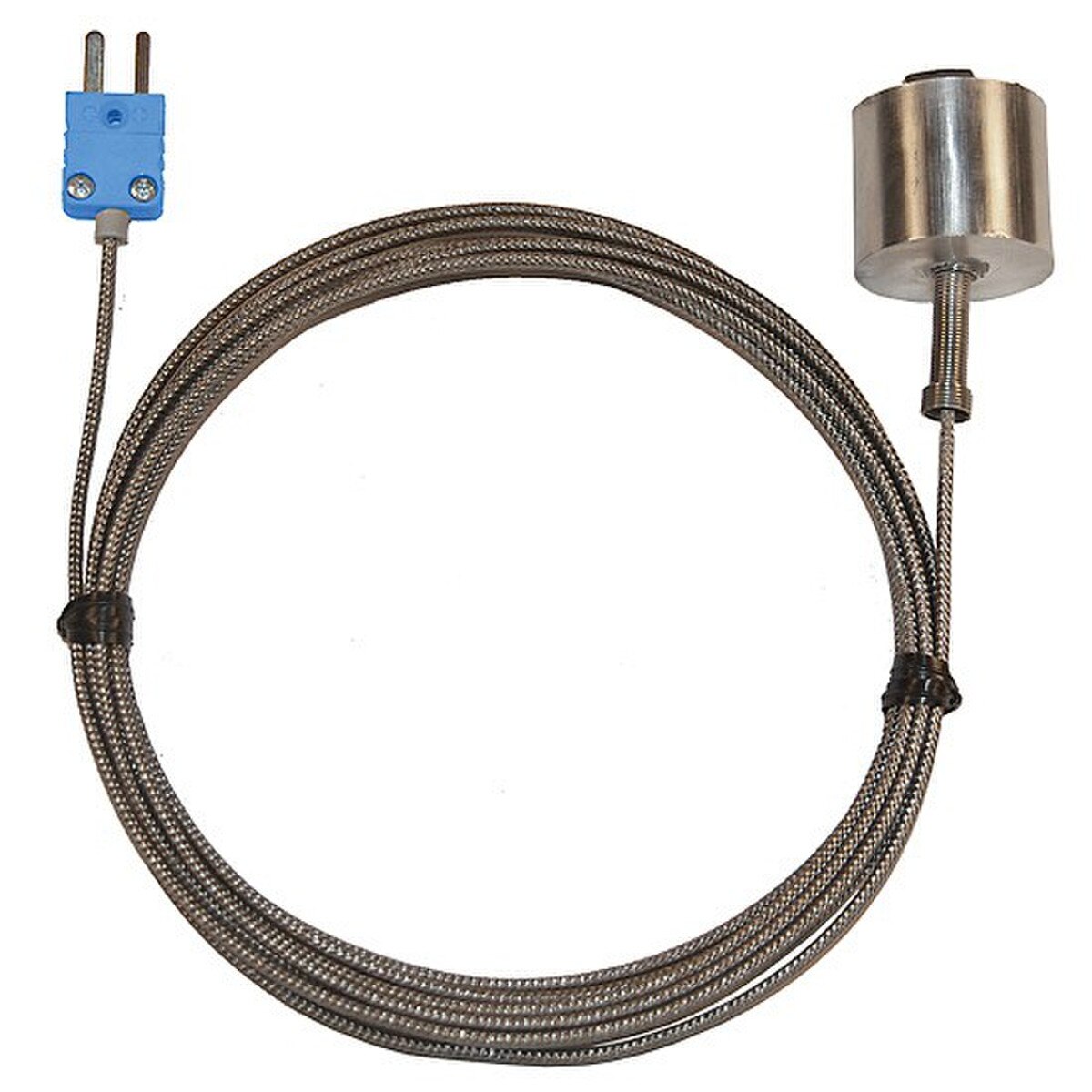

Digi-Sense Type-T Thermocouple Probe, Dropping / Magnetic, 1.5 inch L x 1 inch Dia, Exposed Junction, 10 feet SS Armored Fiberglass Cable, Mini ANSI Connector (each)
Magnetic probes are designed for monitoring a wide range of flat surfaces
Magnetic probes are designed for monitoring a wide range of flat surfaces
- Easily attach to any ferrous surface
- Ideal for long term installation
- Magnet strength is 15lbs max
- Response Time: 1.25 seconds or greater
- Each probe comes with a color coded ANSI Mini-Connectors: type T-blue
| Product Type: | Thermocouple Probe |
| Brand: | Digi-Sense |
| Class: | Type-T |
| Grade: | Dropping / Magnetic |
| Material: | Aluminum Housing |
| Temperature Range: | -328 to 500°F (-200 to 260°C) |
| Temperature Accuracy: | ±2.7°F (1.5°C), or ±0.4% of reading above 32°F (0°C); ±0.8% of reading below 32°F (0°C) |
| Connections: | Mini ANSI Connector |
| Probe Length: | 1.5 inches x 1 inch diameter |
| Cable Length: | 10 feet |
| Pack Quantity: | 1 |
| Packaging: | each |
| Overall Dimensions: | Sheath: 1.5 inch length x 1 inch dia |
| Notes: | Exposed Junction |
