CPI-93630-20
Images are for representation only. Actual product may differ in size, color or options.

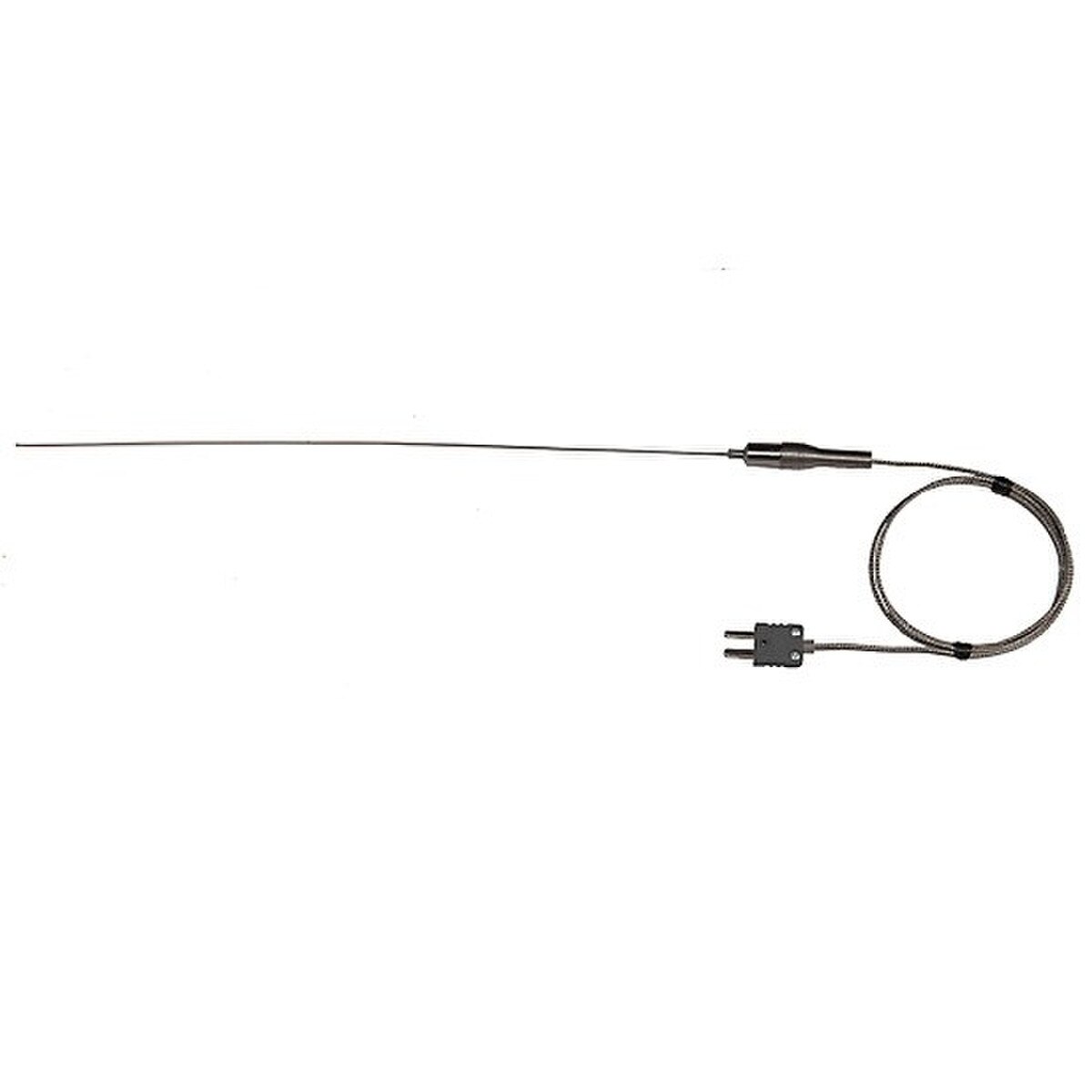

Digi-Sense Type-J Thermocouple Probe, High-Temperature Wire, 25 inch L x 0.063 inch Dia., Exposed Junction, 24 Gauge, 3 feet Stainless Steel Armored Fiberglass Cable, Mini ANSI Connector (each)
High-Temperature Thermocouple Probes designed for multiple bends in any environment
High-Temperature Thermocouple Probes designed for multiple bends in any environment
- Bend probes around pipe diameters as small as twice the sheath diameter to easily determine your pipe temperature
- Response Time: 1.5 seconds or greater
- Probes are tightly packed with powdered MgO in 25 inch long sheaths
- Each probe comes with a color coded ANSI Mini-Connectors: type J-black
| Product Type: | Thermocouple Probe |
| Brand: | Digi-Sense |
| Class: | Type-J |
| Grade: | High-Temperature Wire |
| Material: | Inconel® 600 |
| Temperature Range: | 32 to 825°F (0 to 440°C) |
| Temperature Accuracy: | ±5.9°F (±3.3°C), or ±0.4% of reading above 32°F (0°C); ±4.0% of reading below 32°F (0°C) |
| Connections: | Mini ANSI Connector |
| Probe Length: | 25 inches x 0.063 inch diameter |
| Cable Length: | 3 feet |
| Unit Size: | 24 Ga |
| Overall Dimensions: | Sheath: 25 inch length x 0.063 inch diameter; Handle: 1.5 inch length |
| Notes: | Exposed Junction |
