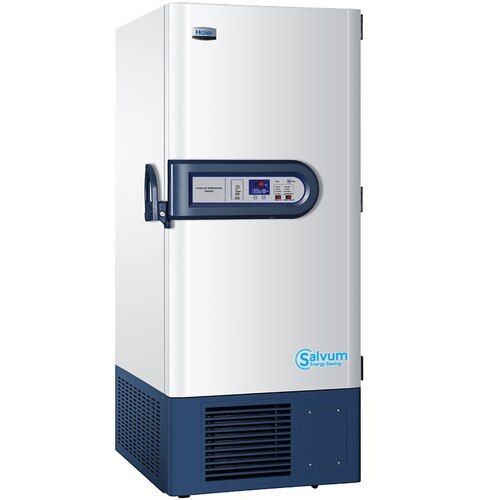

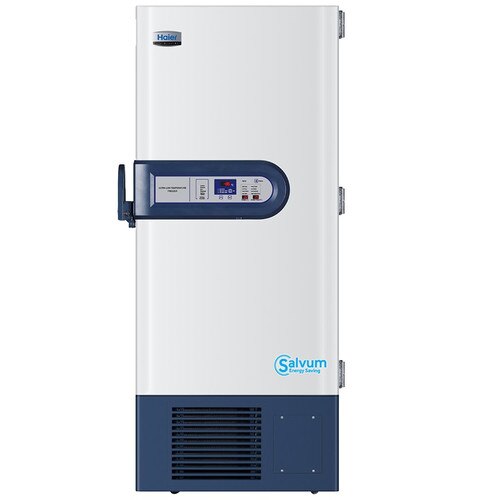

-86 °C Ultra Low Temperature Freezer, Energy Saving, 578l/20.4 Cu.Ft. 115V/60Hz

(0)No Reviews yet
$11,996.00 $14,995.00
SKU: DW-86L578J (HBM)
Item Number: DW-86L578J
Model Number: DW-86L578J
Manufacturer: Haier Biomedical
Brand: Haier
MPN: DW-86L578J
Condition: New
The manufacturer of this item has mandated a minimum price at which we may advertise this product. Please Login/Register to obtain your best price!


Haier Biomedical Ultra Low Temperature Freezer Key Design Features

  • Microprocessor-controlled system designed for controllable range of -40 °C to -86 °C for cabinet space with 1 °C increment

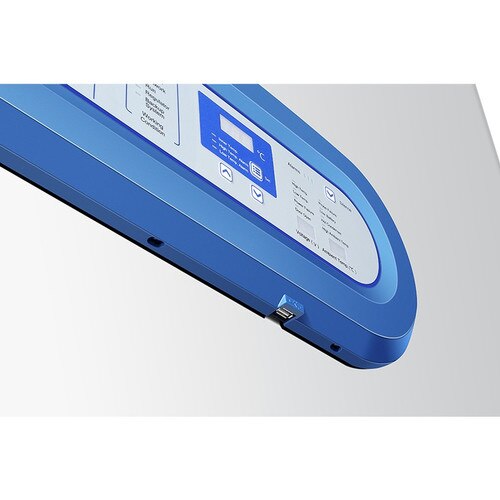

  • Large LED display for cabinet temperature, set temperature, ambient temperature, and input voltage
  • Settable high temperature and low temperature alarms
  • Automatic clean-filter alarm and sensor error alert

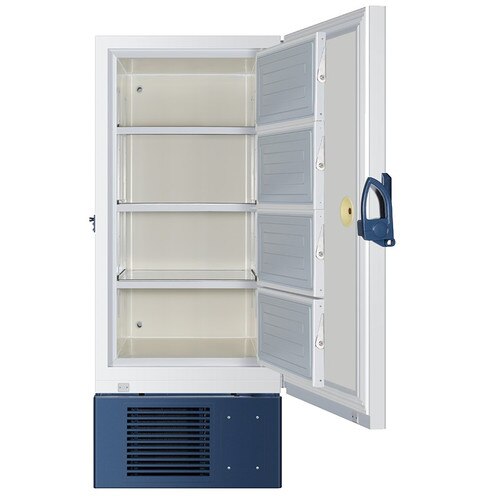

  • Adjustable storage shelf height
  • Can be connected with network, and remote alarm systems
  • Optional temperature recorder, storage racks and storage boxes

Field Proven Reliability

  • Refrigeration system designed and manufactured with best known practice, and components with highest possible quality
  • Reliability test performed and passed on all models including aging test on control electronics at 85 °C and 85% humidity environment

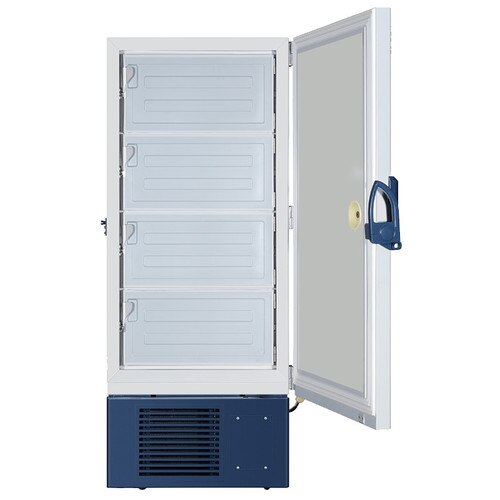

  • Unique insulated inner door design for four separate storage compartments to minimize frost buildup inside the chamber
  • Specialized control system design for a well-balanced operation of cascade refrigeration system


  • Equipped with a complete alarm system with optional remote network monitoring system UL, ENERGY STAR and CE certified for application safety
  • Malfunction alarms including high and low temperature, power outage, sensor errors, high voltage and low voltage, clean-filter, and extremely high ambient, door ajar feature standard
  • Capable of producing two types of alarm outputs: audible buzzer and visible flashing light
  • Multiple built-in system protection features including user-settable protection code for controls, user settable delay to start, voltage compensation system, and protection against extreme high voltages USB port for temperature data downloading
  • Safety padlock compatible on outer door

Installation and Application

  • Wide range operating voltage system from 115V to 230V designed to allow units installed in areas with poor voltage condition
  • Suitable for 10 °C to 32 °C
  • Ambient temperature
  • Input voltage and ambient temperature shown simultaneously for ease of monitoring environmental conditions
  • Freezer design for global installations
  • Robust door latch designed for secure door closing and compact casters for ease of maneuvering
  • Low Sound Level
  • Specialized refrigeration system design using whisper quiet fan and compressors
  • Freezer chassis designed to absorb vibration and sound
  • Energy Saving
  • Unique door seal and breaker design for the minimum loss of cold temperature during a door opening
  • High performance VIP insulation panels to minimize cabinet heat gain and to improve temperature stability
  • Patented cabinet insulation system designed for optimal performance of cold storage temperature and minimal frost buildup
  • Condenser fan intelligently start-stop to reduce power consumption
  • Unique design of independent insulated inner door systems for independent access of storage space to provide the maximum protection of stored samples and save energy
  • Warranty Information: 3 years on all parts and 5 years on the compressor

Product Type: Freezer
Brand: Haier
Class: Ultra Low Freezer
Temperature Range: -40 to -86 °C
Increments: 1 °C
Power Supply: 115 VAC, 60Hz
Warranty: 3 years on all parts and 5 years on the compressor
Net Weight: 661.4 lbs
Overall Dimensions: 35.2 x 38.6 x 77.2 in (895 x 980 x 1960 mm)
