LMI Series E7 Metering Pump, 8 GPH @ 60 PSI, 230 VAC

(0)No Reviews yet
SKU: LMI-E732-312SI
Item Number: LMI-E732-312SI
Model Number: E732-312SI
Manufacturer: LMI Milton Roy
Brand: LMI
MPN: E732-312SI
Condition: New
The manufacturer of this item has mandated a minimum price at which we may advertise this product. Please Login/Register to obtain your best price!

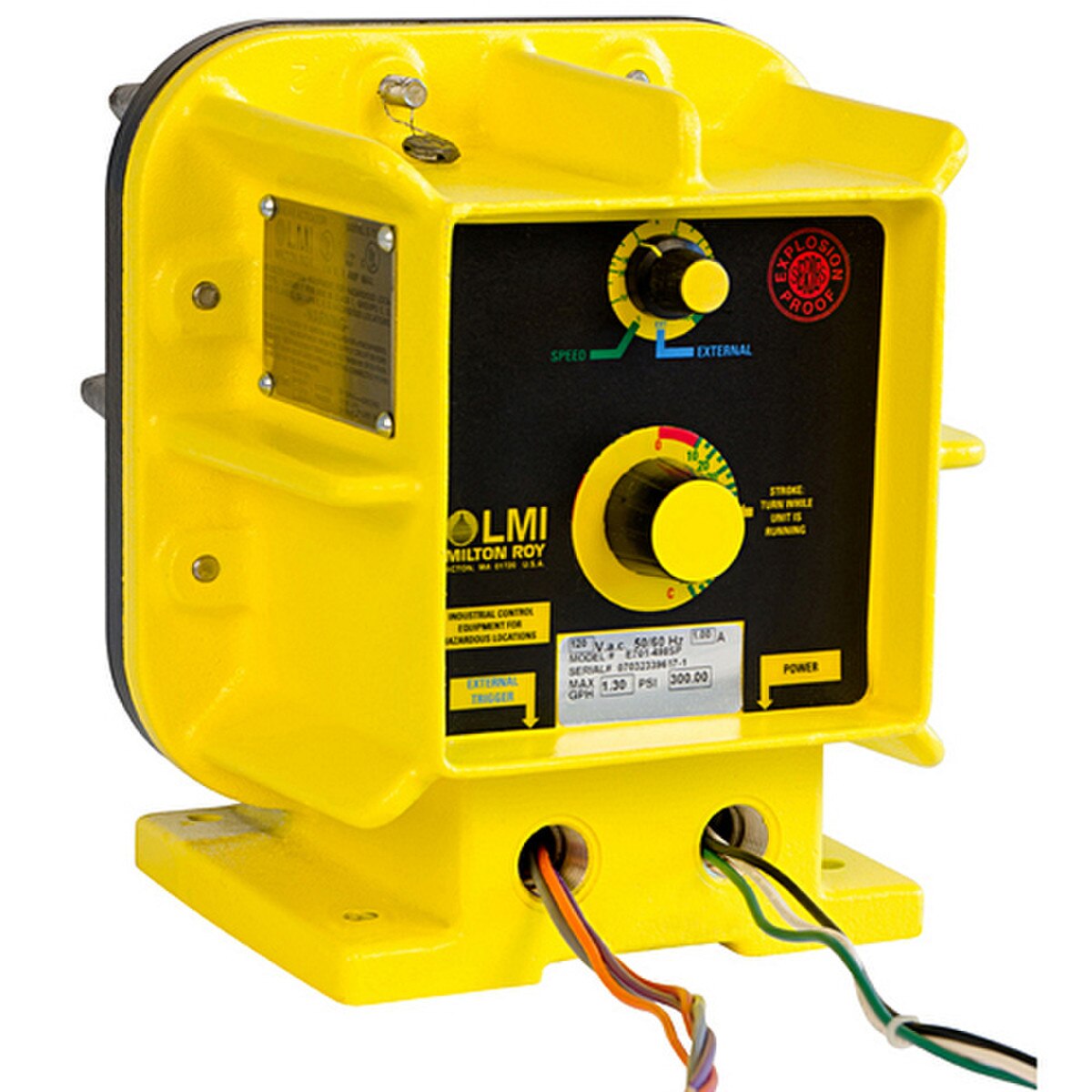

LMI Series E7 (Explosion Proof) Metering Pump.
8 GPH @ 60 PSI, Liquid End 312SI, 230 VAC 50/60 Hz, Hardwired.

Pulse Input with Dual Manual Control

Stroke frequency control via pulse signal input, manual stroke length control. Stroke frequency is manually adjustable when in local control. Includes low level float switch input.

General Description
LMI Series E7 (Explosion Proof) chemical metering pumps shall be positive displacement, Liquifram type pumps that are UL and CUL approved. Pumps shall be equipped with UL listed, Class I, Division 1, Groups C and D; Class II, Division 1, Groups E, F and G Drive Assembly. Output volume shall be adjustable while pumps are in operation from zero to maximum capacity.
Pump Controls
Adjustment shall be by means of readily accessible dial knobs, one for changing stroke length and the other for changing stroke frequency. Both knobs are to be located opposite the liquid handling end.
Control of Series E7 metering pump shall be selectable between internal and external pulsing by means of a stroke frequency knob. When this knob is rotated to its fully counter-clockwise position, the external pulse mode shall be engaged.
Drive Assembly
The pump drive shall be totally enclosed with no exposed moving parts. Pump drives shall be UL listed Class I, Groups C and D and Class II, Division 1, Groups E, F and G. Solid state electronic pulser shall be fully encapsulated with no exposed printed circuit etch and with quick connect terminals at least 3/16" (4.75 mm) wide. Electronics shall be housed in chemical resistant enclosure at the rear of the pump for maximum protection against chemical spillage. Average electrical power consumption shall not exceed 44 watt hours per hour under full speed and maximum pressure conditions. Pump weight shall not exceed 41 lbs (18.6 kg).
Automatic Pressure Relief
To eliminate need for pressure relief valve, Liquifram shall automatically stop pulsating when discharge pressure exceeds pump pressure rating by not more than 35%.
Materials of Construction
See Specifications tab. Chemical metering pump housing shall be of urethane painted cast aluminum and urethane painted cast iron. All exposed fasteners shall be stainless steel. Valve seat and seal ring shall be renewable by replacing only the combination seat-seal ring or cartridge valve assembly.
Check Valve, Tubing, Connections
A total of 16 ft (4.9 m) of tubing shall be provided per pump complete with compressing connections (on models with tubing connections). A foot valve with integral one piece strainer shall be provided for the suction line (on non-high viscosity models with tubing connections), and an injection check/back pressure valve with 1/2" NPT male connection for the injection point (on models with tubing connections).

Product Type: Diaphragm Metering Pump, Solenoid Driven
Brand: LMI
Product Line: Series E
Max Flow (GPH): 8.00
Max Flow (GPD): 192.00
Max Pressure (PSI): 60
Max Viscosity (CPS): 400
Max Strokes per Minute: 100
Flow Control: Pulse Input with Dual Manual Control
Turn Down Ratio: 200:1
Head/Fittings: Molded PVDF / PVDF
Valve Balls: .375 Ceramic
Diaphragm: Fluorofilm
Valve / Seat / O-Ring: PVDF/ Polyprel
Connections: Tubing PE .5" O.D.
Power Supply: 230 VAC 50/60 Hz, Hardwired
Net Weight: 41 lbs
Includes: 4FV-Four Function Valve (anti-siphon, back pressure, priming/pressure release and pressure relief), Tubing, Foot Valve and Strainer, Ceramic Foot Valve Weight, 1/2" NPT Male Injection Check/Back Pressure Valve, and Instruction Manual
