LMI Series G Metering Pump SD, 127 GPH @ 75 PSI, 115/230 VAC

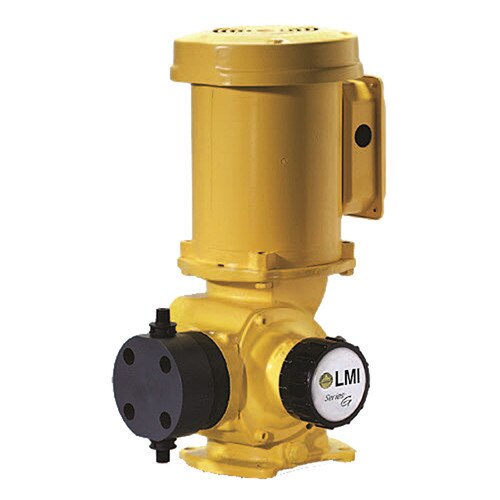

Images are for representation only. Actual product may differ in size, color or options.
LMI Series G Metering Pump.
127 GPH @ 75 PSI, H2SO4 Applications Liquid End.
115/230 VAC, 60 Hz, 1 Phase.
Manual Stroke Length Control
Manually adjustable eccentric stroke length control, stroke frequency is fixed.
General Description
LMI Series G chemical metering pumps shall be motor driven mechanically actuated positive displacement diaphragm type pumps. Precision stroke adjustment can be operated while the pump is running or stopped from zero to maximum capacity.
Pump Controls
The stroke frequency will be fixed. Stroke length shall be adjustable by a readily accessible dial knob located adjacent to the liquid handling end.
Drive Assembly
A robust metallic, worm gear drive coupled with the industrial duty variable eccentric stroke adjustment mechanism yields a 10 to 1 turn down ratio. All gear components operate in an oil bath for long life.
Materials of Construction
See Specifications tab. Chemical metering pump housing is a durable, metallic housing designed to withstand tough environments. All exposed fasteners shall be stainless steel. Valves shall be serviceable by replacing the cartridge valve assembly.
WARNING: A pressure relief valve MUST be installed in the discharge line of all motor driven pump (order as a separate line item).
127 GPH @ 75 PSI, H2SO4 Applications Liquid End.
115/230 VAC, 60 Hz, 1 Phase.
Manual Stroke Length Control
Manually adjustable eccentric stroke length control, stroke frequency is fixed.
General Description
LMI Series G chemical metering pumps shall be motor driven mechanically actuated positive displacement diaphragm type pumps. Precision stroke adjustment can be operated while the pump is running or stopped from zero to maximum capacity.
Pump Controls
The stroke frequency will be fixed. Stroke length shall be adjustable by a readily accessible dial knob located adjacent to the liquid handling end.
Drive Assembly
A robust metallic, worm gear drive coupled with the industrial duty variable eccentric stroke adjustment mechanism yields a 10 to 1 turn down ratio. All gear components operate in an oil bath for long life.
Materials of Construction
See Specifications tab. Chemical metering pump housing is a durable, metallic housing designed to withstand tough environments. All exposed fasteners shall be stainless steel. Valves shall be serviceable by replacing the cartridge valve assembly.
WARNING: A pressure relief valve MUST be installed in the discharge line of all motor driven pump (order as a separate line item).
| Product Type: | Diaphragm Metering Pump, Mechanically Driven |
| Brand: | LMI |
| Product Line: | Series G |
| Max Flow (GPH): | 127.00 |
| Max Flow (GPD): | 3048.0 |
| Max Pressure (PSI): | 75 |
| Max Viscosity (CPS): | 150 cps |
| Max Strokes per Minute: | 173 |
| Flow Control: | Manual Stroke Length Control |
| Turn Down Ratio: | 10:1 |
| Head/Fittings: | PVC / PVDF |
| Valve Balls: | Alloy 20 |
| Diaphragm: | PTFE |
| Valve / Seat / O-Ring: | Viton / Alloy 20 |
| Motor: | .25 hp, 1725 rpm, 1 Phase, 60 Hertz, 115/230 Volt, TEFC, NEMA 56C |
| Connections: | Pipe 1/2" NPT F |
| Power Supply: | 115/230 VAC, 60 Hz, 1 Phase |
| Net Weight: | 45 lbs |
| Includes: | Instruction Manual |
