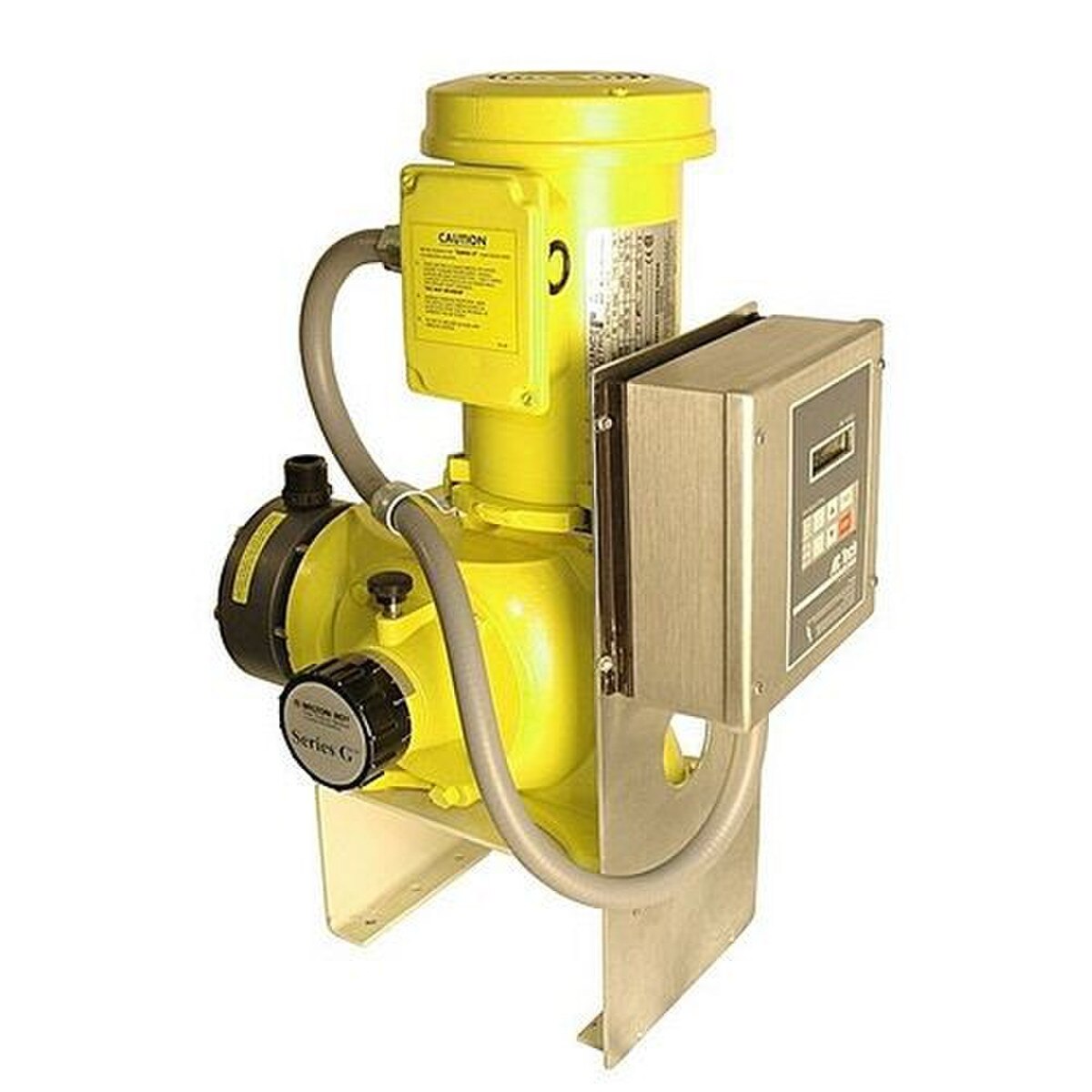

LMI Series G Metering Pump SD, 87 GPH @ 75 PSI, 115 VAC

(0)No Reviews yet
Item Number: LMI-SD86PNP
Model Number: SD86PNP
Manufacturer: LMI Milton Roy
Brand: LMI
Condition: New
The manufacturer of this item has mandated a minimum price at which we may advertise this product. Please Login/Register to obtain your best price!


LMI Series G Metering Pump.
87 GPH @ 75 PSI, H2SO4 Applications Liquid End.
115 VAC, 60 Hz, 1 Phase for DC Drive.

4-20 mA Input and Manual Stroke Length Control

Stroke frequency control via 4-20 mA signal input to DC variable speed drive, manually adjustable eccentric stroke length control.

General Description
LMI Series G chemical metering pumps shall be motor driven mechanically actuated positive displacement diaphragm type pumps. Precision stroke adjustment can be operated while the pump is running or stopped from zero to maximum capacity.
Pump Controls
The stroke frequency control via 4-20 mA signal input to DC variable speed drive. Stroke length shall be adjustable by a readily accessible dial knob located adjacent to the liquid handling end.
Drive Assembly
A robust metallic, worm gear drive coupled with the industrial duty variable eccentric stroke adjustment mechanism yields a 10 to 1 turn down ratio. All gear components operate in an oil bath for long life.
Materials of Construction
See Specifications tab. Chemical metering pump housing is a durable, metallic housing designed to withstand tough environments. All exposed fasteners shall be stainless steel. Valves shall be serviceable by replacing the cartridge valve assembly.

WARNING: A pressure relief valve MUST be installed in the discharge line of all motor driven pump (order as a separate line item).

Product Type: Diaphragm Metering Pump, Mechanically Driven
Brand: LMI
Product Line: Series G
Max Flow (GPH): 87.00
Max Flow (GPD): 2088.0
Max Pressure (PSI): 75
Max Viscosity (CPS): 250 cps
Max Strokes per Minute: 120
Flow Control: 4-20 mA Input and Manual Stroke Length Control
Turn Down Ratio: 10:1 plus Variable Speed Drive
Head/Fittings: PVC / PVDF
Valve Balls: Alloy 20
Diaphragm: PTFE
Valve / Seat / O-Ring: Viton / Alloy 20
Motor: .5 hp 1725 rpm TE motor with DC Variable Speed Drive, 4-20 ma input, NEMA 4/12 115 VAC
Connections: Pipe 1/2" NPT F
Power Supply: 115 VAC, 60 Hz, 1 Phase for DC Drive
Net Weight: 45 lbs
Includes: Instruction Manual
