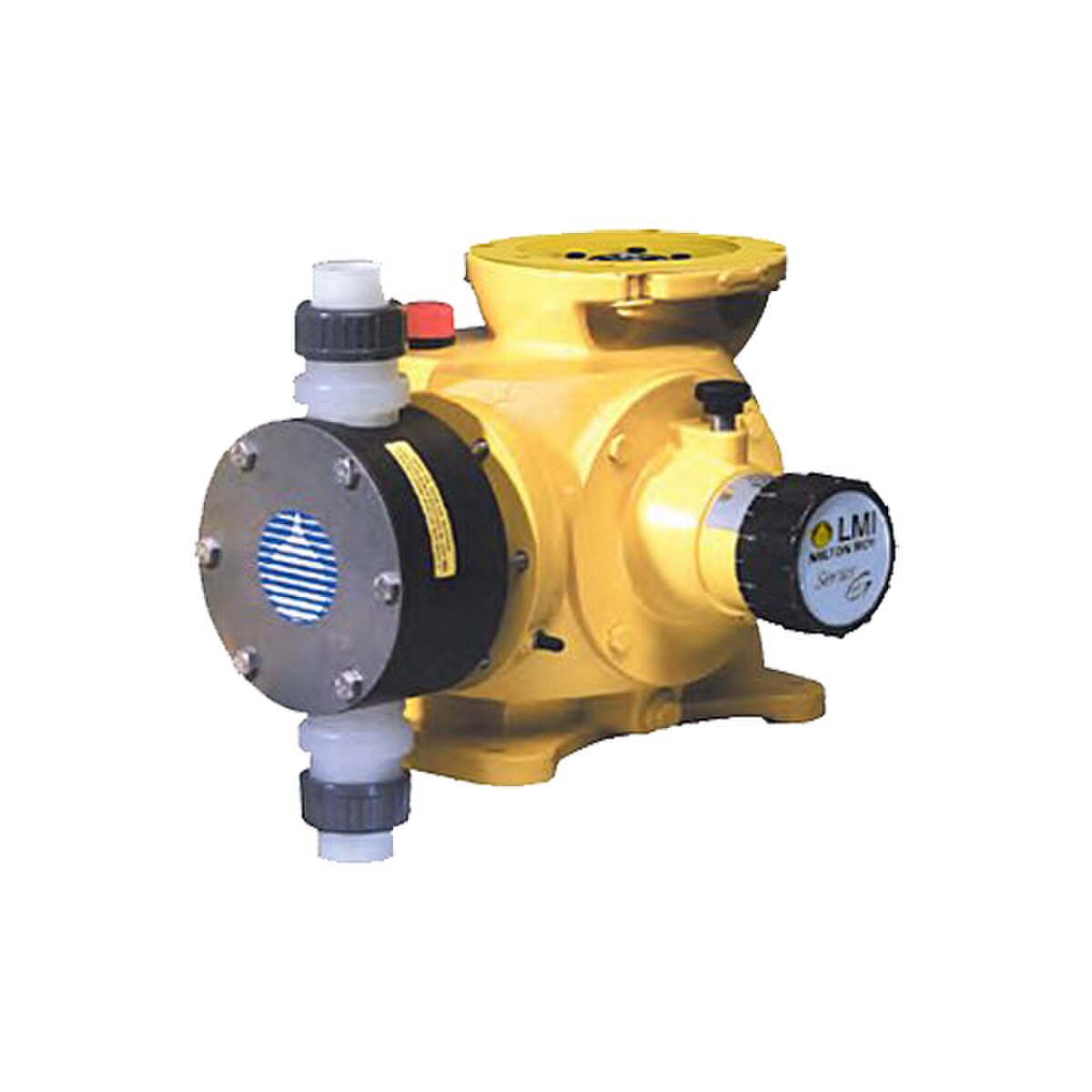

LMI Series G Metering Pump SG, 26 GPH @ 150 PSI, MOTOR NOT INCLUDED

(0)No Reviews yet
Item Number: LMI-SG51XPP
Model Number: SG51XPP
Manufacturer: LMI Milton Roy
Brand: LMI
Condition: New
The manufacturer of this item has mandated a minimum price at which we may advertise this product. Please Login/Register to obtain your best price!


LMI Series G Metering Pump.
26 GPH @ 150 PSI, Polymer Applications Liquid End (with Hastalloy C valve springs).

Manual Stroke Length Control

Manually adjustable eccentric stroke length control.

General Description
LMI Series G chemical metering pumps shall be motor driven mechanically actuated positive displacement diaphragm type pumps. Precision stroke adjustment can be operated while the pump is running or stopped from zero to maximum capacity.
Pump Controls
Stroke length shall be adjustable by a readily accessible dial knob located adjacent to the liquid handling end.
Drive Assembly
A robust metallic, worm gear drive coupled with the industrial duty variable eccentric stroke adjustment mechanism yields a 10 to 1 turn down ratio. All gear components operate in an oil bath for long life.
Materials of Construction
See Specifications tab. Chemical metering pump housing is a durable, metallic housing designed to withstand tough environments. All exposed fasteners shall be stainless steel. Valves shall be serviceable by replacing the cartridge valve assembly.

WARNING: A pressure relief valve MUST be installed in the discharge line of all motor driven pump (order as a separate line item).

Product Type: Diaphragm Metering Pump, Mechanically Driven
Brand: LMI
Product Line: Series G
Max Flow (GPH): 26
Max Flow (GPD): 624
Max Pressure (PSI): 150
Max Viscosity (CPS): 2000 cps
Max Strokes per Minute: 43
Flow Control: Manual Stroke Length Control
Turn Down Ratio: 10:1
Head/Fittings: PVC / PVDF
Valve Balls: 316 SS
Diaphragm: PTFE
Valve / Seat / O-Ring: Viton / 316 SS
Motor: MOTOR NOT INCLUDED, Flange Mount, NEMA 56C
Connections: Pipe 1/2" NPT F
Net Weight: 105 lbs
Includes: Instruction Manual
Notes: High Viscosity Liquid Ends may result in a reduction of output.
