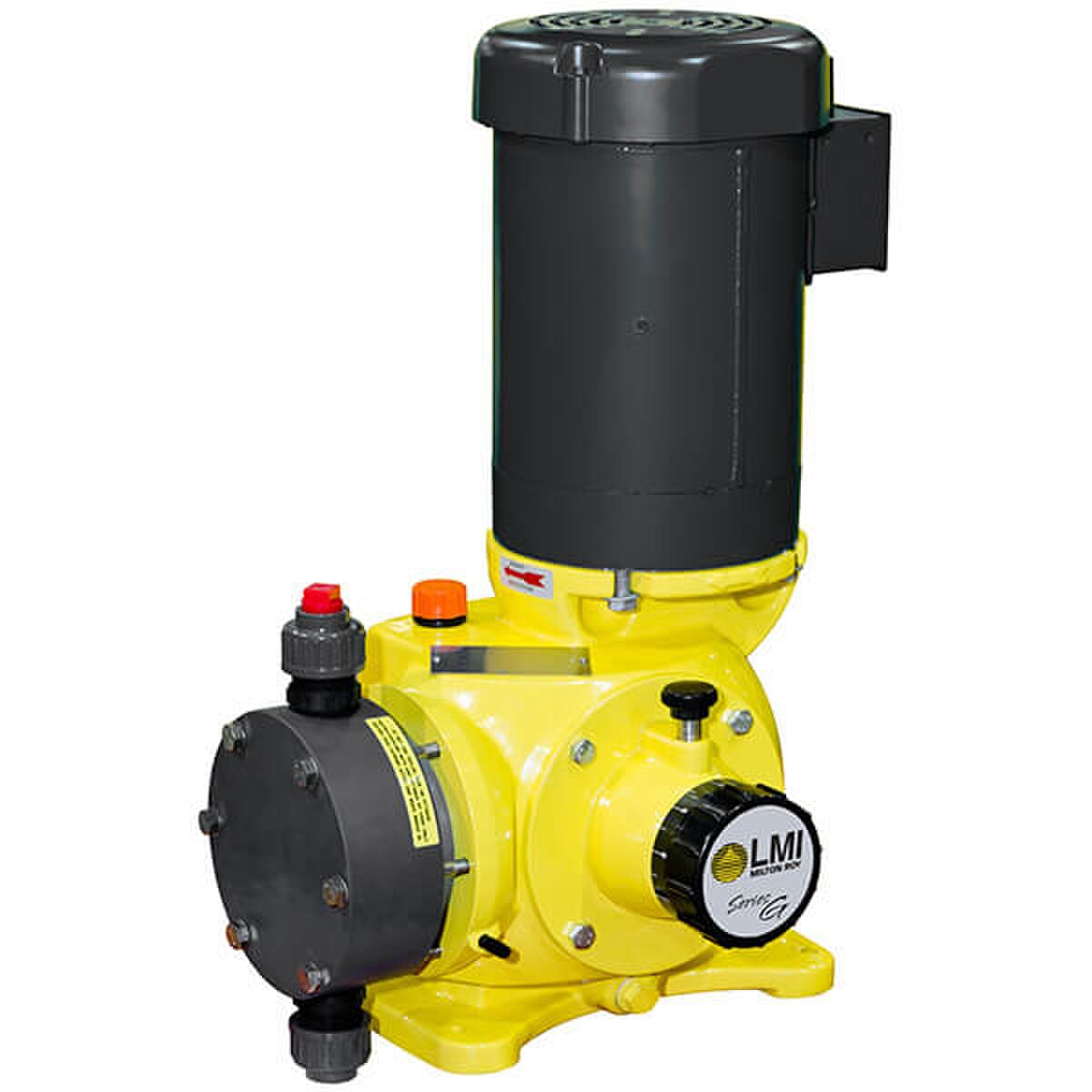

LMI Series G Metering Pump SG, 75 GPH @ 150 PSI, 230/460 VAC

(0)No Reviews yet
Item Number: LMI-SG56J7P
Model Number: SG56J7P
Manufacturer: LMI Milton Roy
Brand: LMI
Condition: New
The manufacturer of this item has mandated a minimum price at which we may advertise this product. Please Login/Register to obtain your best price!


LMI Series G Metering Pump.
75 GPH @ 150 PSI, 316SS Liquid End (ETL Certified to conform to ANSI/NSF STD 50).
230/460 VAC, 60 Hz, 3 Phase.

Manual Stroke Length Control

Manually adjustable eccentric stroke length control, stroke frequency is fixed.

General Description
LMI Series G chemical metering pumps shall be motor driven mechanically actuated positive displacement diaphragm type pumps. Precision stroke adjustment can be operated while the pump is running or stopped from zero to maximum capacity.
Pump Controls
The stroke frequency will be fixed. Stroke length shall be adjustable by a readily accessible dial knob located adjacent to the liquid handling end.
Drive Assembly
A robust metallic, worm gear drive coupled with the industrial duty variable eccentric stroke adjustment mechanism yields a 10 to 1 turn down ratio. All gear components operate in an oil bath for long life.
Materials of Construction
See Specifications tab. Chemical metering pump housing is a durable, metallic housing designed to withstand tough environments. All exposed fasteners shall be stainless steel. Valves shall be serviceable by replacing the cartridge valve assembly.

WARNING: A pressure relief valve MUST be installed in the discharge line of all motor driven pump (order as a separate line item).

Product Type: Diaphragm Metering Pump, Mechanically Driven
Brand: LMI
Product Line: Series G
Max Flow (GPH): 75
Max Flow (GPD): 1800
Max Pressure (PSI): 150
Max Viscosity (CPS): 400 cps
Max Strokes per Minute: 120
Flow Control: Manual Stroke Length Control
Turn Down Ratio: 10:1
Head/Fittings: 316 SS / 316 SS
Valve Balls: 316 SS
Diaphragm: PTFE
Valve / Seat / O-Ring: Viton / 316 SS
Motor: 1 hp, 1725 rpm, 3 Phase, 60 Hertz, 230/460 Volt, TEFC, NEMA 56C
Connections: Pipe 1/2" NPT F
Power Supply: 230/460 VAC, 60 Hz, 3 Phase
Net Weight: 105 lbs
Includes: Instruction Manual
