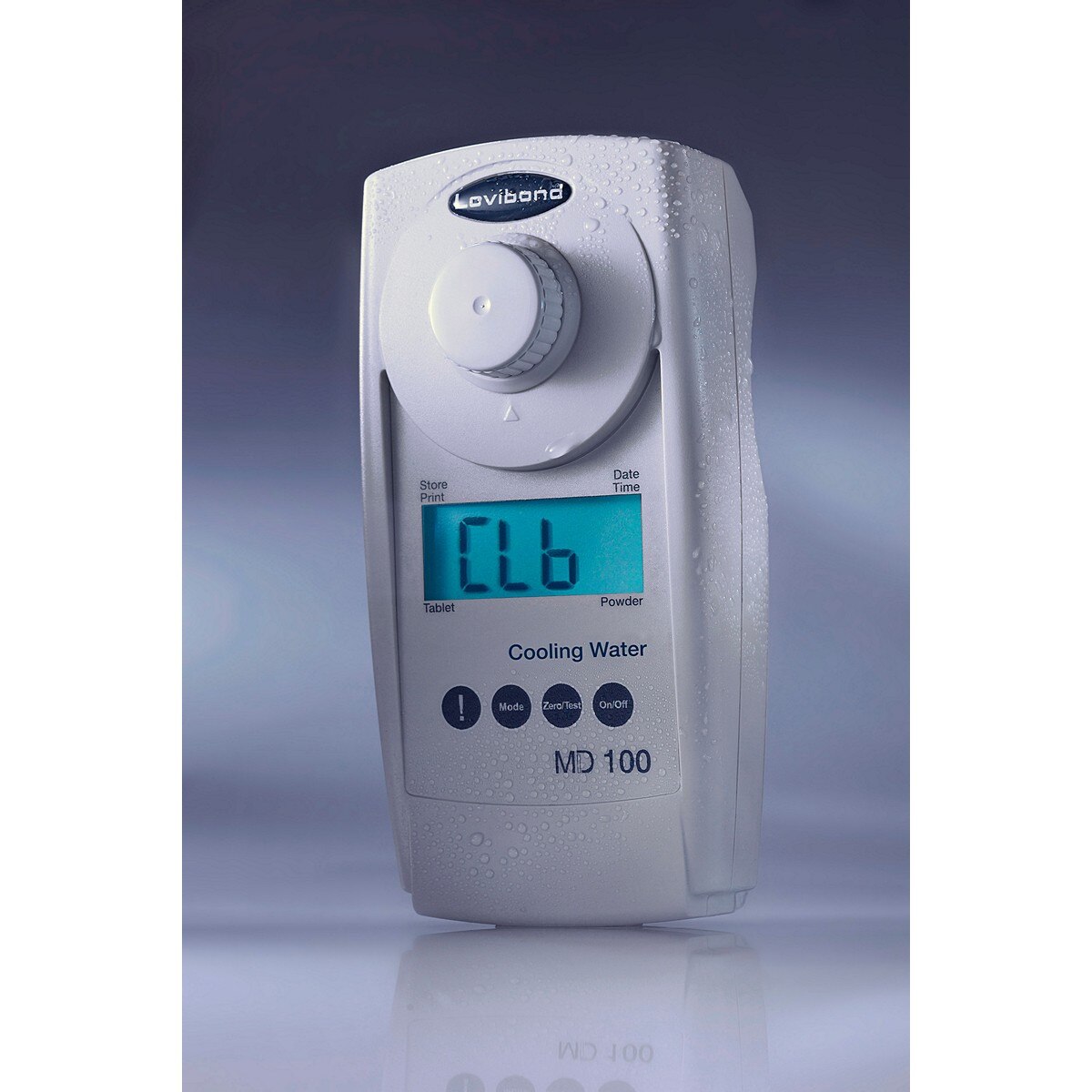

Lovibond® MD 100 Colorimeter – Cooling Water

Lovibond® MD 100 Colorimeter – Cooling Water

This Lovibond® MD 100 is a multi-parameter colorimeter designed specifically for cooling water analysis. With factory-programmed methods, rugged waterproof construction, and high-precision optics, it’s ideal for field and lab use in industrial cooling systems, HVAC operations, and water treatment facilities.

Also known as a photometer, this device supports a wide range of cooling water parameters using tablet and powder reagents.

Key Features:

• Measurement Parameters:
  • Aluminium: 0.01–0.25 mg/L Al
  • Bromine: 0.05–13 mg/L Br₂
  • Chlorine (Free/Total): 0.01–6 mg/L Cl₂
  • Chlorine HR: 5–200 mg/L Cl₂
  • Chlorine Dioxide: 0.02–11 mg/L ClO₂
  • Copper: 0.3–5.0 mg/L Cu
  • Iron LR: 0.03–2.00 mg/L Fe
  • Iron (in presence of molybdate): 0.03–2.00 mg/L Fe
  • Molybdenum LR: 0.03–3.00 mg/L Mo
  • Molybdenum HR: 0.6–60.0 mg/L Mo
  • Ozone: 0.02–2.00 mg/L O₃
  • Polyacrylate: 1–30 mg/L
  • Sulphate: 5–100 mg/L SO₄²⁻
  • Triazole (UV required): 1–16 mg/L
  • Zinc: 0.1–2.5 mg/L Zn
• Reagent Type: Tablet and VARIO powder reagents (parameter-specific)
• Optical System: LED with interference filter, 5 nm bandwidth
• One-Time-Zero (OTZ): Zero once per series—no need to re-zero between tests
• User Calibration: One-point calibration; ABS and %T supported
• Data Storage: Stores 16 results with date/time stamp; IRiM-compatible
• Waterproof Rating: IP68; submersible up to 1 hour at 0.1 m; floats if dropped
• Interface: Scroll-driven menu and last-result recall
• Ergonomic Design: Compact housing with rubber feet for lab stability

Technical Specifications:

• Wavelengths: 430 nm, 530 nm, 560 nm, 580 nm, 610 nm
• Power Supply: 4 × AAA batteries (approx. 5000 tests)
• Display Units: mg/L, ABS, %T
• Memory: 16 test results
• Warranty: 2 years

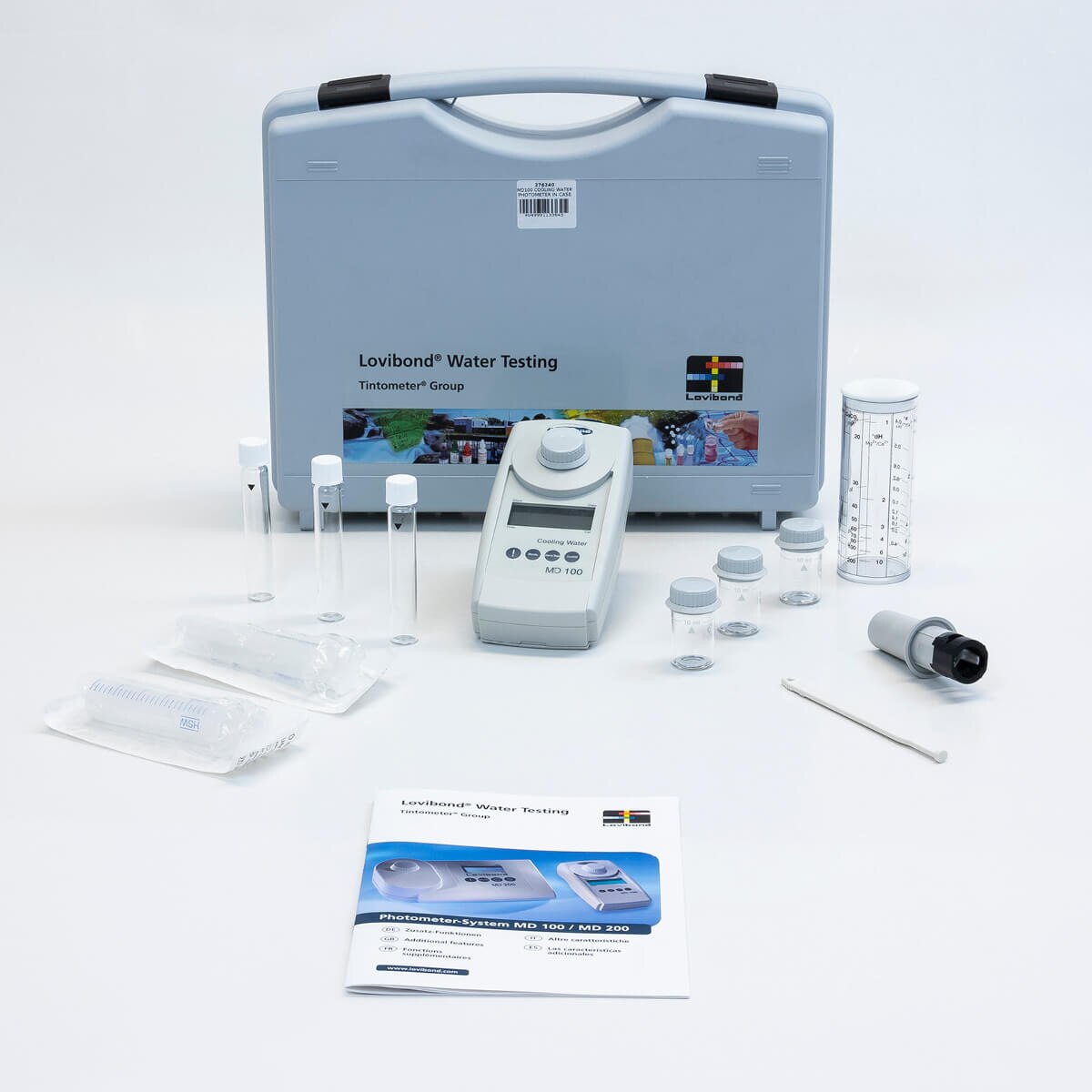

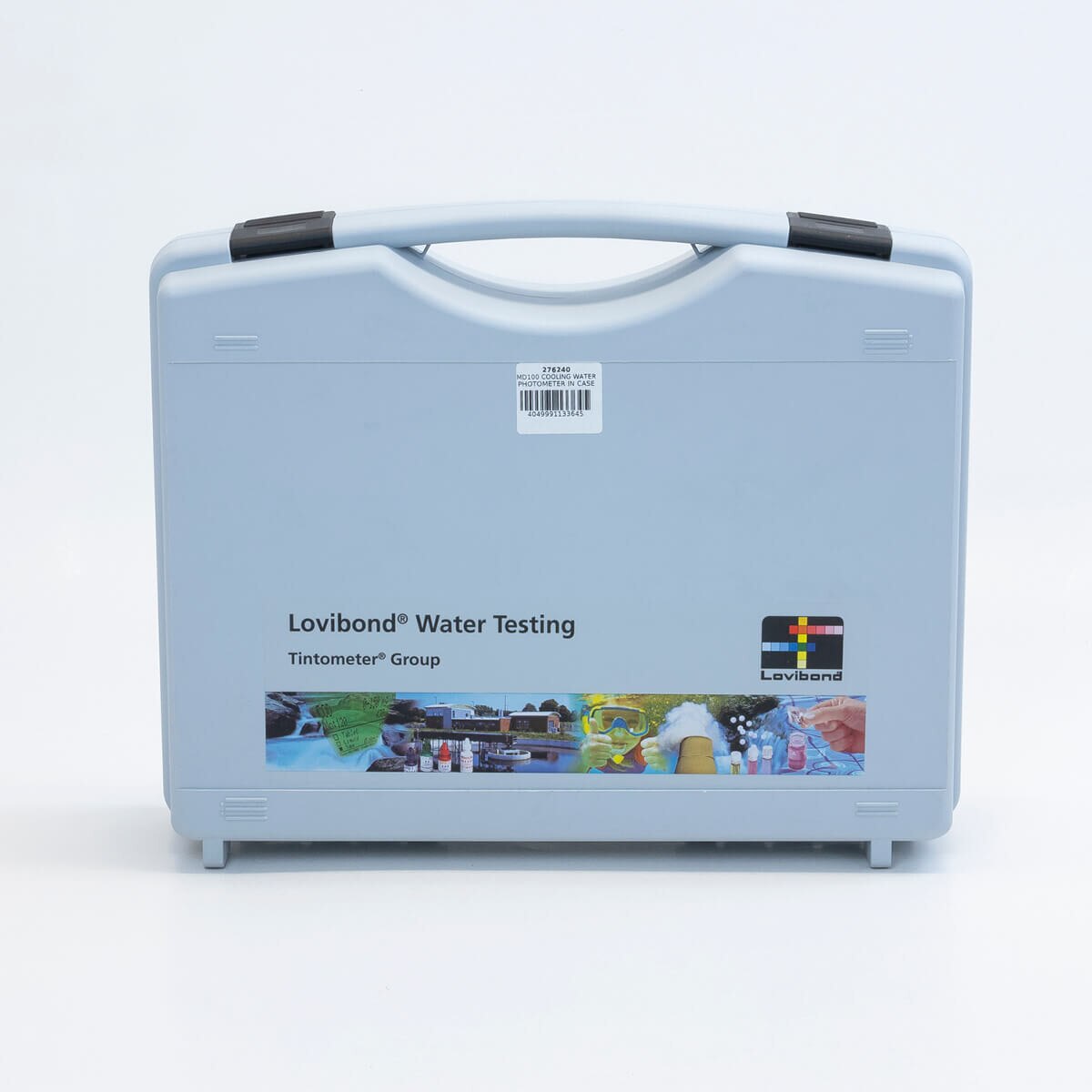

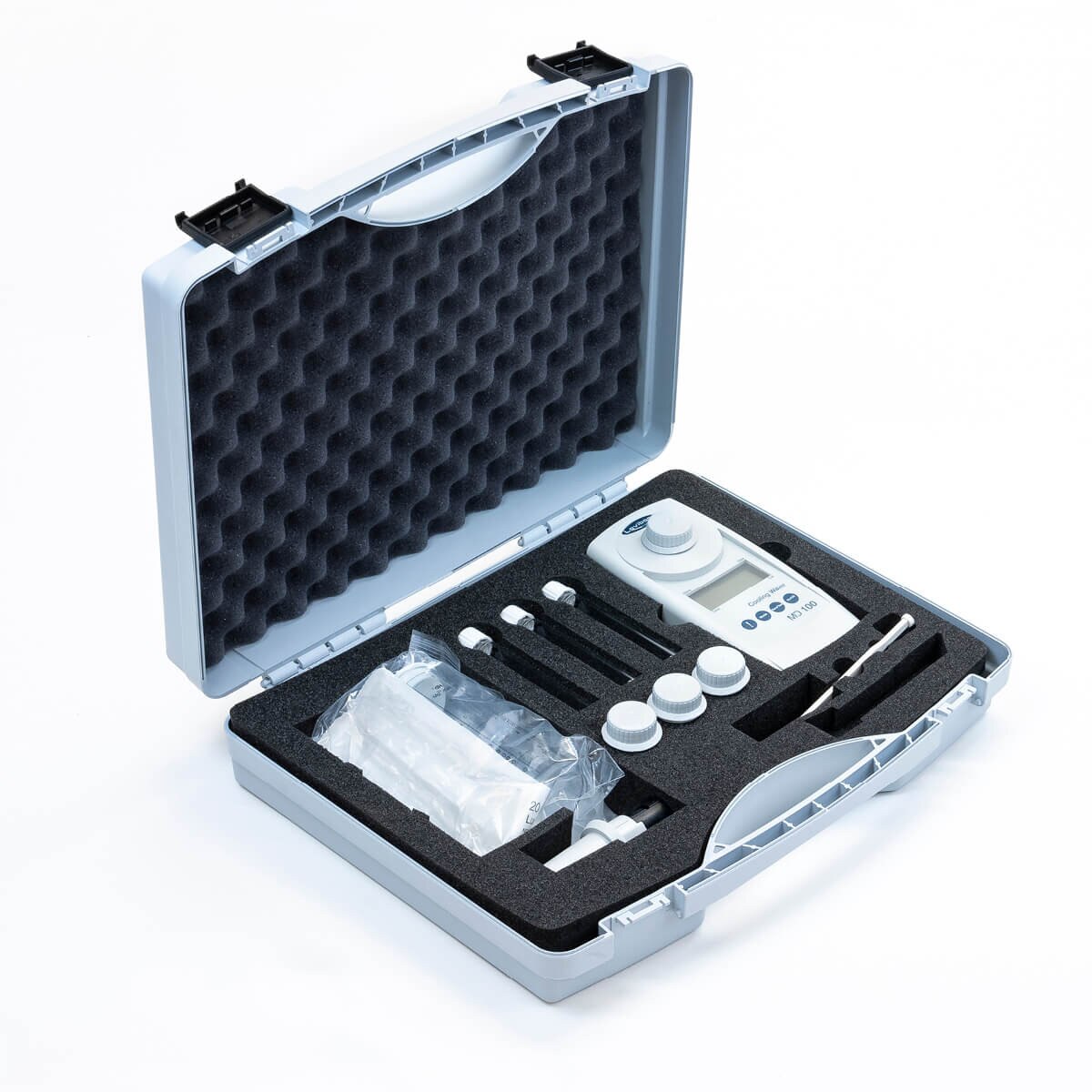

• Included Accessories: 3 × 16 mm round glass vials with lids; reagent starter set (parameter-specific); 20 ml syringe; 100 ml beaker; sealing rings; stirring rod; brush; instruction manual; quick start guide; certificate of compliance; carrying case

Applications:

Ideal for cooling tower monitoring, closed-loop system control, corrosion and scale prevention, and industrial water quality assurance, the MD 100 Cooling Water model delivers comprehensive multi-parameter analysis in the field or lab.
