LOV-721235BNC
Images are for representation only. Actual product may differ in size, color or options.

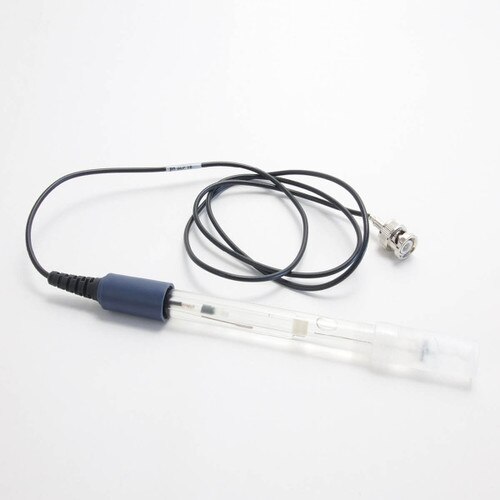

Lovibond® pH Electrode, glass/gel, BNC Plug (each)
The SD pH electrode type 235 with gel electrolyte is very resistant to chemicals and easier to clean due to the glass housing. The inclusion of a second electrolyte chamber makes this pH electrode less sensitive to impurities such as sulfides, which can lead to diaphragm clogging in the presence of silver ions (Ag+).
The storage bottle with a rubber seal is ideal to keep the pH-sensitive glass moist even after a long storage period and to protect it from breakage. Temperature compensation is achieved either by manual input into the meter or automatically by using a SD temperature sensor.
The SD pH electrode type 235 with gel electrolyte is very resistant to chemicals and easier to clean due to the glass housing. The inclusion of a second electrolyte chamber makes this pH electrode less sensitive to impurities such as sulfides, which can lead to diaphragm clogging in the presence of silver ions (Ag+).
The storage bottle with a rubber seal is ideal to keep the pH-sensitive glass moist even after a long storage period and to protect it from breakage. Temperature compensation is achieved either by manual input into the meter or automatically by using a SD temperature sensor.
- Glass housing resistant to chemicals.
- Two electrolyte chambers to protect the diaphragm from clogging.
| Operating Temperature | -5 - 80 °C |
| Sensor Shape | Bulb |
| Reference | double Ag/AgCl |
| Diaphragm | Ceramic |
| Electrolyte | Gel, saturated KCl |
| Integrated Temperature Sensor | no |
| Outer Material | Glass |
| Connection | BNC |
| Measuring Range | 0 - 14 pH |
| Length | 5 " |
| Diameter | 0 " |
| Cable Length | 1 m |
| Product Type: | Electrochemistry Instruments (pH, Conductivity, Dissolved Oxygen) |
| Brand: | Lovibond |
| Product Line: | Lovibond |
