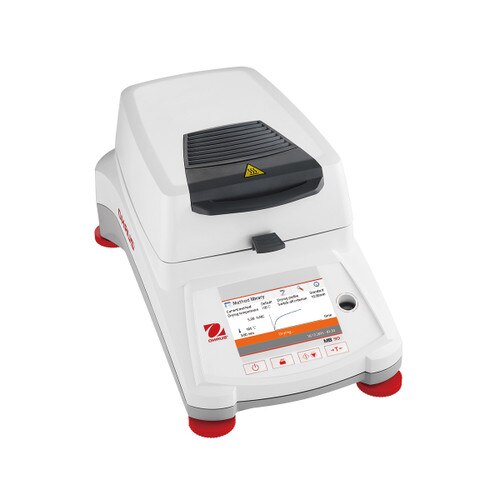

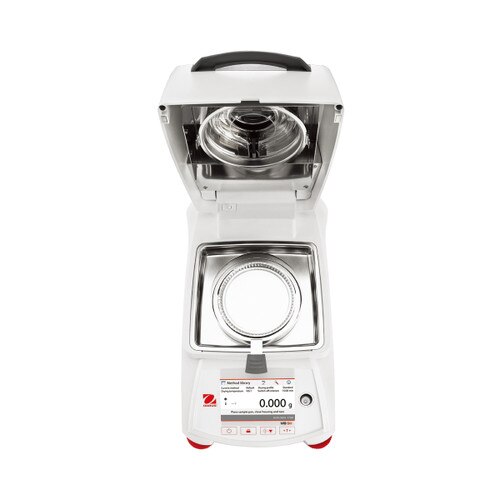

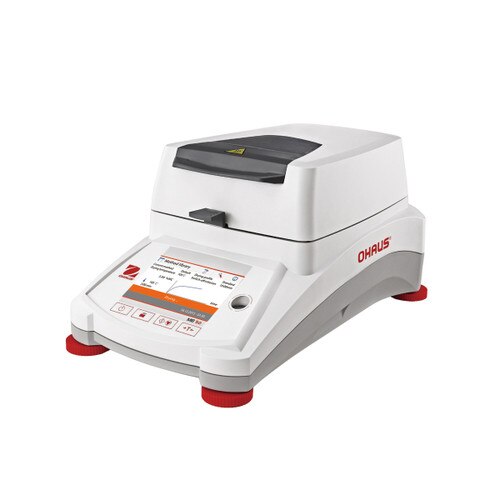

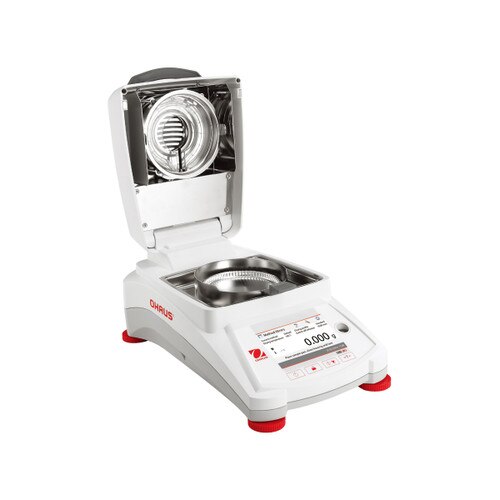

Ohaus MB90 Moisture Analyzer
Images are for representation only. Actual product may differ in size, color or options.
Ohaus MB90 Moisture Analyzer
Measuring moisture content has never been easier than with the MB90 Moisture Analyzer. The MB90's halogen heating distributes heat uniformly over the sample and speeds up the drying process, delivering fast and precise measurements. Designed for tool-free cleaning, its components can be easily removed for quick and easy maintenance. Operating the MB90 is intuitive with the icon-driven menu navigation on the touchscreen display.
Applications
Percent Moisture Determination, Percent Moisture Regain Determination, Percent Solid Determination, Weighing
Display
4.3" TFT color touchscreen display
Operation
Power cord (included)
Communication
RS232 with GLP/GMP data output, USB Host and USB Device (included)
Construction
Metal base, ABS top housing, halogen heat source, stainless steel pan support, stainless steel pan handler, in-use cover
Design Features
Three shut-off criteria (manual, timed or auto), two drying profiles (standard and fast), storage up to two methods, user guide, 40°C to 200°C heating temperature range (1°C increments), 13 operational languages
Measuring moisture content has never been easier than with the MB90 Moisture Analyzer. The MB90's halogen heating distributes heat uniformly over the sample and speeds up the drying process, delivering fast and precise measurements. Designed for tool-free cleaning, its components can be easily removed for quick and easy maintenance. Operating the MB90 is intuitive with the icon-driven menu navigation on the touchscreen display.
Applications
Percent Moisture Determination, Percent Moisture Regain Determination, Percent Solid Determination, Weighing
Display
4.3" TFT color touchscreen display
Operation
Power cord (included)
Communication
RS232 with GLP/GMP data output, USB Host and USB Device (included)
Construction
Metal base, ABS top housing, halogen heat source, stainless steel pan support, stainless steel pan handler, in-use cover
Design Features
Three shut-off criteria (manual, timed or auto), two drying profiles (standard and fast), storage up to two methods, user guide, 40°C to 200°C heating temperature range (1°C increments), 13 operational languages
| Product Type: | Analyzer |
| Brand: | Ohaus |
| Class: | Moisture |
| Range: | 0 % - 100 % |
| Capacity: | 90 g |
| Readability: | 0.001 g / 0.01% |
| Repeatability (S.D.): | 0.18% (3 g sample), 0.02% (10 g sample) |
| Pan Size: | 3.5 in (90 mm) |
| Housing: | ABS |
| Power Supply: | Main power cord |
| Display: | Touchscreen |
| Interface: | Bi-directional USB and RS-232 |
| Units of Measure: | Gram, %MC, %RG, %DC |
| Overall Dimensions: | 7.09 x 13.98 x 8.31 in (180 x 355 x 211 mm) |
| Includes: | in-use cover, user-guide, power cord |
| Notes: | Shut-off Criteria: Manual, Auto, Timed |
