PUL-42836
Images are for representation only. Actual product may differ in size, color or options.

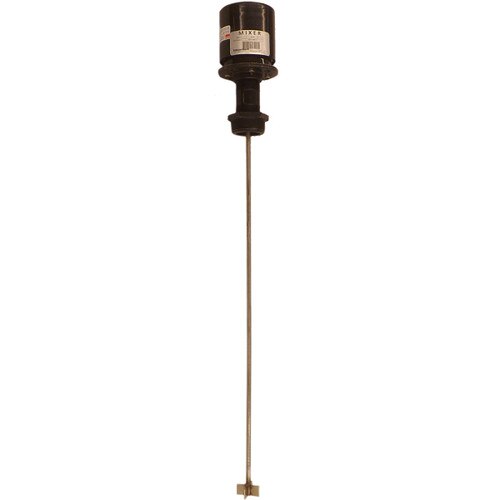

Pulsafeeder Thread Mount Mixer 42836-T-2-O-H/WRD
Mixer Position: vertical - screws directly into a standard bung.
Motor Power: 1/3 Horsepower, 1725 rpm, 115 VAC, 60Hz.
Motor Type: Open drip proof, Split Phase, Sleeve Bearings.
Shaft: 36 inch, 316 Stainless Steel.
Impeller: Single 4 blade 316 Stainless Steel (fits through bung opening).
Included Option: 8 feet, 3 wire, 18 gauge, rubber covered SJ cord and plug set.
The Pulsafeeder thread mount mixers provides a simple means of mounting smaller mixers onto tanks or drums with a bung hole in the cover. Thread mounts feature a 2 inch nipple which screws directly into a standard bung, cutting labor and cost by eliminating the need for drilling mounting holes or providing additional mixer supports. The thread mount holds the mixer securely in a vertical position. All mixers feature a 316 Stainless Steel shaft with an integral impeller. The shaft is coupled to the motor via a brass adapter which is held securely by four stainless steel set screws. The thread mount adapters are of iron construction and have a corrosion resistant coating.
Ensure the location of the mixer will allow sufficient clearance between impeller and tank walls.
Mixer Position: vertical - screws directly into a standard bung.
Motor Power: 1/3 Horsepower, 1725 rpm, 115 VAC, 60Hz.
Motor Type: Open drip proof, Split Phase, Sleeve Bearings.
Shaft: 36 inch, 316 Stainless Steel.
Impeller: Single 4 blade 316 Stainless Steel (fits through bung opening).
Included Option: 8 feet, 3 wire, 18 gauge, rubber covered SJ cord and plug set.
The Pulsafeeder thread mount mixers provides a simple means of mounting smaller mixers onto tanks or drums with a bung hole in the cover. Thread mounts feature a 2 inch nipple which screws directly into a standard bung, cutting labor and cost by eliminating the need for drilling mounting holes or providing additional mixer supports. The thread mount holds the mixer securely in a vertical position. All mixers feature a 316 Stainless Steel shaft with an integral impeller. The shaft is coupled to the motor via a brass adapter which is held securely by four stainless steel set screws. The thread mount adapters are of iron construction and have a corrosion resistant coating.
Ensure the location of the mixer will allow sufficient clearance between impeller and tank walls.
| Product Type: | Mixer |
| Brand: | Pulsafeeder |
