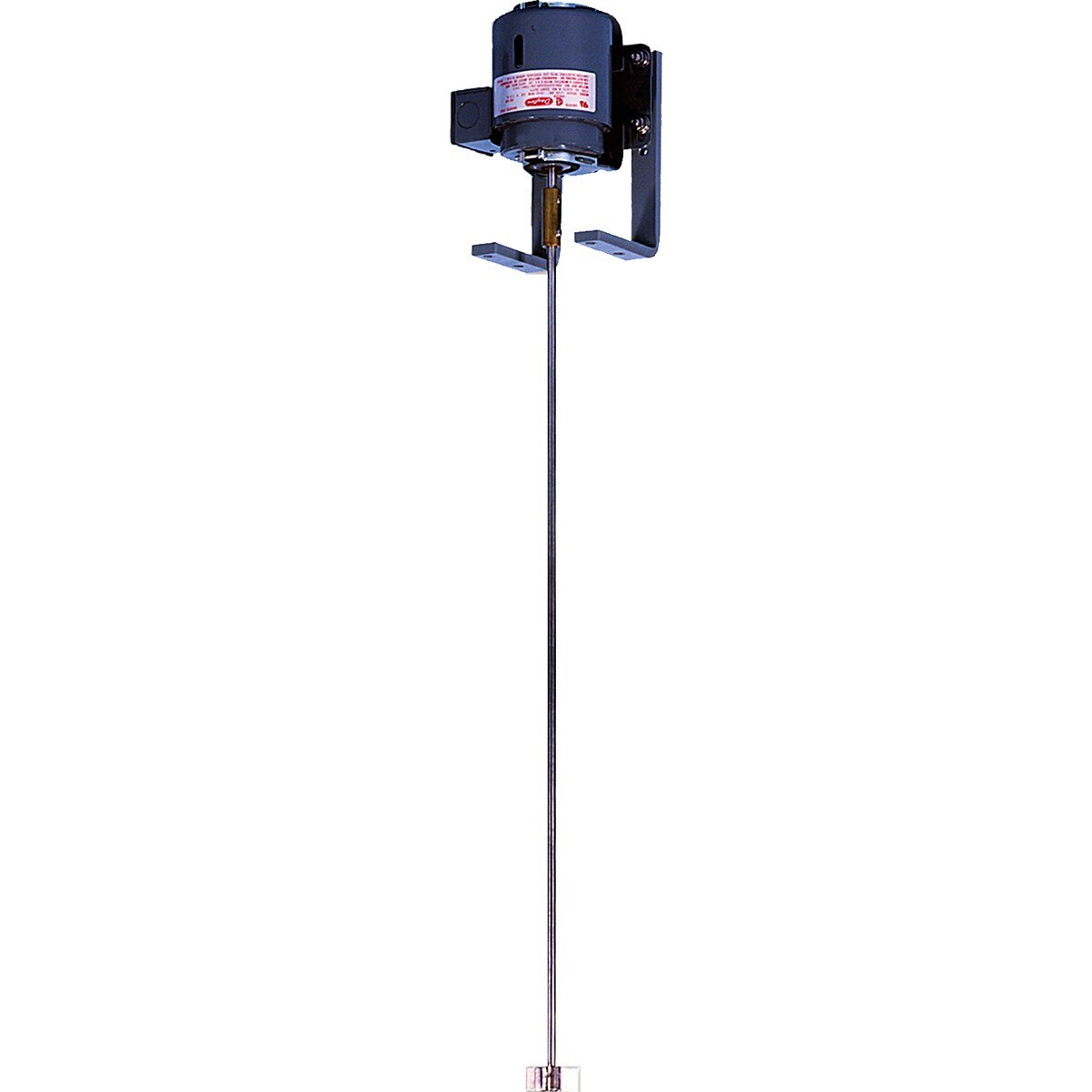

Pulsafeeder Bracket Mount Mixer 42839-B-1-O-H/WRD
Brackets: Two 3/8 inch Steel Brackets, 316 Stainless Steel.
Motor Power: 1/4 Horsepower, 1725 rpm, 115 VAC, 60Hz.
Motor Type: Open Drip Proof, Split Phase, Sleeve Bearings.
Shaft: 34 inch, 316 Stainless Steel.
Impeller: Single 2-3/8 inch diameter, 316 Stainless Steel.
Included Option: 8 foot, 3 wire, 18 gauge SJ cord and plug set.
The Pulsafeeder Bracket Mount Mixer provides a means of mounting a mixer to a tank cover or other flat surface. Four 18/8 Stainless Steel bolts and two rugged 3/8 inch thick steel brackets hold the mixer securely in place, requiring no additional mixer supports. All mixers are constructed of 316 Stainless Steel Shaft with an integral impeller. Special epoxy and vinyl shaft coatings are available for applications where the solution being agitated is not compatible with 316 Stainless Steel. The shaft is coupled to the motor via a brass adapter which is held securely by four stainless steel set screws. The mounting bracket is constructed to steel with a corrosion resistant coating and all fasteners are 18/8 Stainless Steel.
Brackets: Two 3/8 inch Steel Brackets, 316 Stainless Steel.
Motor Power: 1/4 Horsepower, 1725 rpm, 115 VAC, 60Hz.
Motor Type: Open Drip Proof, Split Phase, Sleeve Bearings.
Shaft: 34 inch, 316 Stainless Steel.
Impeller: Single 2-3/8 inch diameter, 316 Stainless Steel.
Included Option: 8 foot, 3 wire, 18 gauge SJ cord and plug set.
The Pulsafeeder Bracket Mount Mixer provides a means of mounting a mixer to a tank cover or other flat surface. Four 18/8 Stainless Steel bolts and two rugged 3/8 inch thick steel brackets hold the mixer securely in place, requiring no additional mixer supports. All mixers are constructed of 316 Stainless Steel Shaft with an integral impeller. Special epoxy and vinyl shaft coatings are available for applications where the solution being agitated is not compatible with 316 Stainless Steel. The shaft is coupled to the motor via a brass adapter which is held securely by four stainless steel set screws. The mounting bracket is constructed to steel with a corrosion resistant coating and all fasteners are 18/8 Stainless Steel.
Product Type: | Mixer |
Brand: | Pulsafeeder |
