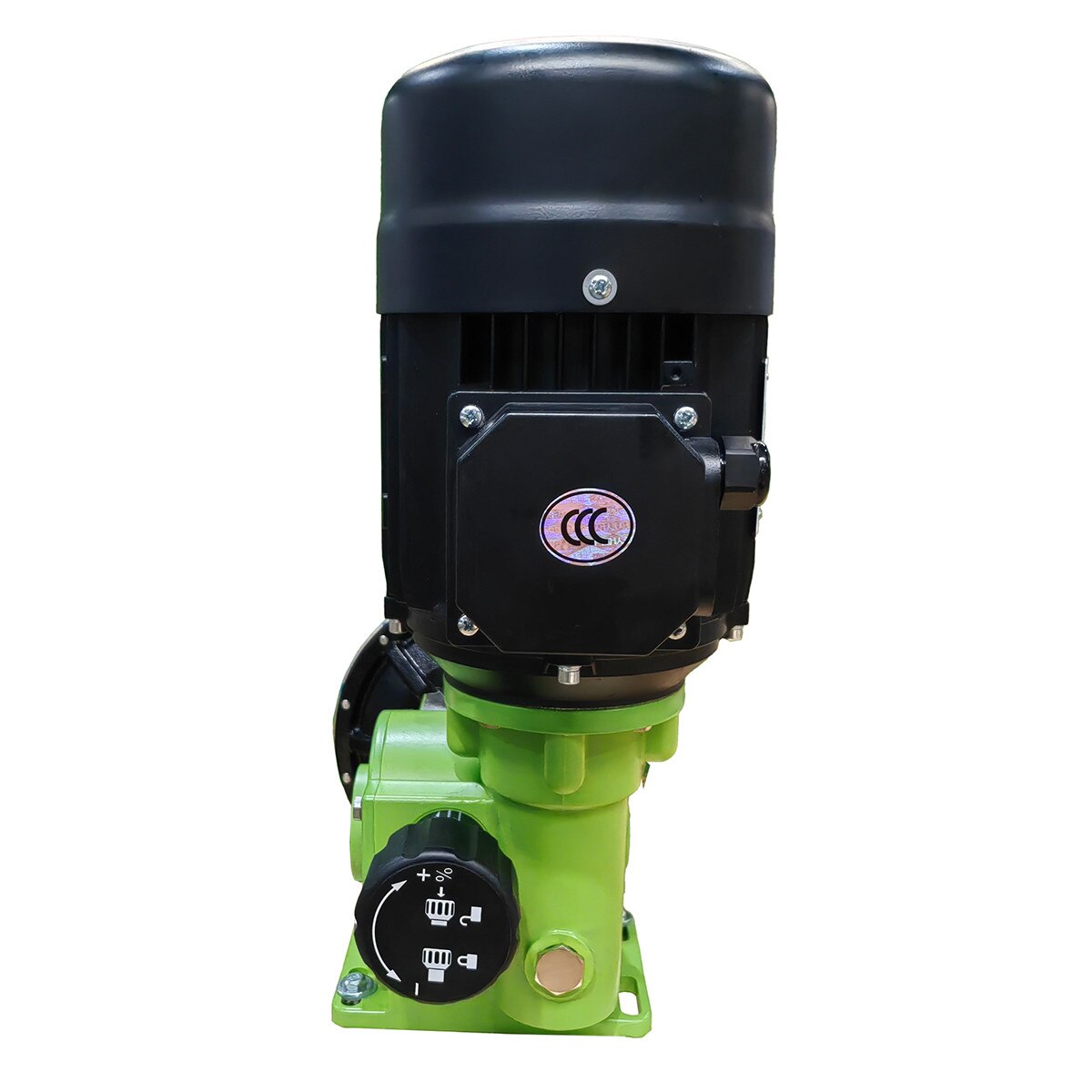

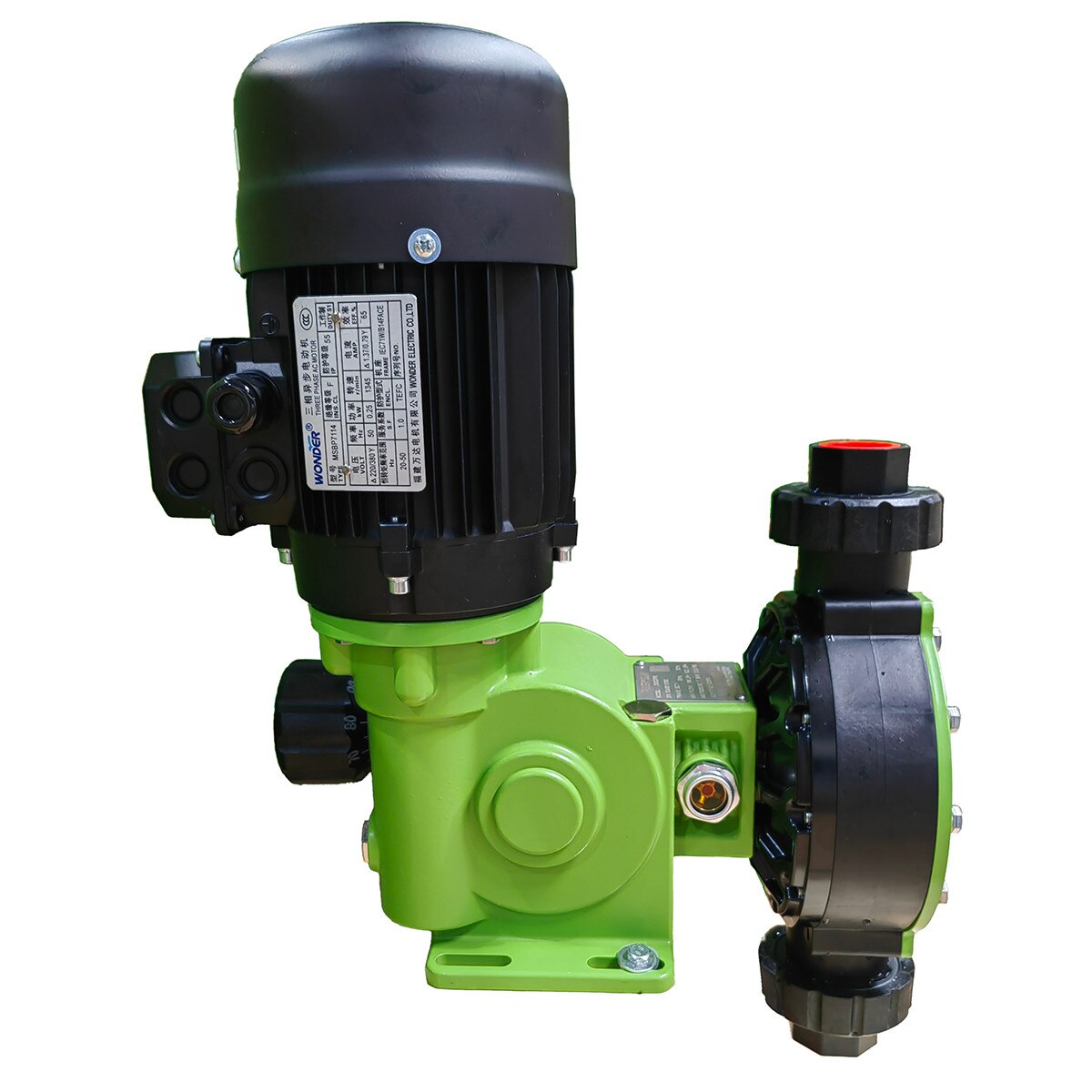

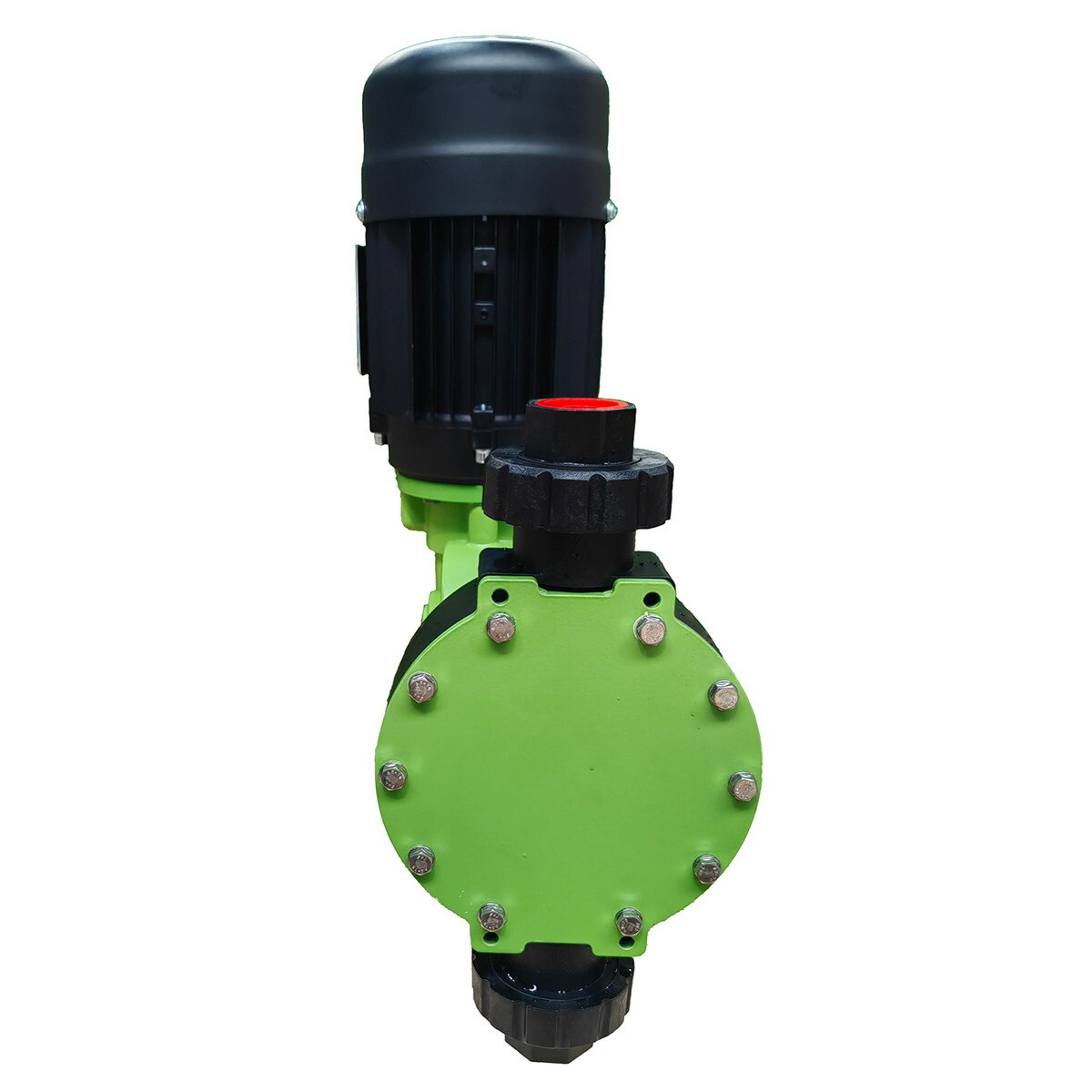

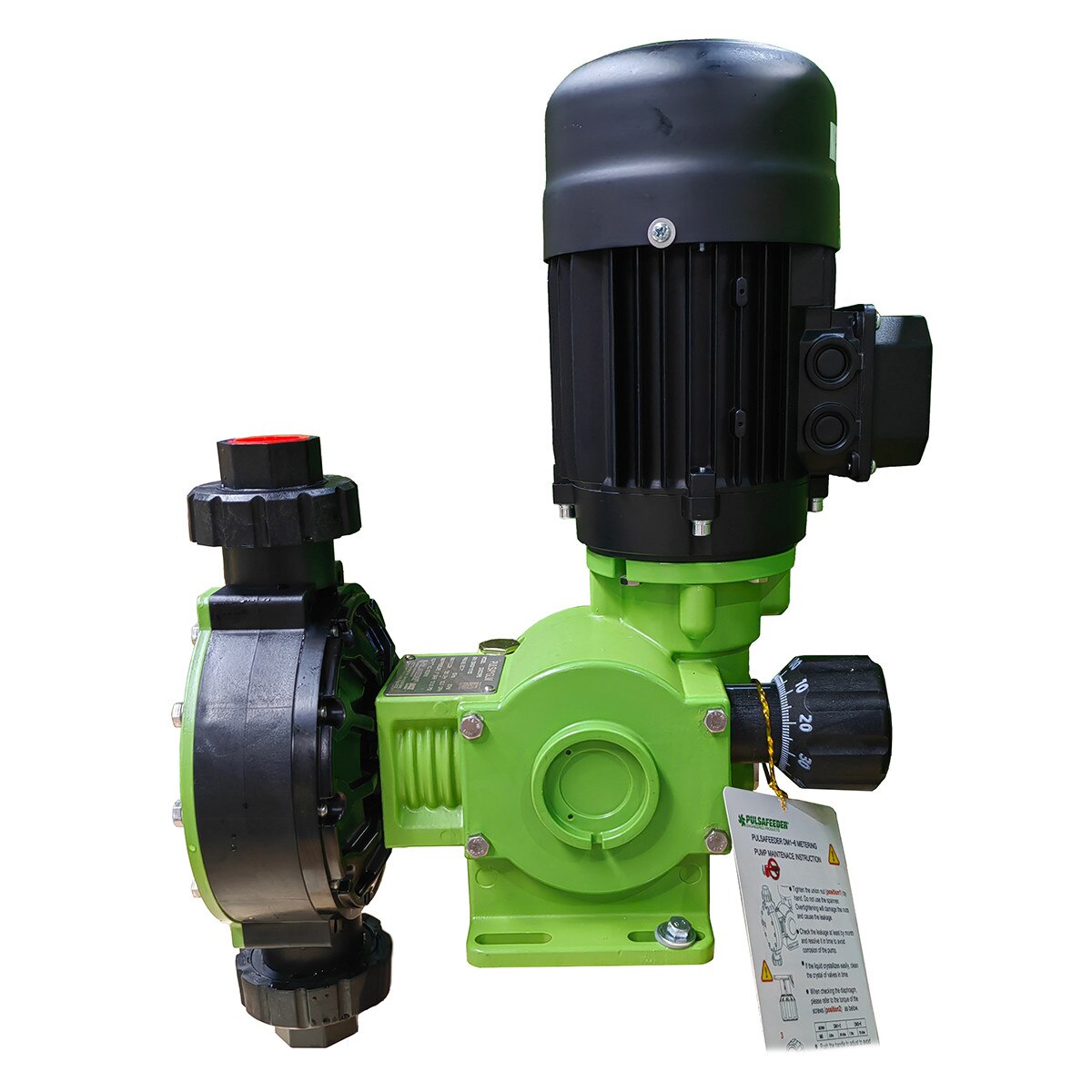

Pulsafeeder GreenLine Metering Pump, 7.9 GPH @ 145 PSI, 115/230 V, with PVDF wet end
Images are for representation only. Actual product may differ in size, color or options.
Pulsafeeder GreenLine Metering Pump, 7.9 GPH @ 145 PSI, 115/230 V, with PVDF wet end
The GreenLine‑GLM DM2A1FC is a mechanically actuated diaphragm metering pump designed for accurate, reliable chemical dosing in demanding industrial and municipal applications. Powered by a 115/230 V, 60 Hz TEFC motor and equipped with a corrosion‑resistant PVDF liquid end, it delivers 7.9 gph (30 lph) at 145 psi (10 bar). The DM2A1FC features a sealed gearbox, auto‑locking stroke adjustment, ceramic check balls, and 0.5″ FNPT connections—making it ideal for aggressive chemicals, oxidizers, and off‑gassing fluids.
Specifications
- Max Flow: 7.9 gph (30 lph)
- Max Pressure: 145 psi (10 bar)
- SPM @ 60 Hz: 88 strokes/min
- Motor: 0.50 HP (0.37 kW), TEFC, 115/230 V, 60 Hz, 1‑phase
- Suction Lift: 10 ft (3 m)
- Process Temperature: 32–113 °F (0–45 °C)
- Ambient Temperature: 32–113 °F (0–45 °C)
- Accuracy: ±2% of set point
- Stroke Adjustment: 0–100%, 1% resolution, auto‑locking
- Viscosity: up to 1,000 cPs
- Connections: 0.5″ FNPT suction / 0.5″ FNPT discharge
- Approximate Weight: 49 lb (pump with motor)
Materials of Construction
- Wet End: PVDF (head, valve guides, valve seats, valve caps)
- Check Balls: Ceramic
- Valve O‑Rings: PTFE
- Diaphragm: Composite PTFE, double‑sided PTFE coating
- Housing: Epoxy‑painted aluminum
- Hardware: Stainless steel
- Lubrication: Oil bath gearbox with accessible fill and sight glass
Key Features & Benefits
- PVDF liquid end provides excellent resistance to acids, oxidizers, and halogenated chemicals
- Mechanically actuated diaphragm design ensures long service life
- Auto‑locking stroke adjustment for drift‑free accuracy
- Spherically uniform velocity check valves improve priming and reduce turbulence
- Compact, sealed gearbox reduces noise and protects internal components
- Never‑seize motor coupling for easy motor installation and removal
- NSF/ANSI/CAN 61 and NSF/ANSI 372 certified for many water treatment applications
Markets & Typical Applications
- Municipal and industrial water & wastewater treatment
- Handling aggressive chemicals, oxidizers, and corrosive solutions
- Power generation and boiler feed chemical dosing
- Chemical processing, refining, and petrochemical services
- Mining, metals, and mineral processing
- Dosing acids, caustics, polymers, biocides, cleaners, and other process chemicals
| Product Type: | Diaphragm Metering Pump, Mechanically Driven |
| Brand: | Pulsafeeder |
| Product Line: | GreenLine |
| Housing: | Epoxy Painted Aluminum |
| Max Flow (GPH): | 7.9 |
| Max Flow (GPD): | 189.6 |
| Max Pressure (PSI): | 145 |
| Max Viscosity (CPS): | 1000 |
| Max Strokes per Minute: | 88 |
| Flow Control: | Manual stroke length adjustment (0 to 100%) |
| Turn Down Ratio: | 10:1 |
| Head/Fittings: | PVDF / PVDF |
| Valve Balls: | Ceramic |
| Diaphragm: | Composite PTFE |
| Valve / Seat / O-Ring: | PVDF / PTFE |
| Motor: | TEFC - NEMA 56C, 1P, 1/2 Hp |
| Connections: | 1/2" FNPT |
| Power Supply: | 115/230 VAC, 60 Hz, 1 Phase |
| Warranty: | 2 Year Limited Warranty |
| Net Weight: | 49 lbs |
| Packaging: | Each |
| Includes: | Installation, Operation, and Maintenance Instruction Manual |
| Working Environment: | 32 to 113°F (0 to 45°C) |
