Pulsafeeder GreenLine Metering Pump, 7.9 GPH @ 145 PSI, 115/230 V, with PVDF wet end and Leak Detection
Images are for representation only. Actual product may differ in size, color or options.
Pulsafeeder GreenLine Metering Pump, 7.9 GPH @ 145 PSI, 115/230 V, with PVDF wet end and Leak Detection

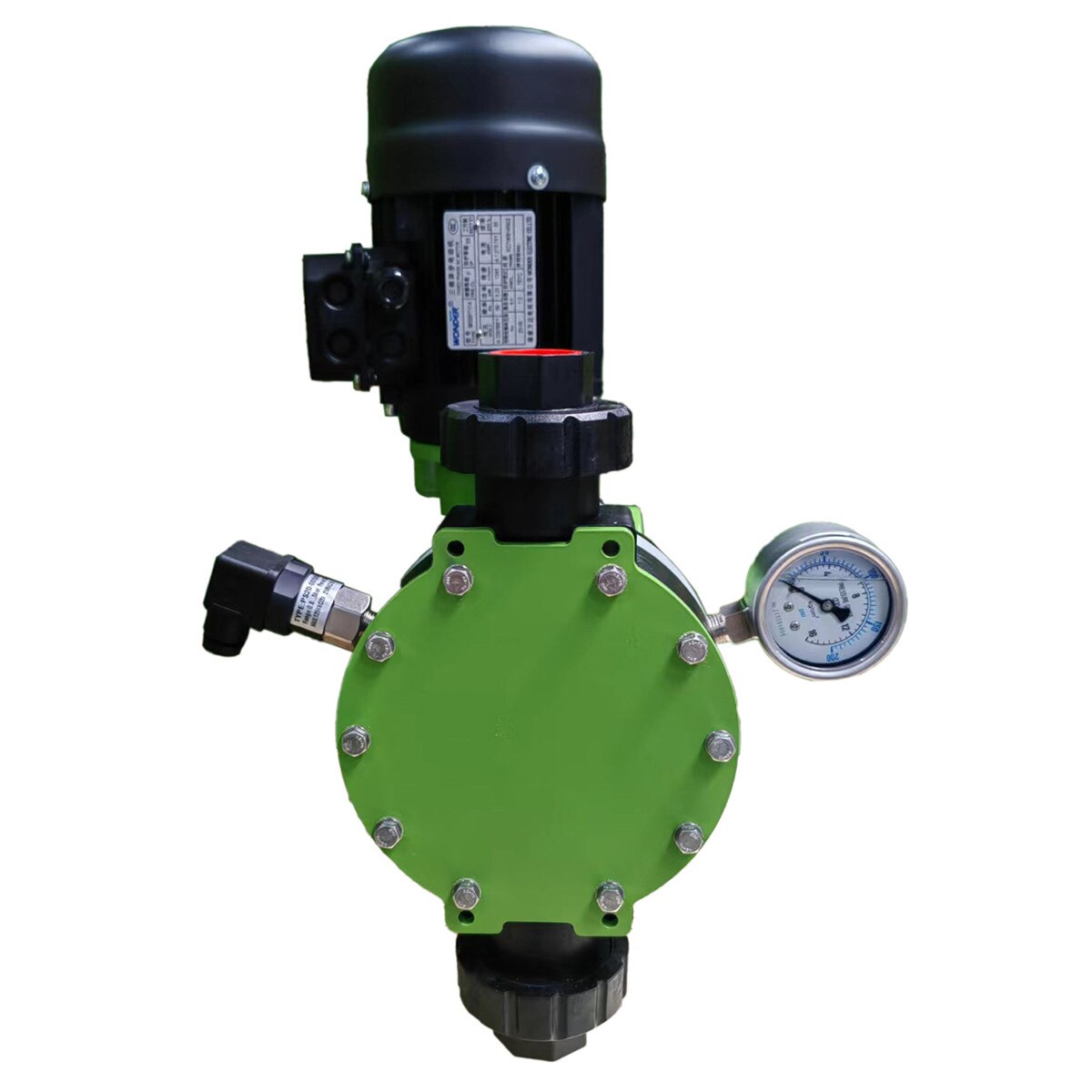

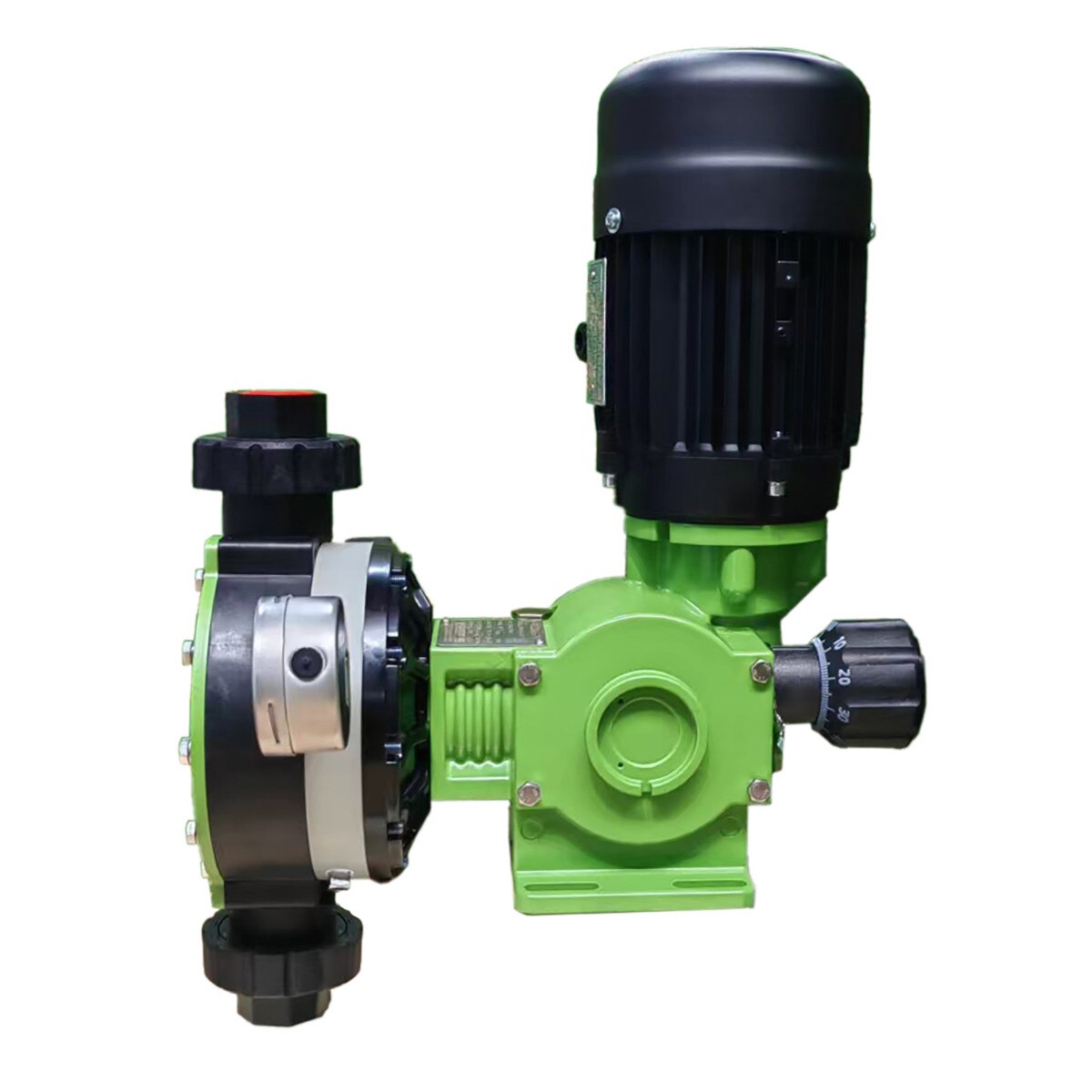

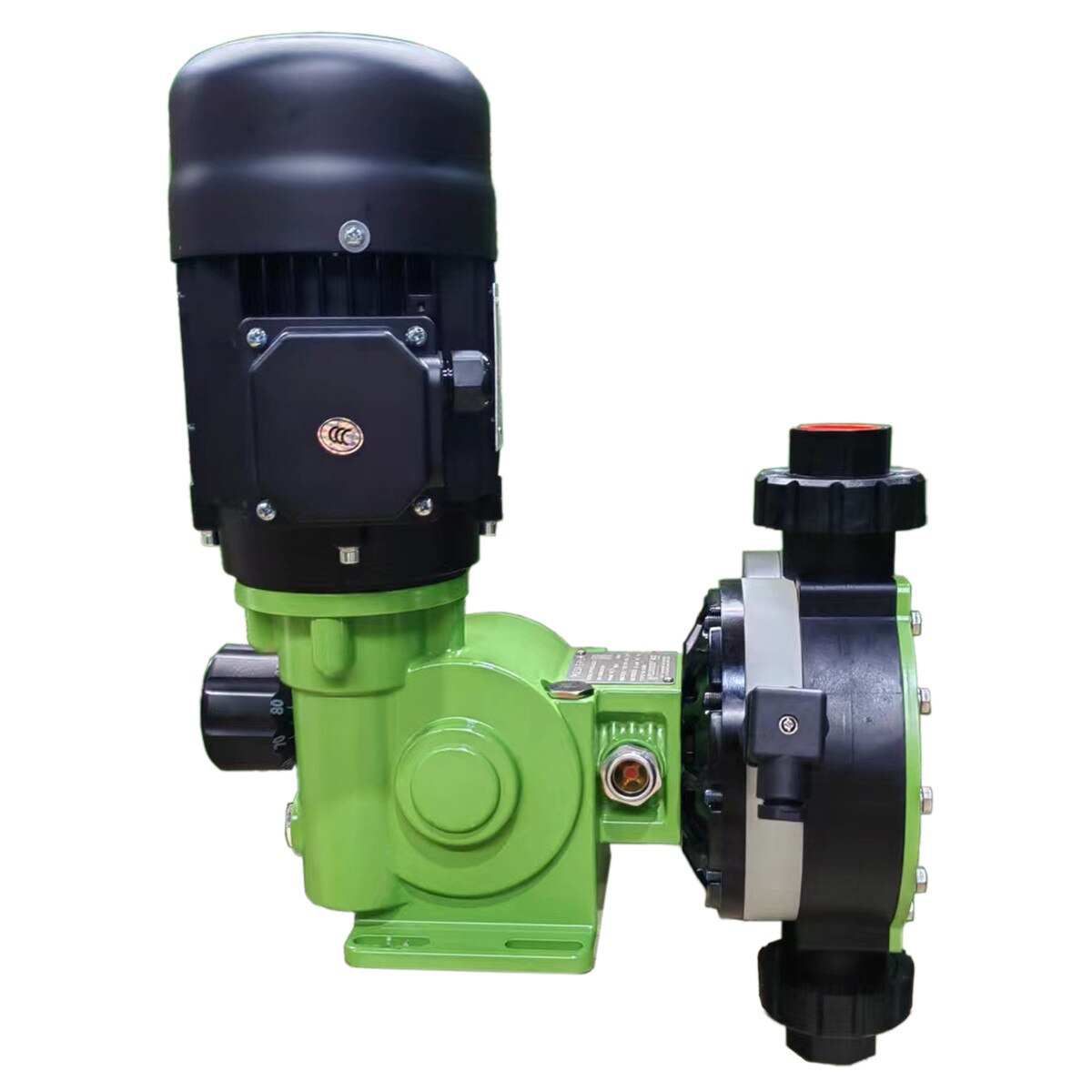

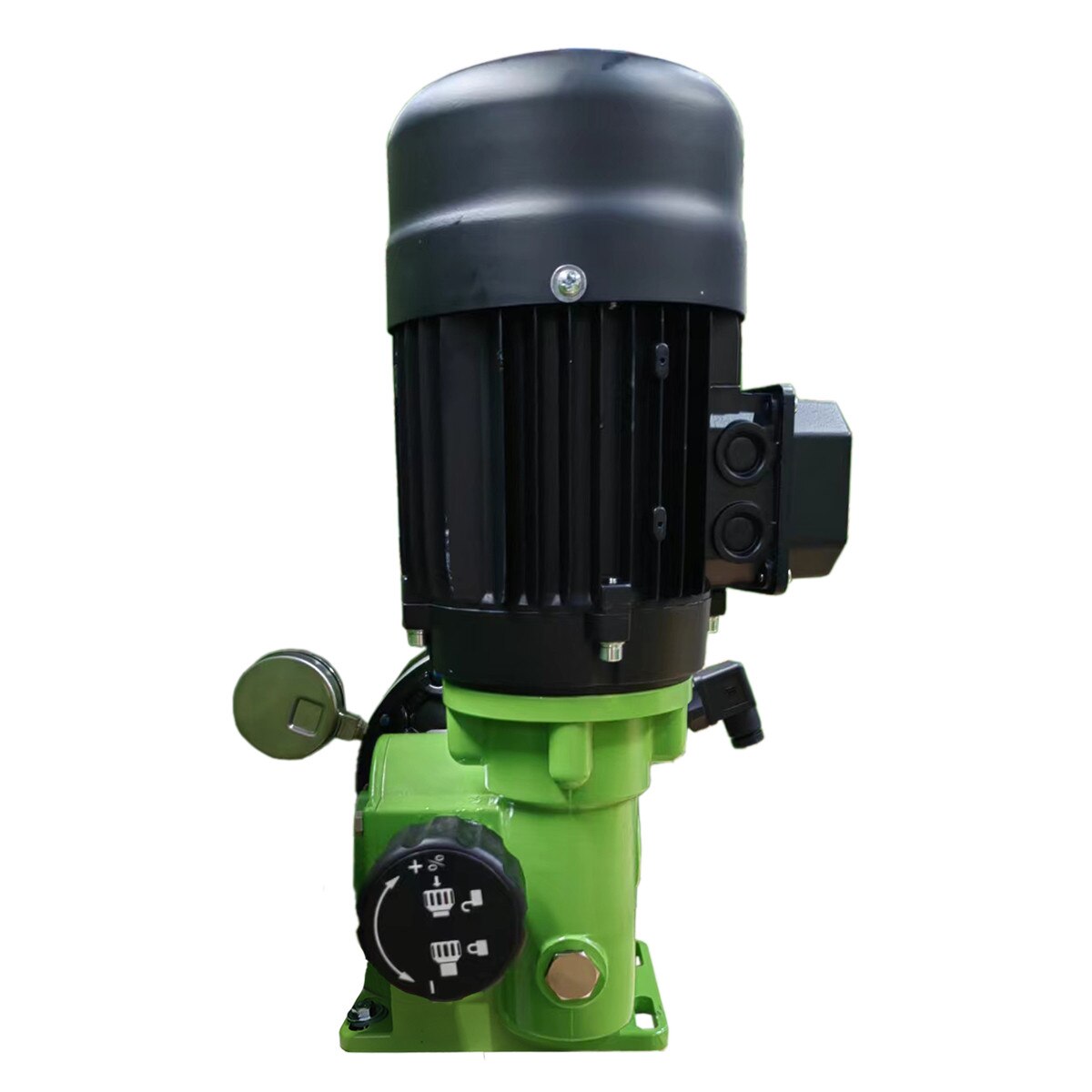

The GreenLine‑GLM DM2A1FC‑L is a mechanically actuated diaphragm metering pump designed for accurate and reliable chemical dosing, especially in corrosive or aggressive chemical environments. This model features a PVDF liquid end for superior chemical resistance, a 115/230 V TEFC motor, and a factory leak detection package that includes a double diaphragm, pressure gauge, and a 24 VDC leak detection switch. Rated for 7.9 gph (30 lph) at 145 psi (10 bar), the DM2A1FC‑L is ideal for water treatment, chemical processing, and industrial applications requiring enhanced containment and safety.
Specifications
- Max Flow: 7.9 gph (30 lph)
- Max Pressure: 145 psi (10 bar)
- SPM @ 60 Hz: 88 strokes/min
- Motor: 0.50 HP (0.37 kW), TEFC, 115/230 V, 60 Hz, 1‑phase
- Leak Detection: Double diaphragm, pressure gauge, 24 VDC / 0.5 A switch
- Suction Lift: 10 ft (3 m)
- Process Temperature: 32–113 °F (0–45 °C)
- Ambient Temperature: 32–113 °F (0–45 °C)
- Accuracy: ±2% of set point
- Stroke Adjustment: 0–100%, 1% resolution, auto‑locking
- Viscosity: up to 1,000 cPs
- Connections: 0.5″ FNPT suction / 0.5″ FNPT discharge
- Approximate Weight: 59 lb (pump with motor + leak detection)
Materials of Construction
- Wet End: PVDF (head, valve guides, valve seats, valve caps)
- Check Balls: Ceramic
- Valve O‑Rings: PTFE
- Diaphragm: Composite PTFE, double‑sided PTFE coating
- Housing: Epoxy‑painted aluminum
- Hardware: Stainless steel
- Lubrication: Oil bath gearbox with accessible fill and sight glass
Key Features & Benefits
- Leak detection package provides early warning of diaphragm failure for enhanced safety
- PVDF liquid end offers excellent resistance to acids, oxidizers, and corrosive chemicals
- Auto‑locking stroke adjustment ensures drift‑free accuracy
- Spherically uniform velocity check valves improve priming and reduce turbulence
- Compact, sealed gearbox reduces noise and protects internal components
- Never‑seize motor coupling for easy motor installation and removal
- NSF/ANSI/CAN 61 and NSF/ANSI 372 certified for many water treatment applications
Markets & Typical Applications
- Municipal and industrial water & wastewater treatment
- Handling aggressive chemicals, oxidizers, and corrosive solutions
- Power generation and boiler feed chemical dosing
- Chemical processing, refining, and petrochemical services
- Mining, metals, and mineral processing
- Dosing acids, caustics, polymers, biocides, cleaners, and other process chemicals
| Product Type: | Diaphragm Metering Pump, Mechanically Driven |
| Brand: | Pulsafeeder |
| Product Line: | GreenLine |
| Housing: | Epoxy Painted Aluminum |
| Max Flow (GPH): | 7.9 |
| Max Flow (GPD): | 189.6 |
| Max Pressure (PSI): | 145 |
| Max Viscosity (CPS): | 1000 |
| Max Strokes per Minute: | 88 |
| Flow Control: | Manual stroke length adjustment (0 to 100%) |
| Turn Down Ratio: | 10:1 |
| Head/Fittings: | PVDF / PVDF |
| Valve Balls: | Ceramic |
| Diaphragm: | Composite PTFE |
| Valve / Seat / O-Ring: | PVDF / PTFE |
| Motor: | TEFC - NEMA 56C, 1P, 1/2 Hp |
| Connections: | 1/2" FNPT |
| Power Supply: | 115/230 VAC, 60 Hz, 1 Phase |
| Warranty: | 2 Year Limited Warranty |
| Net Weight: | 59 lbs |
| Packaging: | Each |
| Includes: | Installation, Operation, and Maintenance Instruction Manual |
| Working Environment: | 32 to 113°F (0 to 45°C) |
