PULSAtron Series HV Metering Pump, 12 GPD @ 150 PSI, 115 VAC (4-20 mA Input with Dual Manual Control and Stop Function Input)
Images are for representation only. Actual product may differ in size, color or options.

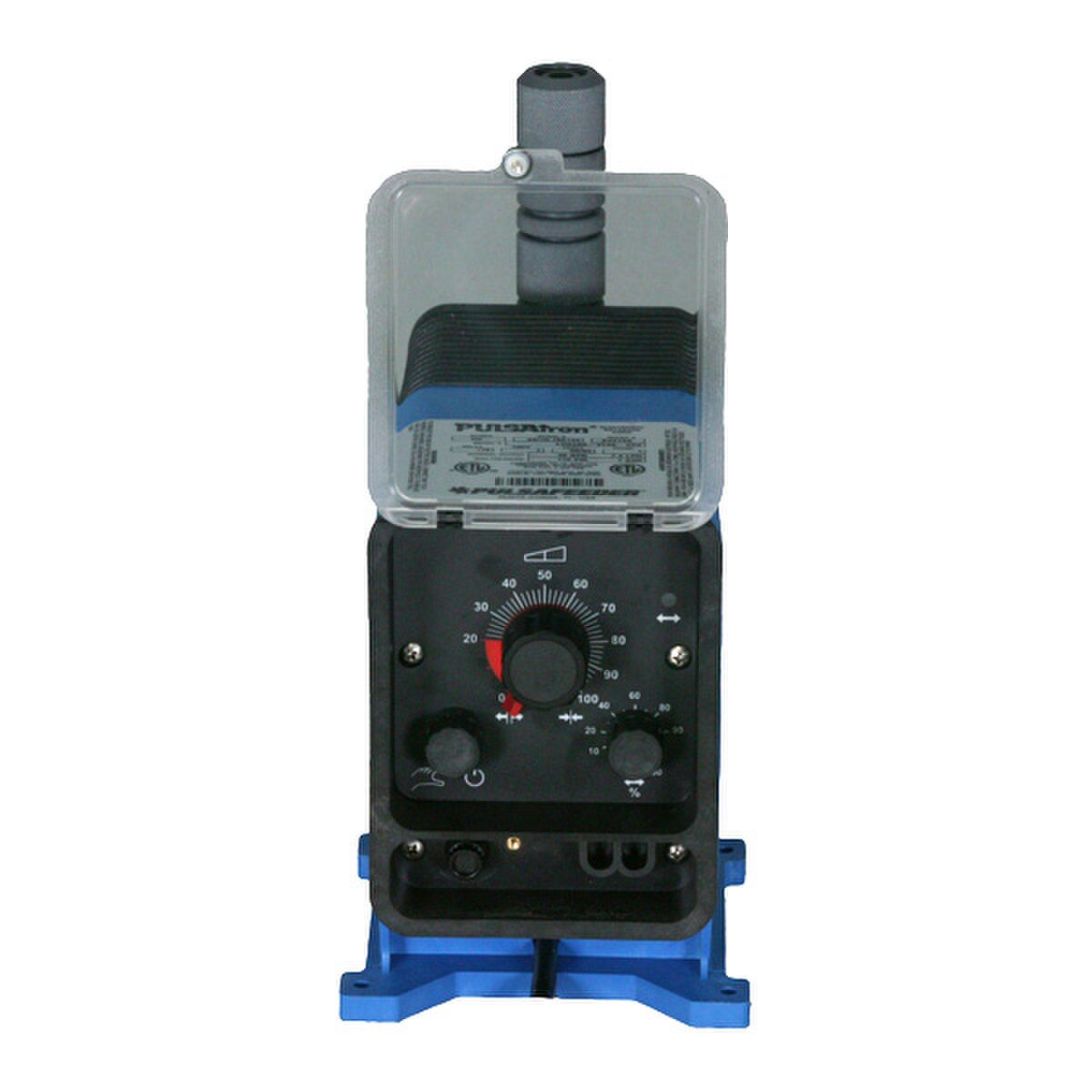

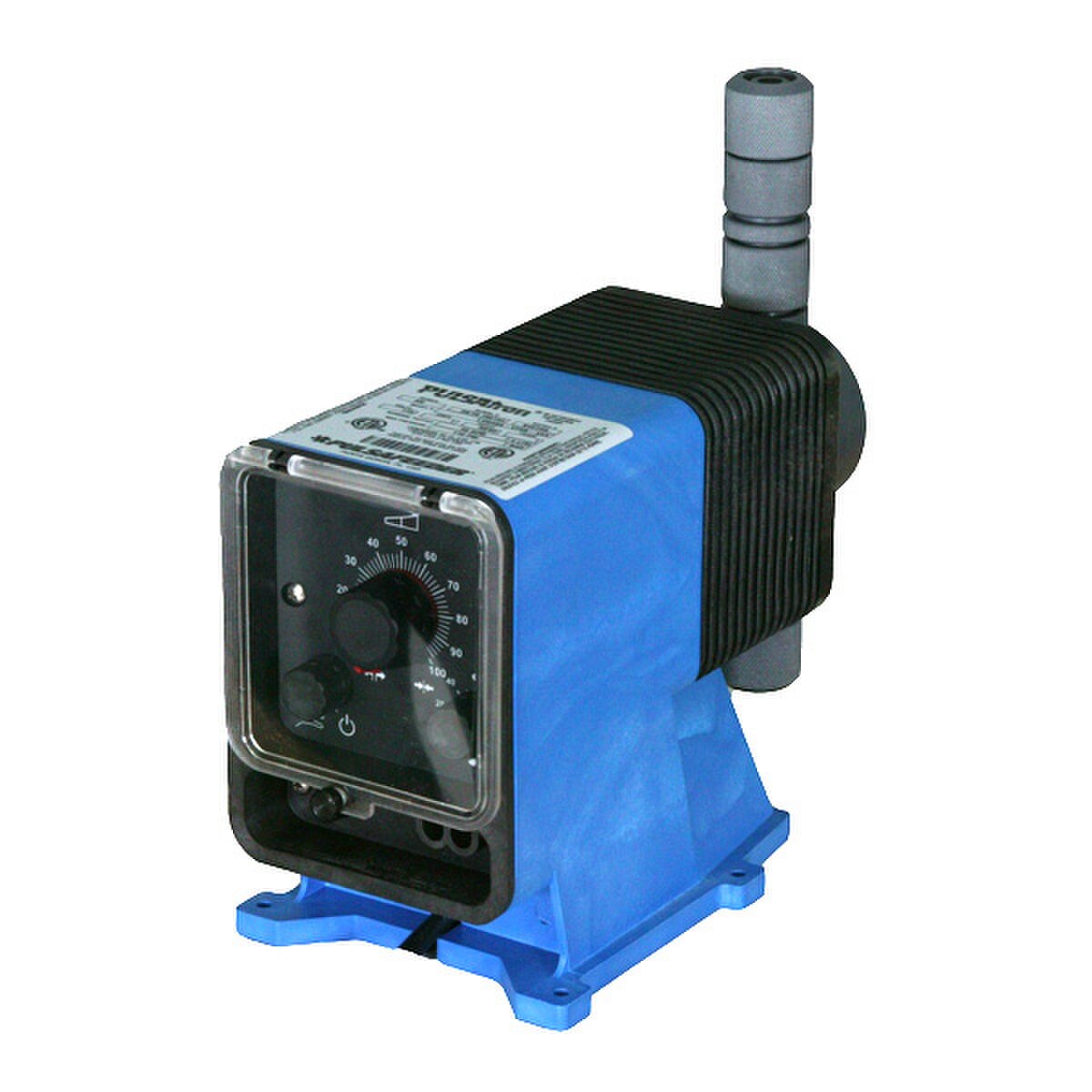

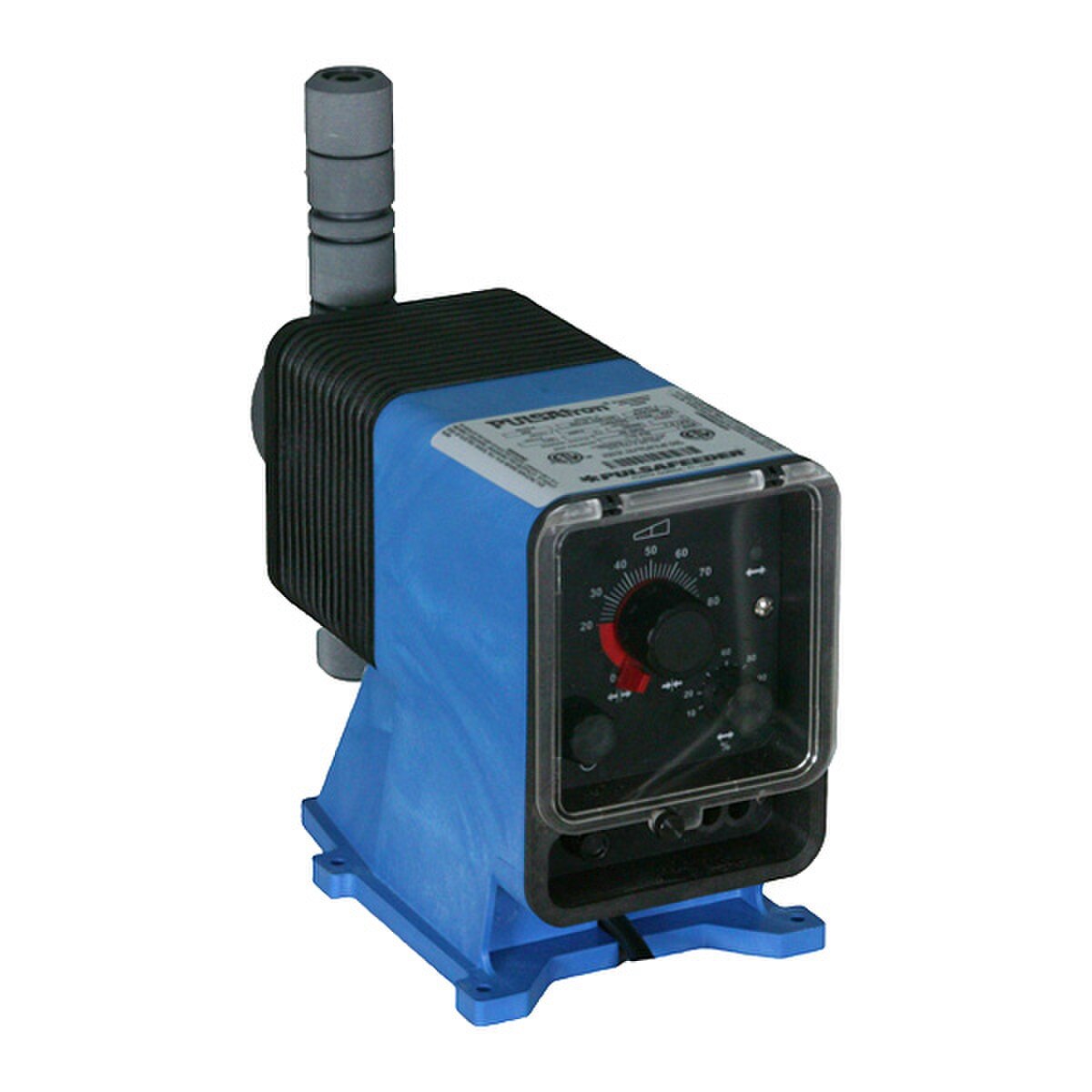

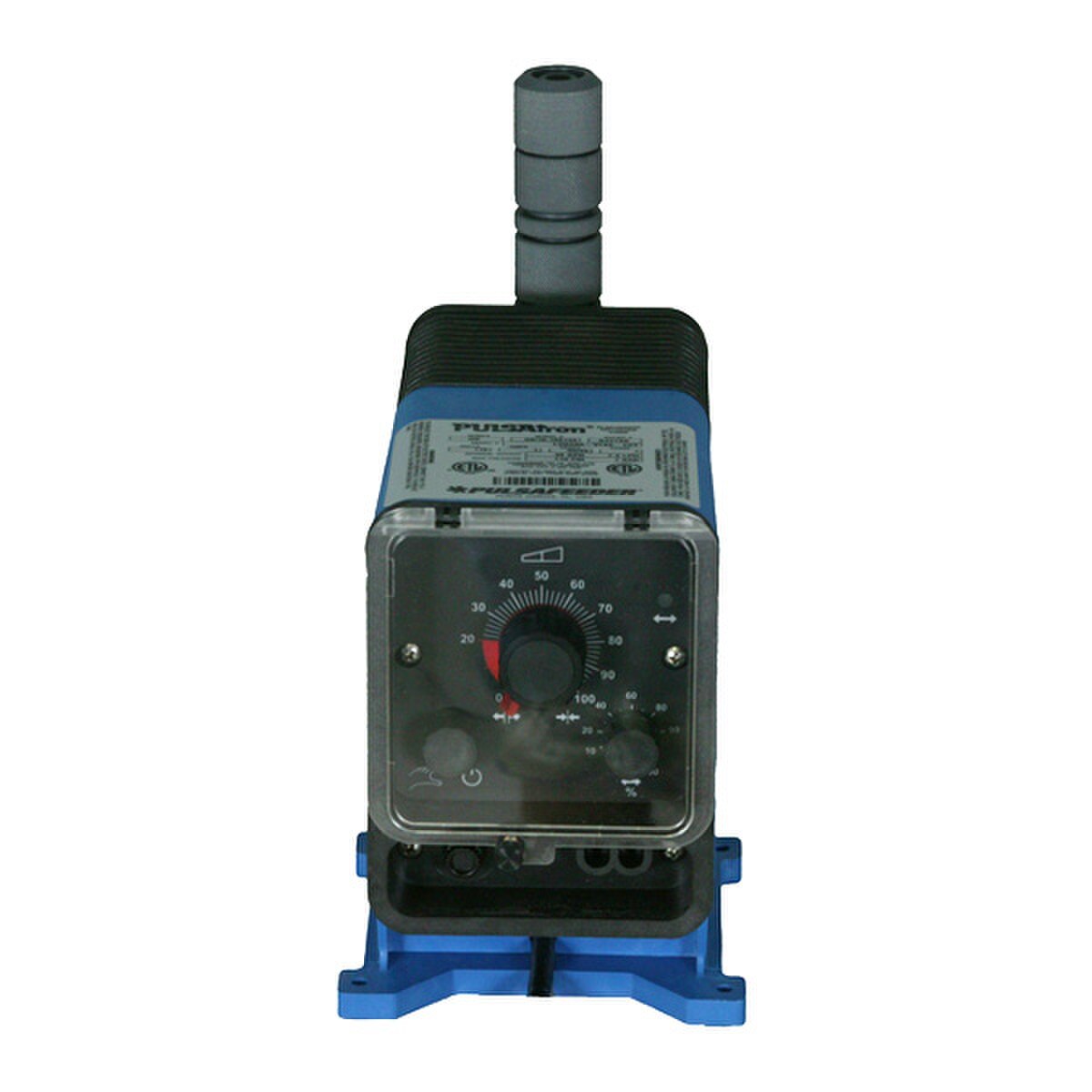

PULSAtron Series HV Metering Pump
12 GPD @ 150 PSI, 115 VAC
4-20 mA Input with Dual Manual Control and Stop Function Input
Stroke frequency control via 4-20 mA signal input, manual stroke length control. Stroke frequency is manually adjustable when in local control. Includes stop function input.
General Description
Pulsafeeder PULSAtron Series HV (High Viscosity) chemical metering pumps are positive displacement, diaphragm type pumps. Output volume is adjustable while pumps are in operation from zero to maximum capacity. The PULSAtron Series HV offers accurate metering of fluids with viscosities up to 20,000 CPS. Series HV has a guided check valves, with state-of-the-art seat and ball designs, providing precise seating and excellent priming and suction lift characteristics. The timing circuit is highly reliable and by design, virtually unaffected by temperature, EMI, and other electrical disturbances. The Series HV is also water resistant for both indoor and outdoor applications.
Pump Controls
Adjustment is by means of readily accessible dial knobs, one for changing stroke length and the other for changing stroke frequency. Both knobs are located opposite the liquid handling end. Automatic control via 4-20mA DC and stop function inputs. Auto-Off-Manual switch.
Drive Assembly
The pump drive is totally enclosed with no exposed moving parts. Electronics are housed in chemical resistant enclosure at the rear of the pump for maximum protection against chemical spillage. Average electrical power consumption is 130 Watts.
Materials of Construction
See Specifications tab. Chemical metering pump housing shall be of chemically resistant PBT thermoplastic. All exposed fasteners are stainless steel. Valve seat and seal ring are renewable by replacing the cartridge valve assembly.
Pulsafeeder PULSAtron Series HV Chemical Metering Pump - Key Features
12 GPD @ 150 PSI, 115 VAC
4-20 mA Input with Dual Manual Control and Stop Function Input
Stroke frequency control via 4-20 mA signal input, manual stroke length control. Stroke frequency is manually adjustable when in local control. Includes stop function input.
General Description
Pulsafeeder PULSAtron Series HV (High Viscosity) chemical metering pumps are positive displacement, diaphragm type pumps. Output volume is adjustable while pumps are in operation from zero to maximum capacity. The PULSAtron Series HV offers accurate metering of fluids with viscosities up to 20,000 CPS. Series HV has a guided check valves, with state-of-the-art seat and ball designs, providing precise seating and excellent priming and suction lift characteristics. The timing circuit is highly reliable and by design, virtually unaffected by temperature, EMI, and other electrical disturbances. The Series HV is also water resistant for both indoor and outdoor applications.
Pump Controls
Adjustment is by means of readily accessible dial knobs, one for changing stroke length and the other for changing stroke frequency. Both knobs are located opposite the liquid handling end. Automatic control via 4-20mA DC and stop function inputs. Auto-Off-Manual switch.
Drive Assembly
The pump drive is totally enclosed with no exposed moving parts. Electronics are housed in chemical resistant enclosure at the rear of the pump for maximum protection against chemical spillage. Average electrical power consumption is 130 Watts.
Materials of Construction
See Specifications tab. Chemical metering pump housing shall be of chemically resistant PBT thermoplastic. All exposed fasteners are stainless steel. Valve seat and seal ring are renewable by replacing the cartridge valve assembly.
Pulsafeeder PULSAtron Series HV Chemical Metering Pump - Key Features
- Viscosities to 20,000 CPS.
- Manual Control by on-line adjustable stroke rate and stroke length.
- Highly Reliable timing circuit.
- Circuit Protection against voltage and current upsets.
- Panel Mounted Fuse.
- Solenoid Protection by thermal overload with auto-reset.
- Water Resistant, for outdoor and indoor applications.
- Indicator Lights, panel mounted.
- Guided Ball Check Valve Systems, to reduce back flow and enhance outstanding priming characteristics.
- Reliable metering performance.
- Rated "hot" for continuous duty.
- Leak-free, sealless, liquid end.
| Product Type: | Diaphragm Metering Pump, Solenoid Driven |
| Brand: | Pulsafeeder |
| Product Line: | PULSAtron Series HV |
| Max Flow (GPH): | 0.50 |
| Max Flow (GPD): | 12 |
| Max Pressure (PSI): | 150 |
| Max Viscosity (CPS): | 20,000 |
| Max Strokes per Minute: | 125 |
| Flow Control: | 4-20 mA Input with Dual Manual Control and Stop Function Input |
| Turn Down Ratio: | 100:1 |
| Head/Fittings: | GFPPL |
| Valve Balls: | TFE |
| Diaphragm: | PTFE faced CSPE |
| Valve / Seat / O-Ring: | TFE |
| Connections: | Tubing 3/4" O.D. (S) & 1/2" (D) |
| Power Supply: | 115 VAC 50/60 Hz, US Plug |
| Operating Modes: | 4-20 mA / Off / Manual |
| Net Weight: | 13 lbs |
| Includes: | A 1/2" NPT male injection fitting/back pressure check valve assembly, 4' suction tubing, 8' discharge tubing and Owners Manual. |
