USS-MFPI01
Images are for representation only. Actual product may differ in size, color or options.
Michelson & Fabry-Perot Interferometer (each)
General Description

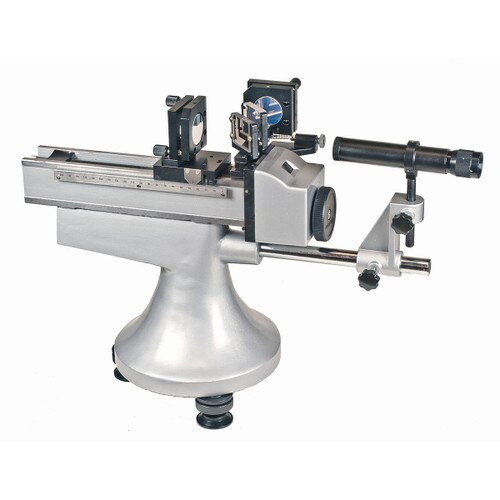

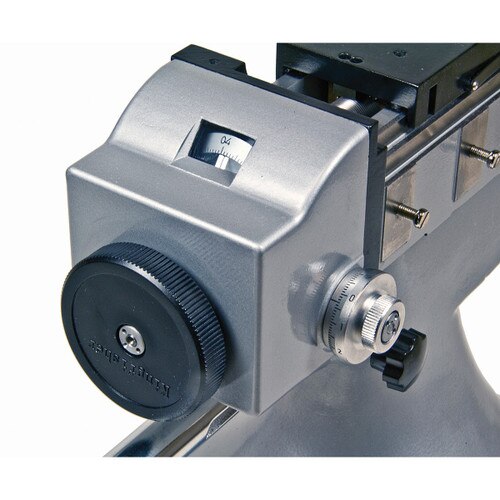

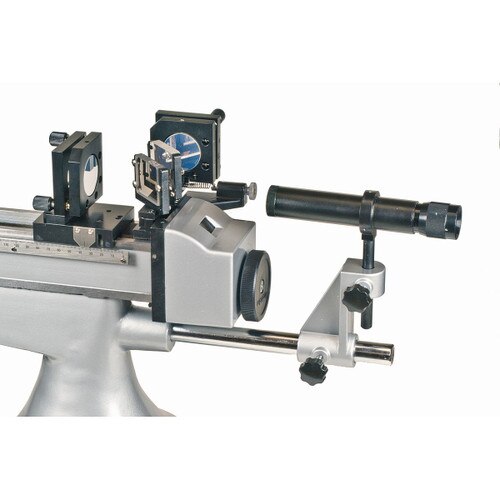

The Michelson/Fabry-Pérot Interferometer base consists of a substantial casting that supports a machined and ground lathe bed at a convenient height for observation. The lathe bed has a precise 1mm pitch geared lead screw to adjust the movable mirror carriage. The large coarse adjustment knob sets the mirror position to within 0.01mm, read on a 205mm divided steel scale and a numbered dial for fractions of a millimeter. A further graduated fine adjustment knob reads to 0.0001mm, and is an excellent control for precise displacements and ring counting. The interferometer optics fixed parts are mounted on vertical steel plates.
• Precise, solidly constructed instrument for advanced studies
• Easily interchangeable Michelson and Fabry-Pérot configurations
• Precision geared mirror drive for 0.0001mm resolution
General Description
The Michelson/Fabry-Pérot Interferometer base consists of a substantial casting that supports a machined and ground lathe bed at a convenient height for observation. The lathe bed has a precise 1mm pitch geared lead screw to adjust the movable mirror carriage. The large coarse adjustment knob sets the mirror position to within 0.01mm, read on a 205mm divided steel scale and a numbered dial for fractions of a millimeter. A further graduated fine adjustment knob reads to 0.0001mm, and is an excellent control for precise displacements and ring counting. The interferometer optics fixed parts are mounted on vertical steel plates.
• Precise, solidly constructed instrument for advanced studies
• Easily interchangeable Michelson and Fabry-Pérot configurations
• Precision geared mirror drive for 0.0001mm resolution
| Product Type: | Michelson & Fabry-Perot Interferometer |
| Brand: | United Scientific |
| Class: | Advanced Physics |
