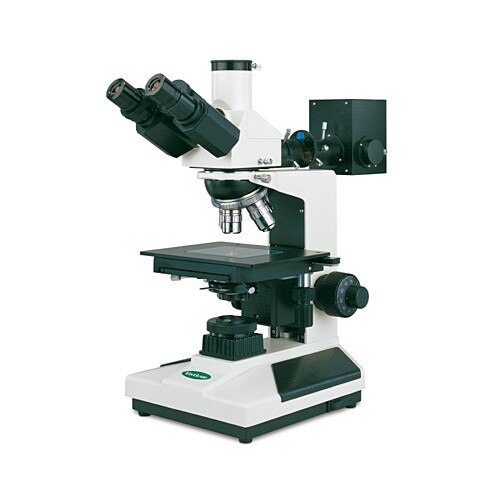

VanGuard Trinocular Industrial Metallurgical Reflected and Transmitted Illumination Microscope, 4X, 10X, 20X, 40X Plan Achromatic Objectives
Images are for representation only. Actual product may differ in size, color or options.
VanGuard Trinocular Industrial Metallurgical Reflected and Transmitted Illumination Microscope
VanGuard 1200MM Series Industrial Microscopes featuring reflected illumination, as well as long working distance objectives, are perfect for the inspection of integrated circuits, wafers, electronic components, metals, polymers, paint, textiles, and essentially any other opaque sample.
Features:
VanGuard 1200MM Series Industrial Microscopes featuring reflected illumination, as well as long working distance objectives, are perfect for the inspection of integrated circuits, wafers, electronic components, metals, polymers, paint, textiles, and essentially any other opaque sample.
Features:
- Reflected & Transmitted Light Models
- Precision Optics
- Polarization
- 5-Year Warranty
| Product Type: | Metallurgical Reflected and Transmitted Illumination Microscope |
| Brand: | VEE GEE Scientific |
| Class: | Industrial |
| Grade: | Intermediate |
| Power Supply: | 110 VAC (220 VAC available upon request) |
| Base: | 210 x 180 mm; Anti-Skid Rubber Feet |
| Body: | Cast Metal w/ Stain-Resistant Enamel Finish |
| Camera Port: | 100/100 Split |

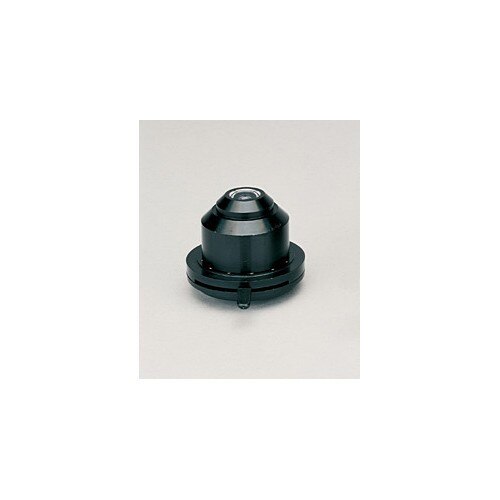

| Condenser: | 1.25 N.A. Abbe; Iris Diaphragm; Swing-Out Filter Holder; Rack & Pinion Focusing Control |
| Dioptric Adjustment: | -5 to +5 |
| Eyepieces: | 20 mm F.D. |
| Eyepiece Type: | Super Widefield |
| Eyepiece Magnification: | 10X |
| Focusing: | Coaxial, Low Position, Coarse/Fine Controls; Tension Adjustment; Safety Auto-Stop; 40 mm Focusing Range; 0.002 mm Precision |
| Head: | Trinocular |
| Illumination: | Condenser, Iris Diaphragm (2), Four-Color Filter Wheel, Polarizing Filter (Upper System); 20 W Variable Quartz Halogen (Upper) |
| Interpupillary Adjustment: | 55-75 mm |
| Nosepiece: | 4-Position; Reverse Pitch |

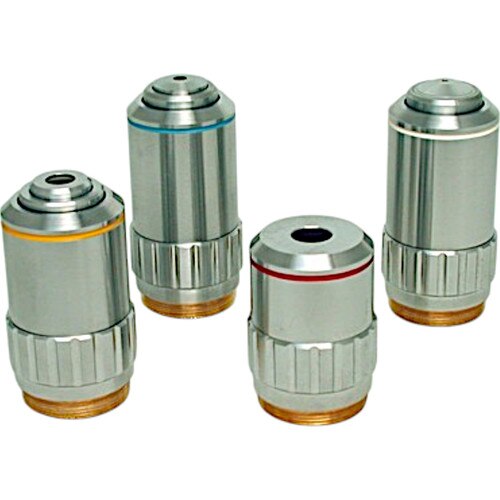

| Objective Magnification: | 4X, 10X, 20X, 40X |
| Objective Type: | Plan Achromatic |
| Stage: | Rectangular 185 x 140 mm Mechanical; Drop-Down, Right-Hand, Rack & Pinion X-Y Control, 70 x 30 mm Cross Travel Range; Chemical-Resistant Finish |
| Stage Insert: | 77 x 98 mm Glass Insert |
| Viewing Head: | 30° Inclination; 360° Rotatable |
| Warranty: | 5-Year Optical/Mechanical; 1-Year Electrical |
| Net Weight: | 18.96 lbs. |
| Overall Dimensions: | 250 (L) x 200 (W) x 435 (H) mm |

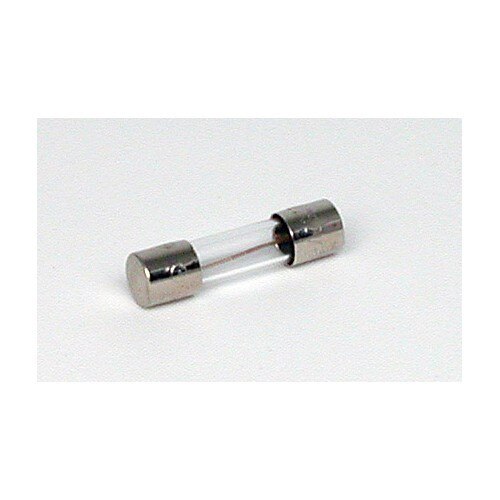

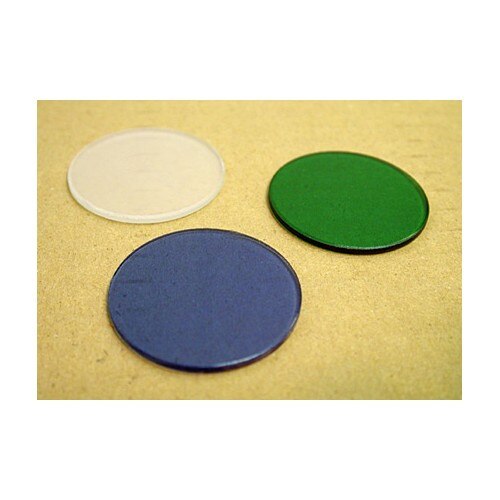

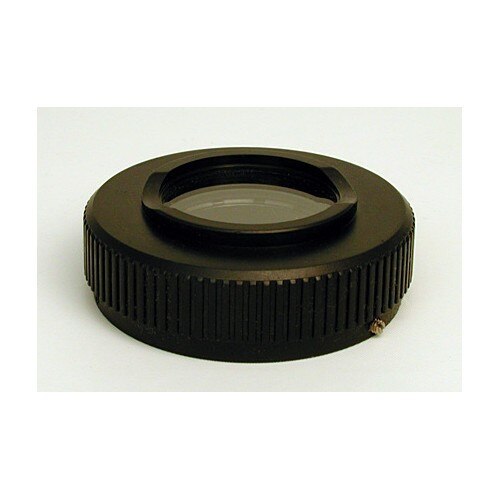

| Includes: | Substage Polarizing Analyzer, Dispersion Filter, Blue Filter, Spare Lamp & Fuse, Dust Cover, & Operation Manual |
