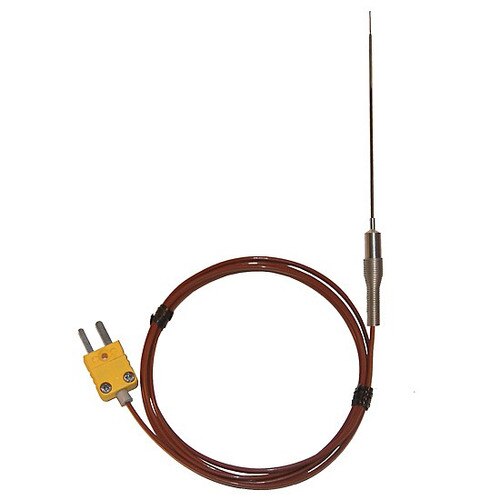

Digi-Sense Type-K Thermocouple Probe, Low Mass, 4 inch L x 0.063 inch Dia, Grounded Junction, 4 feet Cable, Mini ANSI Connector (each)

(0) No Reviews yet
$43.78 $51.50
QuantityPrice
1$43.78
2 – 3$41.20
4 +$38.63
SKU: WD-08117-60
Item Number: WD-08117-60
Manufacturer: Oakton Instruments
Brand: Digi-Sense
MPN: WD-08117-60
Condition: New

New

Digi-Sense Type-K Thermocouple Probe, Low Mass, 4 inch L x 0.063 inch Dia, Grounded Junction, 4 feet Cable, Mini ANSI Connector (each)

Gerneral-Purpose Micro-Probes are designed for use with liquids, gases and semisolids.
  • Ideal for Checking Food Temperature
  • Response Time: 0.5 seconds or greater
  • Probe comes with Stainles Steel Handle
  • Probe handles feature a strain relief spring that protects the cable connection against damage due to repeated flexing and tugging
  • Probe comes with a color coded ANSI mini connector: type K-yellow
  • Note: The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. Mini Connectors are rated to 392°F (200°C).


    Product Type: Thermocouple Probe
    Brand: Digi-Sense
    Class: Type-K
    Grade: Low Mass
    Material: 316 Stainless Steel
    Temperature Range: -418 to 450°F (-150 to 232°C)
    Temperature Accuracy: ±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
    Connections: Mini ANSI Connector
    Probe Length: 4 inches x 0.063 inch diameter
    Cable Length: 4 feet
    Overall Dimensions: Sheath: 4 inch length x 0.063 inch dia, Tip: 0.020 inch dia, Handle: 1.5 inch length
    Notes: Grounded Junction
