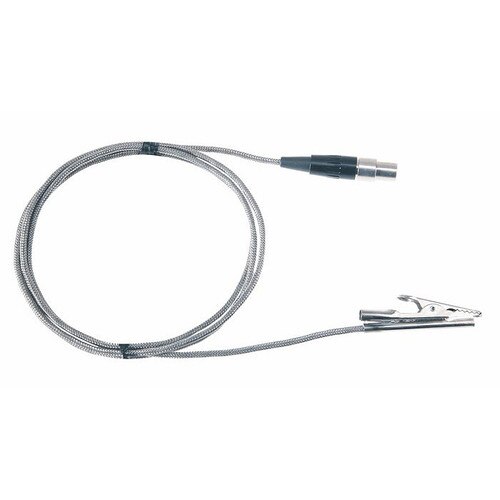

Digi-Sense Alligator Clip RTD Probe, 100 Ohm, Digi-Sense® 3-Pin Connector, 1.39" Length, 10 ft Stainless Steel Braid Cable

Digi-Sense RTD Probe, Alligator Clip, 1.39 inch L, 10 feet Braided Stainless Steel Cable, Digi-Sense 3-pin connector (each)

Designed for long term applications or unique environment requirements and to give the same accuracy and benefits of a RTD Probe in a compact economical design. These 100? RTD probes are for general-purpose use with liquids, gases and semisolids.

• Time constant : 1-3 seconds or greater

Maximum error for probe assembly is ±1.1°C + 0.12% of reading below 300°F, ±0.35% of reading above 300°F. Alpha coefficient is 0.003850 omega/omega/°C (DIN IEC 751). Resistance at ice point (0°C) is 100 omega.

Note: Time constant is the time required to reach 63.2% of the new reading. To determine how long it will take to reach 99% of the new reading multiply the time constant by five.

Note: The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C).
