Digi-Sense Type-T, Compact Surface Probe, 4.5" L, Mini-Connector, Exposed, 5ft Coil

(0)No Reviews yet
$63.53 $72.60
4 – 9$61.71
10 +$59.90
SKU: WD-08439-74
Item Number: WD-08439-74
Model Number: 08439-74
Manufacturer: Oakton Instruments
Brand: Digi-Sense
MPN: 08439-74
Condition: New

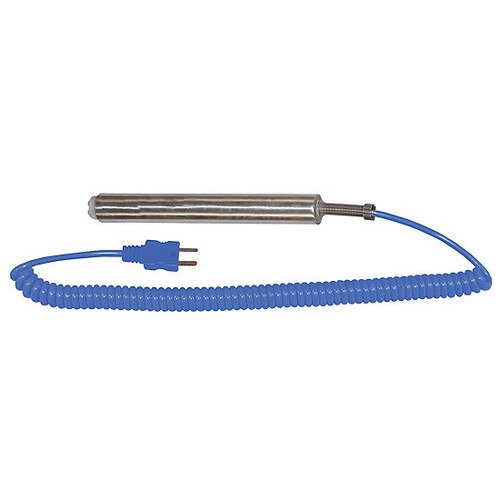

Digi-Sense Type-T Thermocouple Probe, Surface, 4.75 inch L, Exposed Junction, 5 feet Cable, Mini ANSI Connector (each)

Use to monitor hot plates, furnaces, molds, or any other flat surface

  • Ideal for hard to reach places or lower temperature applications
  • Response Time: 1.25 seconds or greater
  • Each probe comes with color coded ANSI Mini-Connectors: type T-blue
Note: The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); Mini Connectors are rated to 392°F (200°C).

Product Type: Thermocouple Probe
Brand: Digi-Sense
Class: Type-T
Grade: Surface
Material: Aluminum housing w/Ceramic, ABS Plastic
Temperature Range: -328 to 500°F (-200 to 260°C)
Temperature Accuracy: ±3.6°F (2.0°C), or ±0.4% of reading above 32°F (0°C); ±0.8% of reading below 32°F (0°C)
Connections: Mini ANSI Connector
Probe Length: 4.75 inches
Cable Length: 5 feet
Overall Dimensions: Sheath: 4.75 inch
Notes: Exposed Junction
