Digi-Sense Type-K High-Temperature Ceramic Fiber-Insulated Probe Mini-Connector, Exposed 5ft 20 -Gauge

(0)No Reviews yet
$57.31 $65.50
4 – 9$55.68
10 +$54.04
SKU: WD-08467-64
Item Number: WD-08467-64
Model Number: 08467-64
Manufacturer: Oakton Instruments
Brand: Digi-Sense
MPN: 08467-64
Condition: New

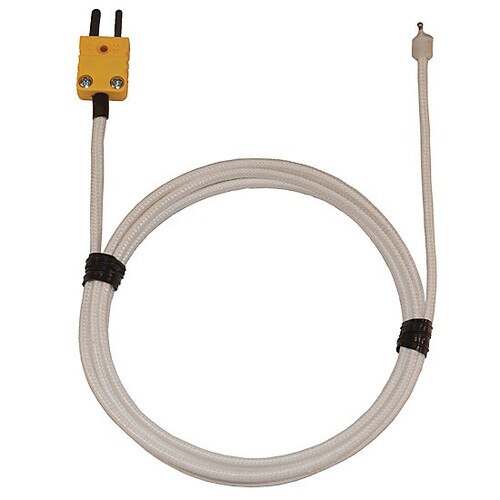

Digi-Sense Type-K Thermocouple Probe, 60 inch L, High-Temperature Ceramic Insulated Wire, Exposed Junction, 20 Gauge, 10 feet Cable, Mini ANSI Connector (each)

Ceramic Fiber Insulated Wire Used for High-Temperature Measurements

  • Ceramic fiber cannot be handled after 800°F (426°C) due to flaking of insulation
  • Response Time: 0.75 seconds or greater
  • All insulated-wire probes include straight insulated cable with no handle and feature ANSI color Mini-Connectors: type K-yellow
Note: The temperature range is for the probe tip only. Mini Connectors are rated to 392°F (200°C).

Product Type: Thermocouple Probe
Brand: Digi-Sense
Class: Type-K
Material: High-Temperature Ceramic Fiber Insulated
Temperature Range: -250 to 2000°F (-150 to 1093°C)
Temperature Accuracy: ±3.0°F(1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F(2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F(4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Connections: Mini ANSI Connector
Probe Length: 60 inches
Cable Length: 10 feet
Unit Size: 20 Ga
Overall Dimensions: Sheath: 60 inch length
Notes: Exposed Junction
