Digi-Sense Type-T Pipe-ftg Probe SS Handle Mini-Connector, 4" L .188" Dia Grounded 6ft Cable

(0)No Reviews yet
$60.11 $68.70
QuantityPrice
1$60.11
4 +$58.40
SKU: CPI-08500-71
Item Number: CPI-08500-71
Model Number: 08500-71
Manufacturer: Oakton Instruments
Brand: Digi-Sense
MPN: 08500-71
Condition: New

New

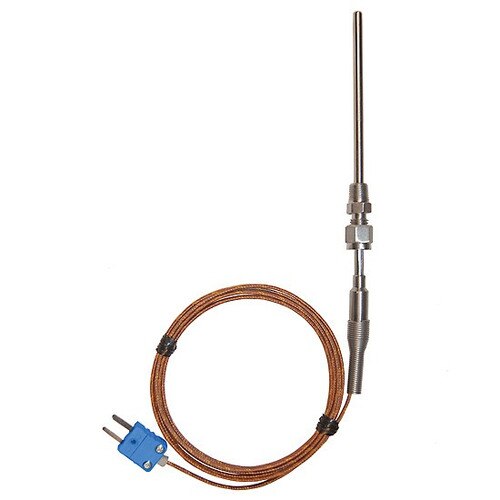

Digi-Sense Type-T Thermocouple Probe, Pipe-Fitting, 4 inch L x 0.188 inch Dia., 1/8 inch NPT, Grounded Junction, 24 Gauge, 6 feet Insulated Wire Cable, Mini ANSI Connector (each)

Thermocouple pipe-fitting probes ideal for high temperature environments or pressurized chambers

  • Response Time: 3 seconds or greater
  • Each Probe comes with a one-time adjustable stainless steel compression fitting with a 1/8 inch NPT process
  • Compression fittings can hold up to 2000 psi once installed
  • Fiberglass insulated cable ideal for continuous high temperature environments
  • Each probe comes with a color coded ANSI Mini-Connectors: type T-blue
Note: The temperature range is for the probe tip only. Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).


Product Type: Thermocouple Probe
Brand: Digi-Sense
Class: Type-T
Grade: Pipe-Fitting
Material: 316 Stainless Steel
Temperature Range: -328 to 500°F (-200 to 260°C)
Temperature Accuracy: ±2.7°F (1.5°C), or ±0.4% of reading above 32°F (0°C); ±0.8% of reading below 32°F (0°C)
Connections: Mini ANSI Connector
Probe Length: 4 inches length x 0.188 inch diameter
Cable Length: 6 feet
Unit Size: 24 Ga
Overall Dimensions: Sheath: 4 inch length x 0.188 inch dia; Handle: 1.5 inch length
Notes: Grounded Junction
