Digi-Sense Type-K, Small-Diameter Standard Probe, Mini-Connector, 8" L, .063 Dia, Grounded

(0)No Reviews yet
$98.66 $112.75
4 – 9$95.84
10 +$93.02
SKU: WD-08505-62
Item Number: WD-08505-62
Model Number: 08505-62
Manufacturer: Oakton Instruments
Brand: Digi-Sense
MPN: 08505-62
Condition: New

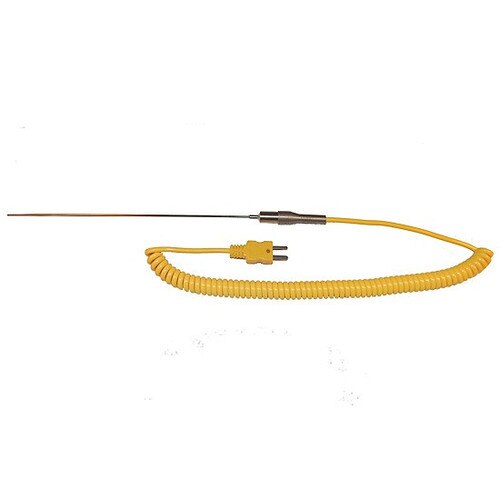

Digi-Sense Type-K Thermocouple Probe, General Purpose Small Diameter, 8 inch L x 0.0625 inch Dia, Grounded Junction, 5 feet Cable, Mini ANSI Connector (each)

General-Purpose Probes are designed for use with liquids, gases and semisolids

  • Ideal for Checking Food Temperature
  • Response Time: 1.2 seconds or greater
  • Probe comes with Stainless Steel Handle
  • Probe handles feature a strain relief spring that protects the cable connection against damage due to repeated flexing and tugging
  • Each probe comes with color coded ANSI Mini-Connectors: type K-yellow
Note: The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).

Product Type: Thermocouple Probe
Brand: Digi-Sense
Class: Type-K
Grade: General Purpose Small Diameter
Material: 316 Stainless Steel
Temperature Range: -250 to 1500°F (-150 to 816°C)
Temperature Accuracy: ±3.0°F(1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F(2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F(4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Connections: Mini ANSI Connector
Probe Length: 8 inches length x 0.0625 inch diameter
Cable Length: 5 feet
Net Weight: .04 lbs
Overall Dimensions: Sheath: 8 inch length x 0.0625 inch dia; Handle: 1.5 inch length
Notes: Grounded Junction
