Digi-Sense Type-J Needle Microprobe Mini-Connector, 0.75" L .020 Dia Grounded 5ft FEP Cable

(0)No Reviews yet
$104.13 $119.00
4 – 9$101.15
10 +$98.18
SKU: WD-08505-97
Item Number: WD-08505-97
Model Number: 08505-97
Manufacturer: Oakton Instruments
Brand: Digi-Sense
MPN: 08505-97
Condition: New

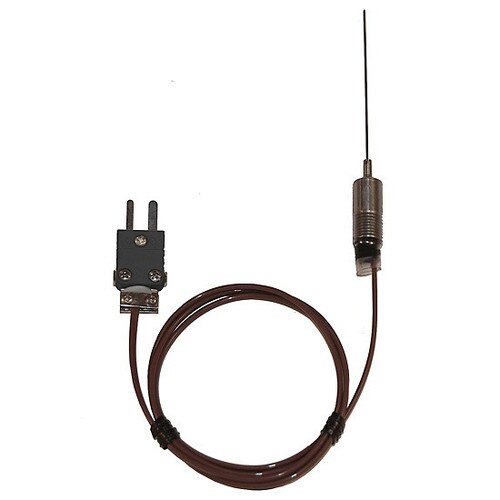

Digi-Sense Type-J Thermocouple Probe, Needle Tip, 0.75 inch L x 0.02 inch Dia, Grounded Junction, 5 feet FEP Insulated Cable, Mini ANSI Connector (each)

Micro Needle Penetration Probes are designed for soft and semi-soft materials without disturbing large sample areas

  • Ideal For Checking Food Temperatures
  • Response Time: 0.5 seconds or greater
  • Probe comes with a Stainles Steel Handle
  • Probe comes with a color coded ANSI mini connector: type J-black
Note: The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).

Warning: This product is not approved or intended for, and should not be used for medical, clinical, surgical or other patient oriented applications.

Product Type: Thermocouple Probe
Brand: Digi-Sense
Class: Type-J
Grade: Needle Tip
Material: 316 Stainless Steel
Temperature Range: 32 to 392°F (0 to 200°C)
Temperature Accuracy: ±5.9°F (3.3°C), or ±0.4% of reading above 32°F (0°C); ±4.0% of reading below 32°F (0°C)
Connections: Mini ANSI Connector
Probe Length: 0.75 inches x 0.02 inch diameter
Cable Length: 5 feet
Overall Dimensions: Sheath: 0.75 inch length x 0.02 dia, Handle: 1.5 inch length
Notes: Grounded Junction
