Digi-Sense Type-K Compact Surface Probe 4.5" L Mini-Connector, ector Exposed 5ft Fiberglass / SS Cable

(0)No Reviews yet
$68.43 $78.20
4 – 9$66.47
10 +$64.52
SKU: WD-08514-66
Item Number: WD-08514-66
Model Number: 08514-66
Manufacturer: Oakton Instruments
Brand: Digi-Sense
MPN: 08514-66
Condition: New

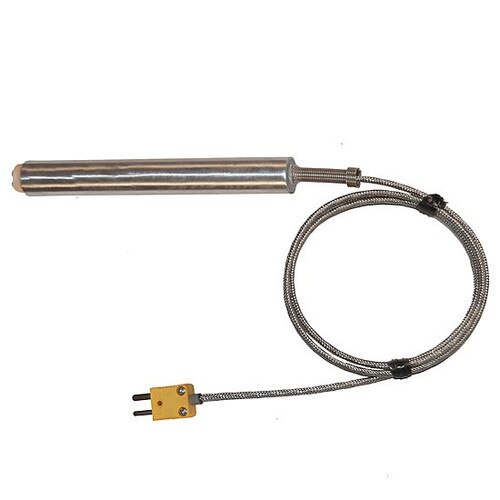

Digi-Sense Type-K Thermocouple Probe, Compact Surface, 4.75 inch L x 0.63 inch Dia, Exposed Junction, 5 feet Braided SS Cable, Mini ANSI Connector (each)

Use to monitor hot plates, furnaces, molds, or any other flat surface

  • Ideal for hard to reach places or lower temperature applications
  • Response Time: 1.25 seconds or greater
  • Each probe comes with color coded ANSI Mini-Connectors: type K-yellow
Note: The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).

Product Type: Thermocouple Probe
Brand: Digi-Sense
Class: Type-K
Grade: Compact Surface
Material: Aluminum housing w/Ceramic, Aluminum
Temperature Range: -250 to 1200°F (-150 to 649°C)
Temperature Accuracy: ±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Connections: Mini ANSI Connector
Probe Length: 4.75 inches x 0.63 inch diameter
Cable Length: 5 feet
Pack Quantity: 1
Packaging: each
Overall Dimensions: Sheath: 4.75 inch length x 0.63 dia; Handle: 4.5 inch length
Notes: Exposed Junction
