Digi-Sense Type-K Bolt-On Probe 0.62" OD Mini-Connector, Grounded 25ft Strt Fiberglass Cable

(0)No Reviews yet
$48.48 $55.40
QuantityPrice
1$48.48
4 – 9$47.09
10 +$45.71
SKU: WD-08514-84
Item Number: WD-08514-84
Model Number: 08514-84
Manufacturer: Oakton Instruments
Brand: Digi-Sense
MPN: 08514-84
Condition: New

New

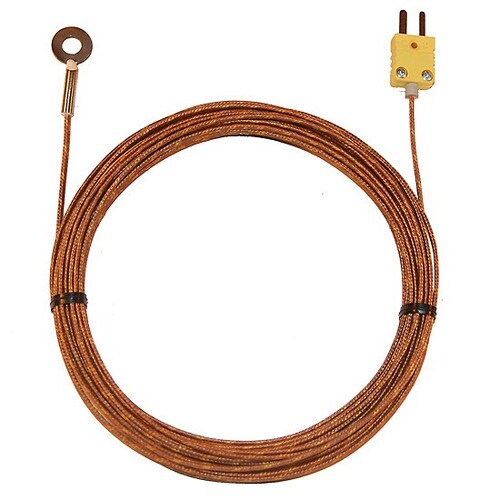

Digi-Sense Type-K Thermocouple Probe, Bolt-On, 0.62 inch OD x 0.28 inch ID, Grounded Junction, 25 feet Fiberglass Insulated Cable, Mini ANSI Connector (each)

Bolt-On probe for long term installation

  • Ideal for measuring machinery or mold temperatures, inside ovens or other hot dry environments
  • Response Time: 3 seconds or greater
  • Probe comes with a bolt on washer that is .62 inch OD and .28 inch ID for quick easy installation
  • Once installed, the rugged design allows for continuous long term readings
  • This probe is not recommended for damp or wet conditions
  • Each probe comes with a color coded ANSI coiled cable: type K-yellow
Note: The temperature range is for the probe tip only. Mini Connectors are rated to 392°F (200°C).


Product Type: Thermocouple Probe
Brand: Digi-Sense
Class: Type-K
Grade: Bolt-On
Material: 304 Stainless Steel
Temperature Range: -250 to 900°F (-150 to 482°C)
Temperature Accuracy: ±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Connections: Mini ANSI Connector
Cable Length: 25 feet
Overall Dimensions: Washer: 0.62 inch OD x 0.28 inch ID
Notes: Grounded Junction
