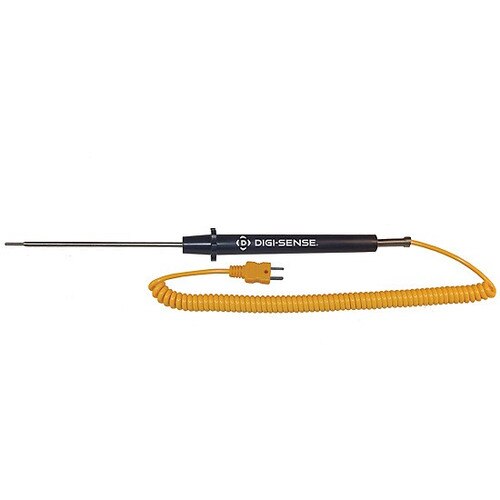

Digi-Sense Type-K, Standard Probe, Mini-Connector, 5" L, .093 Dia Tip, Grounded , 5ft Coil Cord

(0)No Reviews yet
$66.41 $75.90
2 – 9$64.52
10 +$62.62
SKU: WD-08516-55
Item Number: WD-08516-55
Model Number: 08516-55
Manufacturer: Oakton Instruments
Brand: Digi-Sense
MPN: 08516-55
Condition: New


Digi-Sense Type-K Thermocouple Probe, General Purpose, 4.5 inch L x 0.094 inch Dia, Grounded Junction, 5 feet Cable, Mini ANSI Connector (each)

General-Purpose Probes Are Designed For Use with Liquids, Gases and Semisolids

  • Response Time: 1.7 seconds or greater
  • ABS handles provide a light weight design for ease of use along with durability
  • Probe handles feature a strain relief spring that protects the cable connection against damage due to repeated flexing and tugging
  • Each probe comes with a color coded ANSI Mini-Connectors: type K-yellow
Note: The temperature range is for the probe tip only. ABS handles are rated to 220°F (104°C); Mini Connectors are rated to 392°F (200°C).

Product Type: Thermocouple Probe
Brand: Digi-Sense
Class: Type-K
Grade: General Purpose
Material: 316 Stainless Steel
Temperature Range: -250 to 700°F (-200 to 311°C)
Temperature Accuracy: ±3.0°F(1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F(2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F(4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Connections: Mini ANSI Connector
Probe Length: 4.5 inches x 0.094 inch diameter
Cable Length: 5 feet
Overall Dimensions: Sheath: 4.5 inch length x 0.094 inch dia; Handle: 5.5 inch length
Notes: Grounded Junction
