Digi-Sense Type-K, Small Dia Surface Probe, 8" L, Mini-Connector, Exposed, 5ft Coil Cord

(0)No Reviews yet
$74.64 $85.30
4 – 9$72.51
10 +$70.37
SKU: WD-08516-62
Item Number: WD-08516-62
Model Number: 08516-62
Manufacturer: Oakton Instruments
Brand: Digi-Sense
MPN: 08516-62
Condition: New

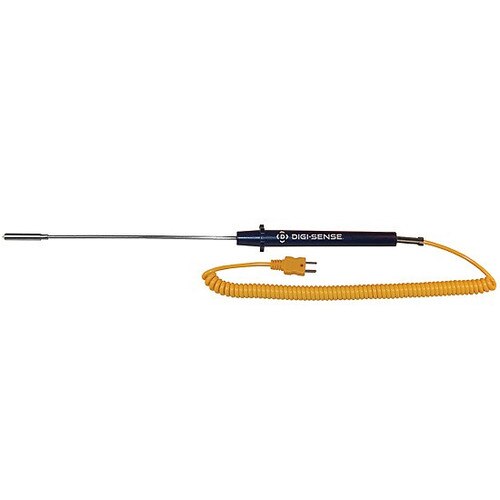

Digi-Sense Type-K Thermocouple Probe, Small Diameter Surface, 8 inch L x 0.25 inch Dia, Exposed Junction, 5 Feet Cable, Mini ANSI Connector (each)

Designed to measure the temperature at the surface without perpetrating the material

  • Response Time: 1.25 seconds or greater
  • Ideal for monitoring flat surfaces such as hot plates, furnaces, or molds
  • Each probe comes with a lower profile tip than other surface probes for hard to reach areas
  • Each probe comes with a color coded ANSI Mini-Connectors: type K-yellow
Note: The temperature range is for the probe tip only. ABS handles are rated to 220°F (104°C); Mini Connectors are rated to 392°F (200°C).

Product Type: Thermocouple Probe
Brand: Digi-Sense
Class: Type-K
Grade: Small Diameter Surface
Material: 316 Stainless Steel Housing with Ceramic, ABS Plastic
Temperature Range: -328 to 1200°F (-200 to 649°C)
Temperature Accuracy: ±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Connections: Mini ANSI Connector
Probe Length: 8 inches
Cable Length: 5 Feet
Overall Dimensions: Sheath: 8 inch length; Handle: 5.5 inch length
Notes: Exposed Junction
