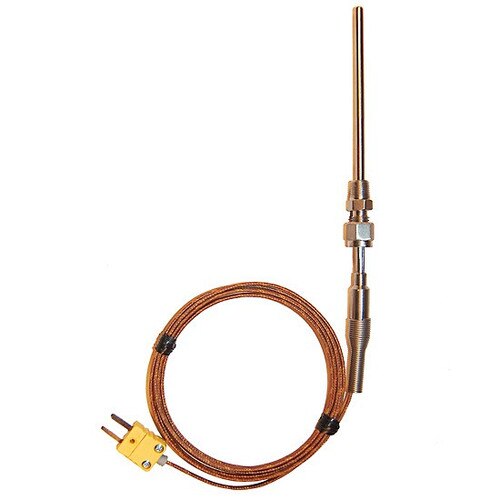

Digi-Sense Type-K Pipe-ftg Probe SS Handle Mini-Connector, 4" L .188" Dia Grounded 6ft Cable

(0)No Reviews yet
$57.23 $65.40
2 – 9$55.59
10 +$53.96
SKU: WD-08516-71
Item Number: WD-08516-71
Model Number: 08516-71
Manufacturer: Oakton Instruments
Brand: Digi-Sense
MPN: 08516-71
Condition: New


Digi-Sense Type-K Thermocouple Probe, Pipe-Fitting, 4 inch L x 0.188 inch Dia, 1/8 inch NPT, Grounded Junction, 6 feet Insulated Wire Cable, Mini ANSI Connector (each)

Thermocouple pipe-fitting probes ideal for high temperature environments or pressurized chambers

  • Response Time: 3 seconds or greater
  • Each Probe comes with a one-time adjustable stainless steel compression fitting with a 1/8 inch NPT process
  • Compression fittings can hold up to 2000 psi once installed
  • Fiberglass insulated cable ideal for continuous high temperature environments
  • Probe features ICONEL 600 sheaths
  • Each probe comes with a color coded ANSI Mini-Connectors: Type K-yellow
Note: The temperature range is for the probe tip only. Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).

Product Type: Thermocouple Probe
Brand: Digi-Sense
Class: Type-K
Grade: Pipe-Fitting
Material: Inconel® 600, 316 Stainless Steel
Temperature Range: -250 to 2012°F (-150 to 1100°C)
Temperature Accuracy: ±3.0°F(1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F(2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F(4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Connections: Mini ANSI Connector
Probe Length: 4 inches length x 0.188 inch diameter
Cable Length: 6 feet
Overall Dimensions: Sheath: 4 inch length x 0.188 inch dia; Handle: 1.5 inch length
Notes: Grounded Junction
