Digi-Sense Type-K Pipe Plug Probe SS 1 / 4" NPT (M) Mini-Connector, 0.5" L Grounded 5ft Cable

(0)No Reviews yet
$60.81 $69.50
2 – 9$59.08
10 +$57.34
SKU: WD-08516-74
Item Number: WD-08516-74
Model Number: 08516-74
Manufacturer: Oakton Instruments
Brand: Digi-Sense
MPN: 08516-74
Condition: New

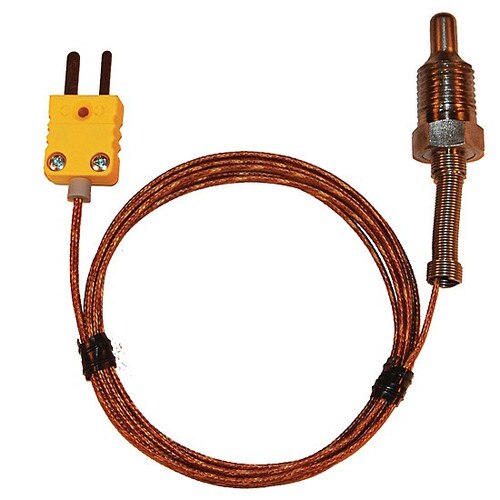

Digi-Sense Type-K Thermocouple Probe, High-Pressure Pipe-Plug, .5 inch L x 0.25 inch Dia, 1/4 inch NPT, Grounded Junction, 5 Feet Cable, Mini ANSI Connector (each)

Pipe-Plug Probes ideal for installation where space is limited

  • Response Time: 2.5 seconds or greater
  • The probe only extends out of the fitting 1/2 inch for a fast response without taking up much space
  • The 1/4 inch NPT fitting can withstand up to 1000psi
  • Fiberglass insulated cable ideal for long term installation in high temperature environments
  • Each probe comes with a color coded ANSI Mini-Connectors: type K-yellow
Note: The temperature range is for the probe tip only. ABS handles are rated to 220°F (104°C); Mini Connectors are rated to 392°F (200°C).

Product Type: Thermocouple Probe
Brand: Digi-Sense
Class: Type-K
Grade: High-Pressure Pipe-Plug
Material: Stainless Steel 304
Temperature Range: -250 to 900°F (-150 to 482°C)
Temperature Accuracy: ±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Max Pressure (PSI): 2000
Connections: Mini ANSI Connector
Probe Length: .5 inches x 0.25 inch diameter
Cable Length: 5 Feet
Overall Dimensions: Sheath: .5 inch length x 0.25 inch dia
Notes: Grounded Junction
