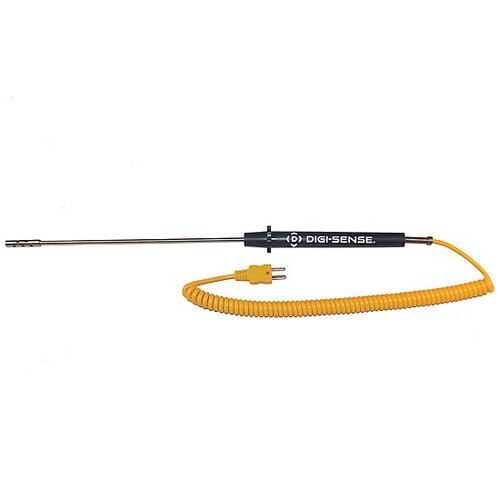

Digi-Sense Type-K, Air / Gas Probe, 8.5" L, Mini-Connector, .156" Dia, Exposed, 5ft Coil

(0)No Reviews yet
$79.19 $90.50
2 – 9$76.93
10 +$74.66
SKU: WD-08516-75
Item Number: WD-08516-75
Model Number: 08516-75
Manufacturer: Oakton Instruments
Brand: Digi-Sense
MPN: 08516-75
Condition: New


Digi-Sense Type-K Thermocouple Probe, General Purpose Air/Gas, 8.5 inch L x 0.156 Dia, Exposed Junction, 5 feet Cable, Mini ANSI Connector (each)

Air/Gas Probes are ideal for measuring a wide range of air temperatures

  • Response Time: 1.75 seconds or greater
  • Exposed Junction is protected by a rigid stainless steel shield minimize error from radiated heat
  • Each probe comes with a color coded ANSI coiled cable: type K-yellow
Note: The temperature range is for the probe tip only. Mini Connectors are rated to 392°F (200°C).

Product Type: Thermocouple Probe
Brand: Digi-Sense
Class: Type-K
Grade: General Purpose Air/Gas
Material: 316 Stainless Steel with Rigid Stainless Steel Shield
Temperature Range: -250 to 1000°F (-150 to 537°C)
Temperature Accuracy: ±3.0°F(1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F(2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F(4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Connections: Mini ANSI Connector
Probe Length: 8.5 inches x 0.156 inch diameter
Cable Length: 5 feet
Overall Dimensions: Sheath: 8.5 inch length x 0.156 diameter; Handle: 5.5 inch length
Notes: Exposed Junction
