Digi-Sense Type-K Bolt-On Probe Mini-Connector, Grounded 5ft Strt 304 SS Armored Fiberglass Cable

(0)No Reviews yet
$49.35 $56.40
4 – 9$47.94
10 +$46.53
SKU: WD-08516-85
Item Number: WD-08516-85
Model Number: 08516-85
Manufacturer: Oakton Instruments
Brand: Digi-Sense
MPN: 08516-85
Condition: New

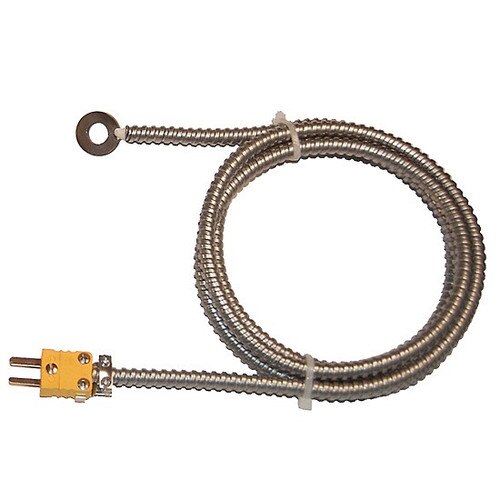

Digi-Sense Type-K Thermocouple Probe, Heavy-Duty Bolt-On, 0.62 inch OD x 0.28 inch ID, Grounded Junction, 5 feet SS Armored Fiberglass Cable, Mini ANSI Connector (each)

Heavy Duty Bolt-On probe for long term installation

  • Response Time: 3 seconds or greater
  • Probe comes with a bolt on washer that is .62 inch OD and .28 inch ID for quick easy installation
  • Once installed, the rugged design allows for continuous long term readings
  • This probe is not recommended for damp or wet conditions
  • Each probe comes with a color coded ANSI coiled cable: type K-yellow
Note: The temperature range is for the probe tip only. Mini Connectors are rated to 392°F (200°C).

Product Type: Thermocouple Probe
Brand: Digi-Sense
Class: Type-K
Grade: Heavy-Duty Bolt-On
Material: 304 Stainless Steel
Temperature Range: 32 to 900°F (0 to 482°C)
Temperature Accuracy: ±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Connections: Mini ANSI Connector
Cable Length: 5 feet
Overall Dimensions: Washer: 0.62 inch OD x 0.28 inch ID
Notes: Grounded Junction
