Digi-Sense Type-J, Comp 90 Angle Surf Probe, 8.5" L, Mini-Connector, Exposed, 5ft Coil

(0)No Reviews yet
$95.81 $109.50
2 – 9$93.08
10 +$90.34
SKU: WD-08517-63
Item Number: WD-08517-63
Model Number: 08517-63
Manufacturer: Oakton Instruments
Brand: Digi-Sense
MPN: 08517-63
Condition: New

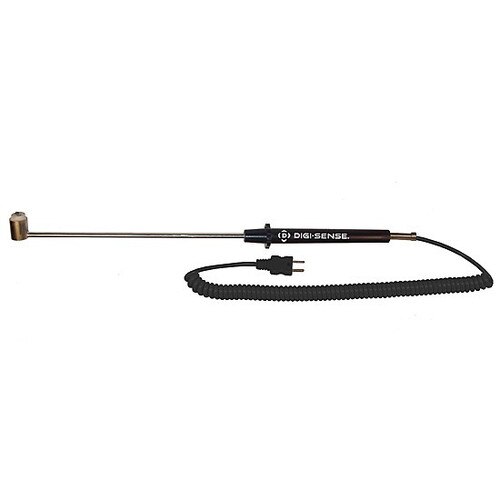

Digi-Sense Type-J Thermocouple Probe, Compact 90 Degree Angle Surface, 8.5 inch L x 0.63 Dia, Exposed Junction, 5 Feet Cable, Mini ANSI Connector (each)

Designed to measure the temperature at the surface without perpetrating the material

  • Response Time: 1.25 seconds or greater
  • Ideal for monitoring flat surfaces such as hot plates, furnaces, or molds
  • Each probe comes with a lower profile tip than other surface probes for hard to reach areas
  • Each probe comes with a color coded ANSI Mini-Connectors: type J-black
Note: The temperature range is for the probe tip only. ABS handles are rated to 220°F (104°C); Mini Connectors are rated to 392°F (200°C).

Product Type: Thermocouple Probe
Brand: Digi-Sense
Class: Type-J
Grade: Compact 90 Degree Angle Surface
Material: 316 Stainless Steel with Stainless Steel housing, ABS Plastic
Temperature Range: 32 to 1200°F (0 to 649°C)
Temperature Accuracy: ±5.9°F (±3.3°C), or ±0.4% of reading above 32°F (0°C); ±4.0% of reading below 32°F (0°C)
Connections: Mini ANSI Connector
Probe Length: 8.5 inches x 0.63 inch diameter
Cable Length: 5 Feet
Overall Dimensions: Sheath: 8.5 inch length x 0.63 dia; Handle: 5.5 inch length
Notes: Exposed Junction
