Digi-Sense Type-J Hvy-Dty Ind SS Handle Mini-Connector, 36" L .188 Dia Grounded 3ft Armor Cable

(0)No Reviews yet
$103.91 $118.75
4 – 9$100.94
10 +$97.97
SKU: WD-08517-80
Item Number: WD-08517-80
Model Number: 08517-80
Manufacturer: Oakton Instruments
Brand: Digi-Sense
MPN: 08517-80
Condition: New

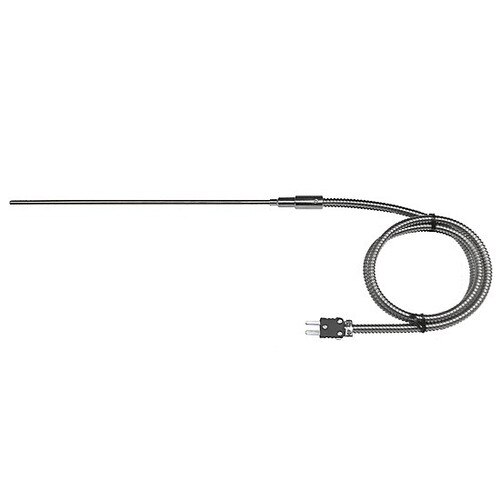

Digi-Sense Type-J Thermocouple Probe, Heavy-Duty Industrial Penetration, 36 inch L x 0.188 inch Dia, Grounded Junction, 3 feet SS Armored Fiberglass Cable, Mini ANSI Connector (each)

Heavy-Duty industrial penetration probes are designed for soft and semi-soft materials

  • Features ICONEL®600 sheath
  • Response Time: 2 seconds or greater
  • Probe comes with stainless steel handle
  • Probe comes with a color coded ANSI mini connector: type J-black
Note: The temperature range is for the probe tip only. Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).

Warning: This product is not approved or intended for, and should not be used for medical, clinical, surgical or other patient oriented applications.

Product Type: Thermocouple Probe
Brand: Digi-Sense
Class: Type-J
Grade: Heavy-Duty Industrial Penetration
Material: Inconel® 600, Stainless Steel
Temperature Range: 32 to 1400°F (0 to 760°C)
Temperature Accuracy: ±5.9°F (±3.3°C), or ±0.4% of reading above 32°F (0°C); ±4.0% of reading below 32°F (0°C)
Connections: Mini ANSI Connector
Probe Length: 36 inches x 0.188 inch diameter
Cable Length: 3 feet
Overall Dimensions: Sheath: 36 inch length x 0.188 inch diameter; Handle: 5.5 inch length
Notes: Grounded Junction
